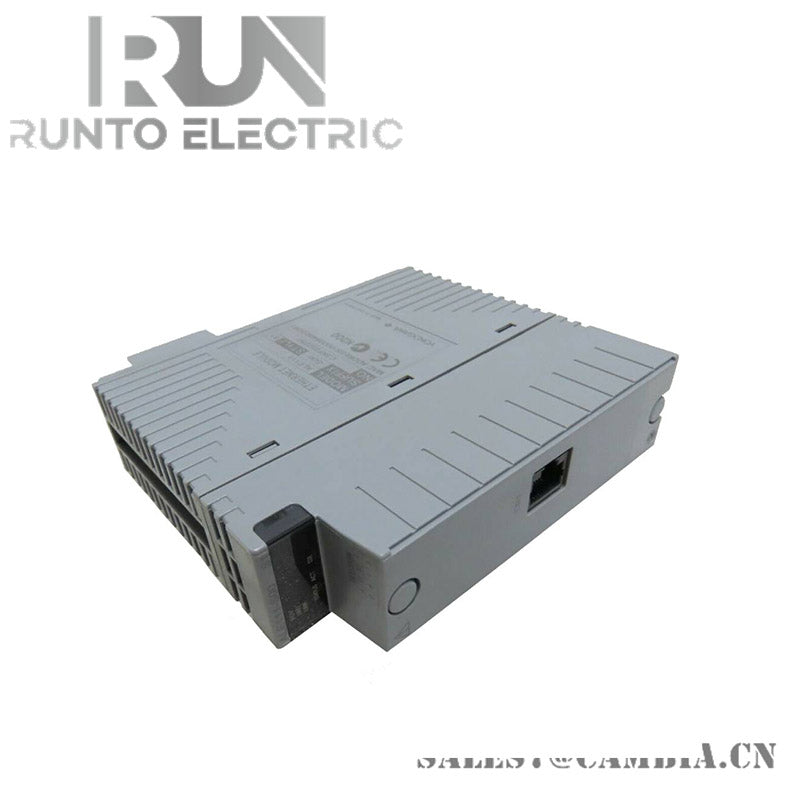

YOKOGAWA NFAI141-S50 ANALOG INPUT MODULE BRAND NEW

Yokogawa Analog Input Module NFAI141-S50 is a module designed to receive 4 to 20 mA DC or 1 to 5 V DC normalized signals from 2-wire/4-wire transmitters.

Standard Specifications:

• Input Channels: 16 non-isolated channels
• Input Signals: 4 to 20 mA, 1 to 5 V, or -10 to 10 V
• Input Resistance: 250 Ω (power ON), 500 kΩ (power OFF)
• Accuracy: ±0.1% of full scale
• Data Refresh Cycle: 10 ms
• Input Step Response Time: 100 ms
• Transmitter Power Supply: 22.8 to 26.4 V (output current limit: 27 mA)
• Temperature Drift: Max. ±0.01%/°C
• Maximum Current Consumption: 310 mA (5 V DC), 450 mA (24 V DC)
• Weight: 0.2 kg
• External Connection: Pressure clamp terminal, MIL connector cable
• HART Communication: Available

Models and Suffix Codes:

• Model: NFAI141 (Analog Input Module, 4 to 20mA, 16-channel, Non-Isolated)
• Suffix Codes:
  • -S: Standard type
  • -H: With HART Communication
  • 5: With no explosion protection
  • E: With explosion protection
  • 0: Basic type
  • 1: With ISA Standard G3 option
• Option Codes:
  • /A4S00: With Pressure Clamp Terminal Block for Analog
  • /A4S10: With Pressure Clamp Terminal Block for Analog (surge absorber)
  • /CCC01: With Connector Cover for MIL Cable
