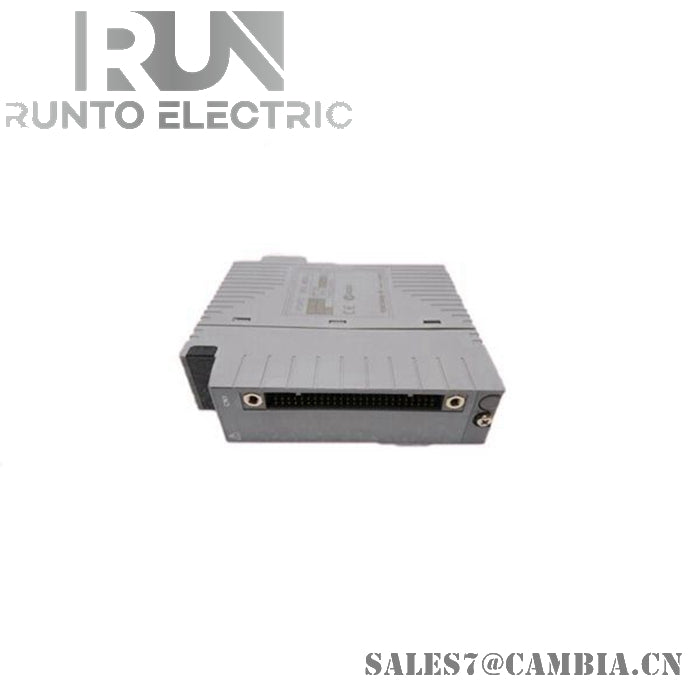

Yokogawa ADV151-E00 Digital Input Module (32-channel, 24 V DC, Isolated)

Technical Specifications

• Model: ADV151-P/ADV151-E
• Number of Input Channels: 32
• Rated Input Voltage (2): 24 V DC (sink/source)
• Input ON Voltage: 18 to 26.4 V DC
• Input OFF Voltage: 5.0 V DC or less
• Input Current (at Rated Input Voltage): 4.1 mA + 20%/channel
• Maximum Allowable Input Voltage: 30.0 V DC
• Withstanding Voltage:
  • Between input signal and system: 2 kVA
  • Between commons: 500 VAC, For 1 min
• Functions:
  • Status input: Function for detecting ON/OFF status
  • Pushbutton input: Function for counting the pushbutton edge
  • SOE input: Function for capturing the SOE data
• Input Response Time: 8 ms or less (for status input)
• Minimum ON Detection Time: 20 ms (for pushbutton input)
• Maximum ON/OFF Cycle: 25 Hz (for pushbutton input)
• Maximum Current Consumption: 500 mA (5 V DC)
• Weight: Approx. 0.30 kg
• External Connection: Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable
• Notes:
  • 1: The model number is ADV151-P for the sink type and ADV151-E for the source type.
  • 2: The rated input voltage is 24 V DC, but the module can operate with an input voltage of 18 to 26.4 V DC
