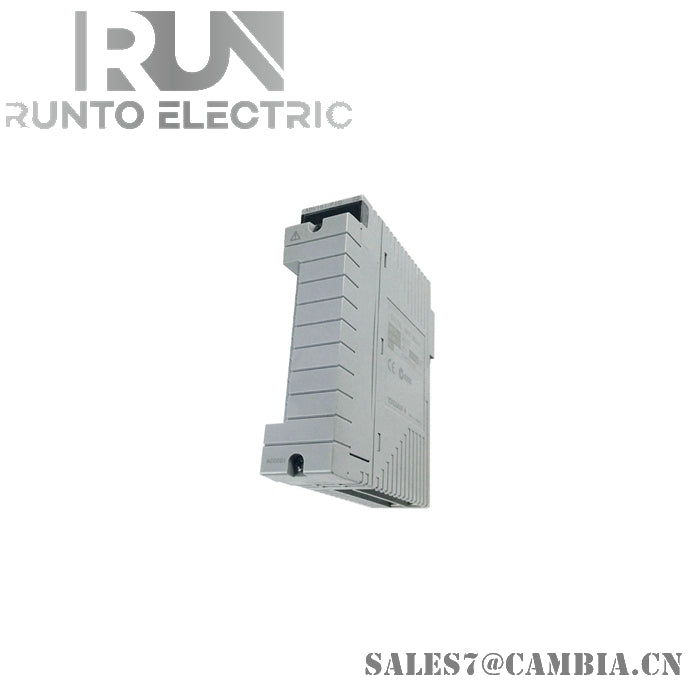

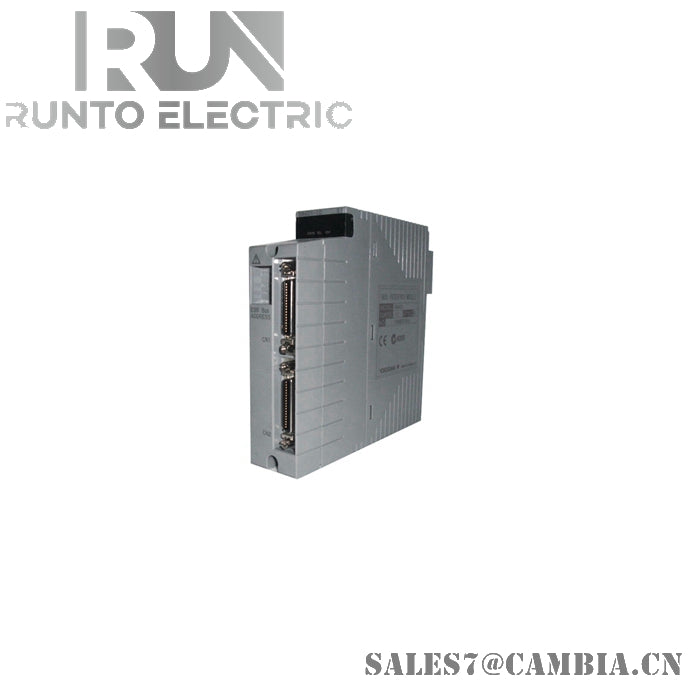

Yokogawa AAM10 Current/Voltage Input Module

Description:

The AAM10 module from Yokogawa's N-IO series is a high-performance, modular device designed to handle both 4-20 mA current signals and 1-5 V voltage signals. This flexibility makes it an excellent choice for a wide range of industrial applications, including process control and instrumentation.

Specifications:

• Model: AAM10
• Input Signal:
  • Voltage: 1 to 5 V DC
  • Current: 4 to 20 mA DC
• Input Resistance:
  • Voltage: 1 MΩ (100 kΩ at power-down)
  • Current: 250 Ω
• Allowable Input:
  • Voltage: -10 to 30 V DC
  • Current: 40 mA DC or less
• Transmitter Power Supply: 25.0 to 25.5 V DC (Output current limit: 60 mA DC or less)
• Accuracy Rating:
  • Voltage Input: ±4 mV
  • Current Input: ±16 µA
• Effect of Ambient Temperature Change:
  • Voltage Input: ±8 mV
  • Current Input: ±32 µA
• Data Update Period: 50 ms
• Current Consumption: 250 mA or less (5.0 V DC)
• Signal Insulation: Input signals are insulated from the system
• Withstanding Voltage: 1500 V AC/min
• Installation: Installed in the I/O Module Nest, wired to the terminal of the I/O Module Nest with M4 screws
