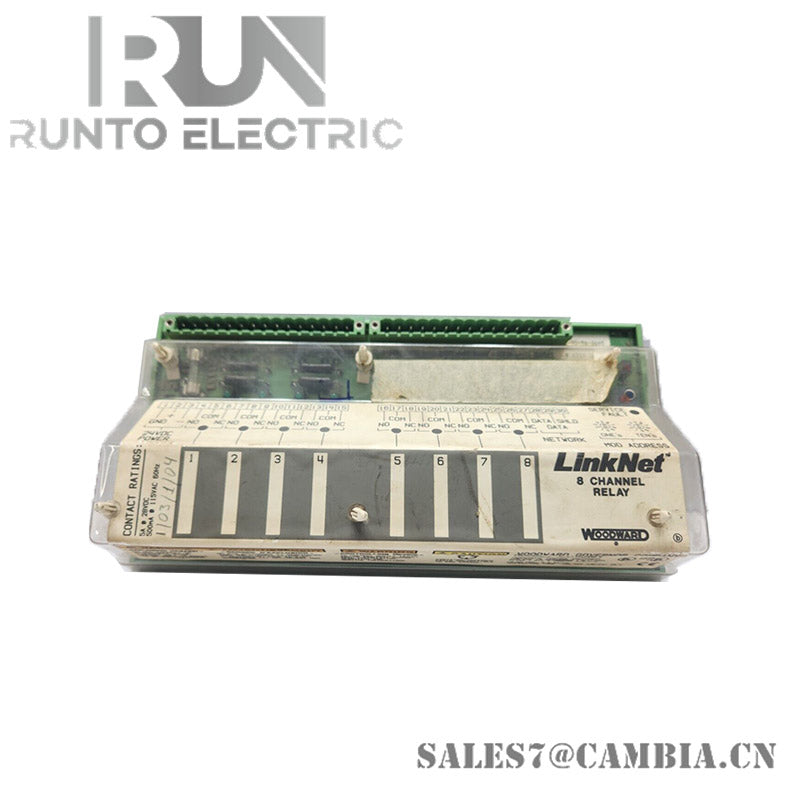

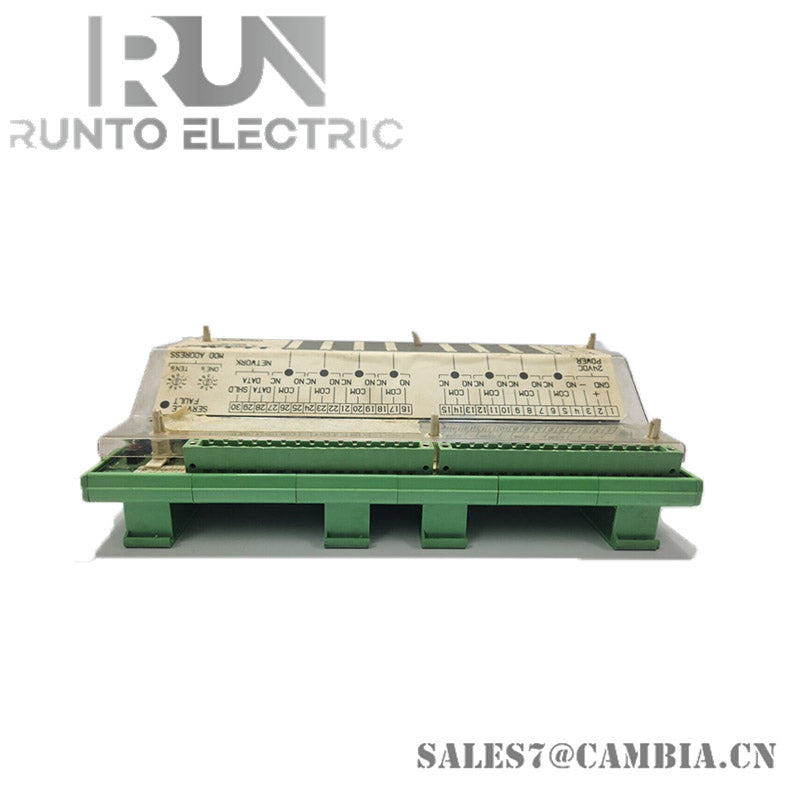

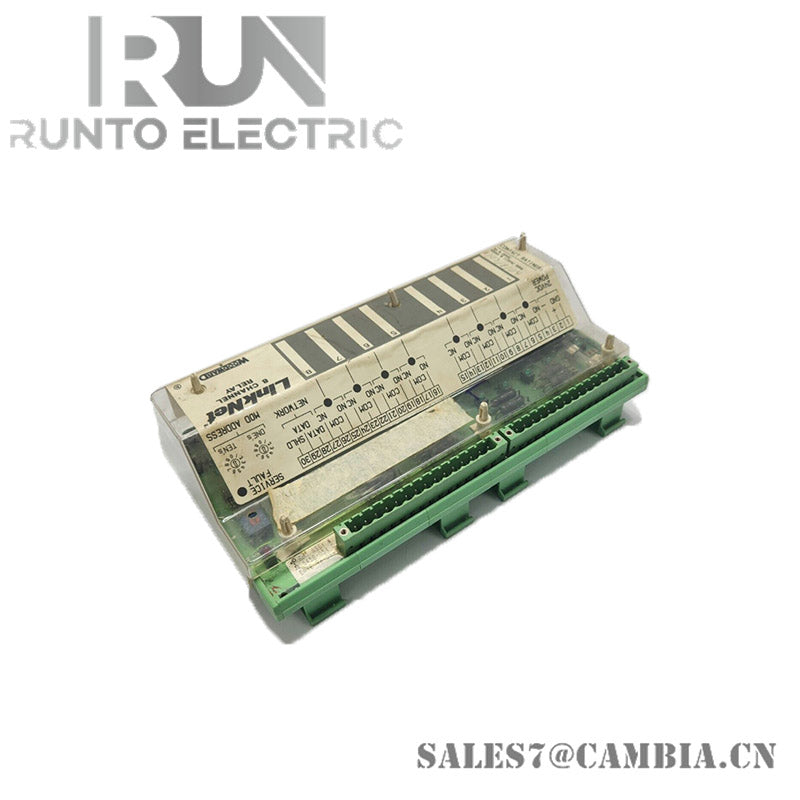

Woodward 9905-973 Linknet 8 Channel Relay Module

Description

The 9905-973 is a Linknet 8 Channel Relay Module manufactured and designed by Woodward, specifically used in Gas Turbine Control Systems. This electronic device allows you to control multiple electrical devices using digital signals. It is typically employed in projects that require remote or programmatic switching of various devices. The module consists of eight individual relays, each capable of switching a separate electrical circuit. A relay is an electromechanical switch that enables control of a high-power circuit using a low-power signal.

Specifications

• Part Number: 9905-973
• Manufacturer: Woodward
• External Dimensions: 8.75" W x 14.625" D x 5.375" H
• Features: Reset Button, Functional Fault LED
• Input Voltage Rating: 18-32VDC, 27.4A
• Power Supply Input: (18 to 32) V (dc)
• Max Nodes per Bus: 64 (0 to +70 °C)
• Network to I/O Channel: 277 V (ac)
• Potential Voltage Range: 80-150 V
• Signal to Actuator: 0 to 200 mA
• Maximum Stub Length: 300 mm (+40 to +85 °C)
• Network Isolation: 0–60 Hz: 1000 Vrms
• Power Source: 95-130 V
• Speed Sensing: 1 to 30 Vac
• Power Consumption: 14 W
• Output Voltage Rating: 24VDC, 16A
• Availability: In Stock
• Country of Origin: United States
• Operating Temperature: 55°C
• Weight: 9.11 lbs
