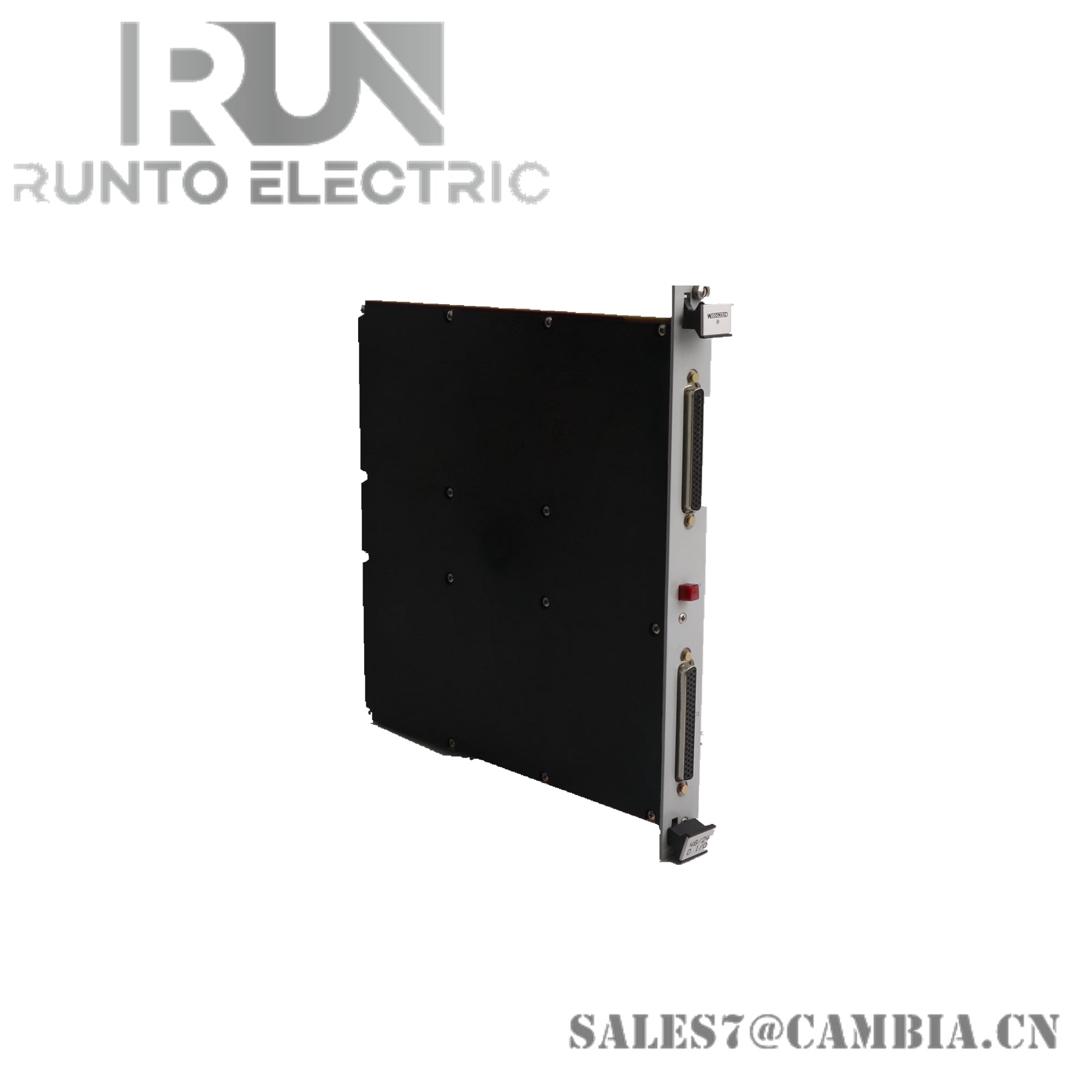

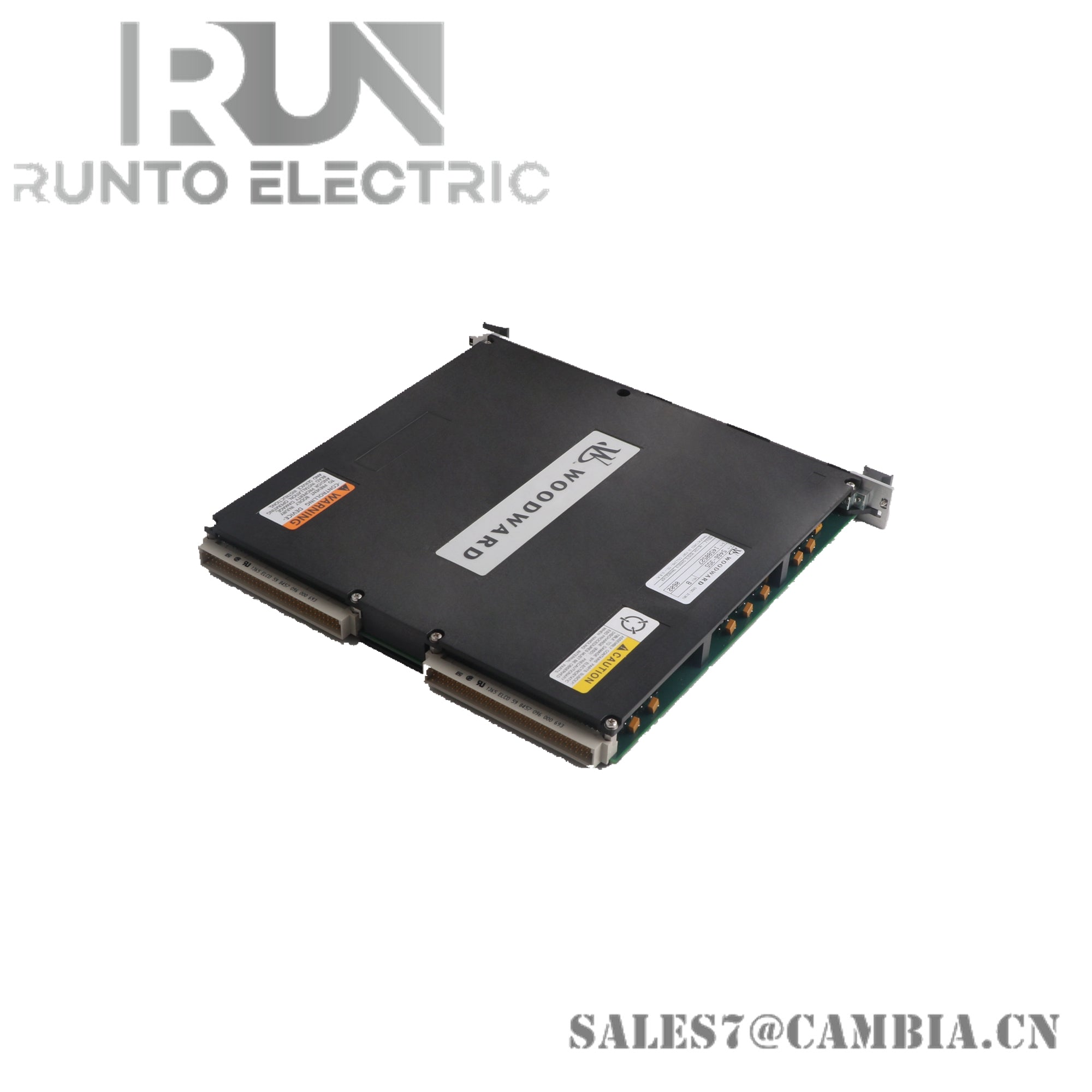

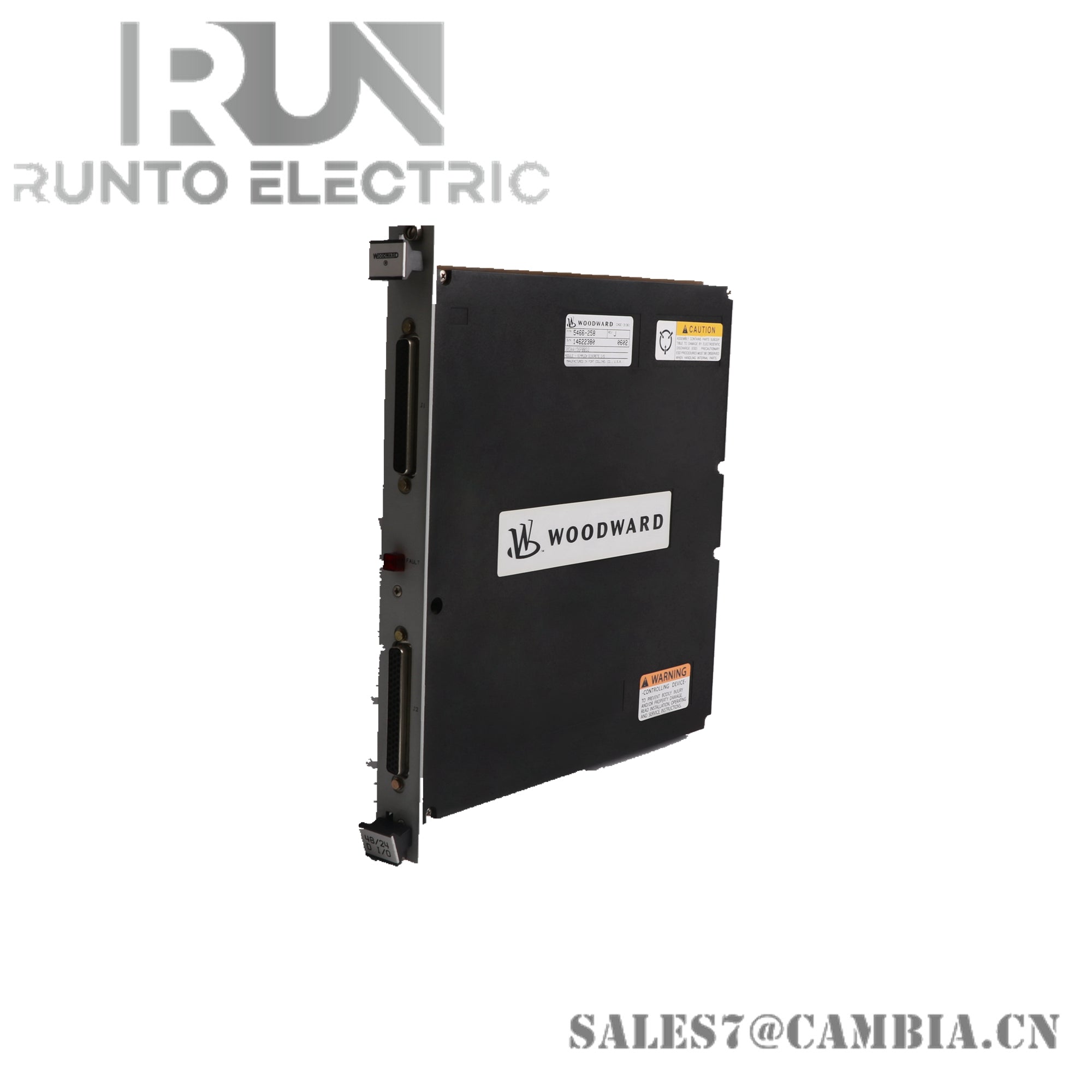

Woodward 5501-381 TMR Power Supply Unit

Description

The 5501-381 board, manufactured by Woodward Inc., is part of the MicroNet Digital Control series, designed as a triple modular redundant (TMR) power supply unit. Operating at 220 VAC, this board ensures stable power delivery with a maximum input power of 1250 VA. One unique feature of the 5501-381 is its 10 A time delay input breaker/power fuse, which differentiates it from other TMR power supply boards.

Technical Specifications

• Model: 5009/MicroNet Triple Module Redundant (TMR) Power Supply
• Weight: 2.2 kg (48 lbs) in Chassis
• Product Type: High Voltage AC
• Operating Range: 47 to 63 Hz
• Chassis: MicroNet TMR
• Maximum Input Power: 1250 VA
• Max Input Current: 6.7 A
• Manual: 26167V1 and 26166V2
• Input Voltage: 220 VAC
• Holdup Time: 1 cycle @ 220 VAC
