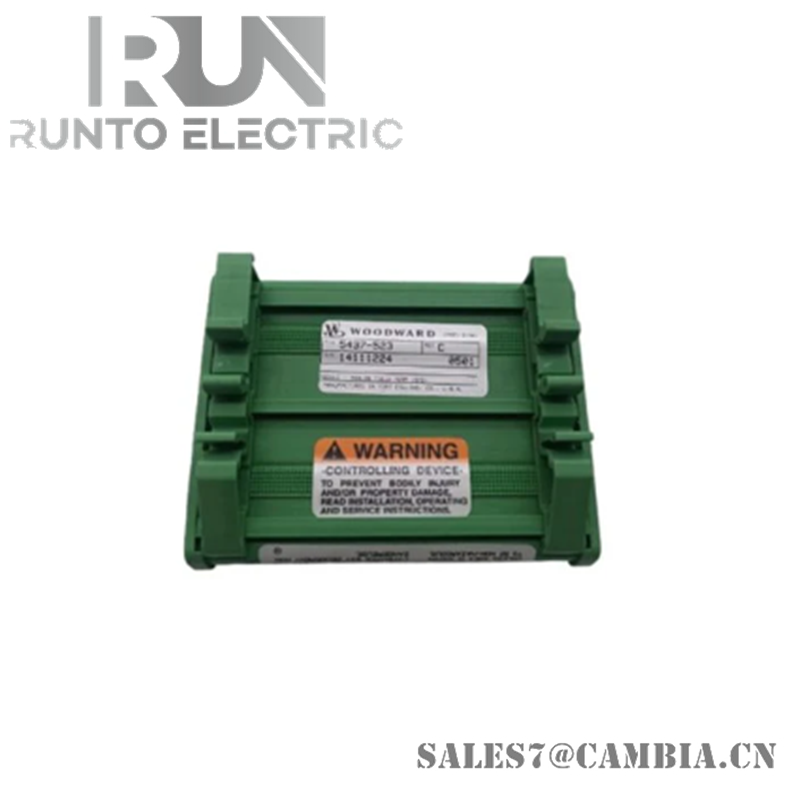

Woodward 5437-524 Analog Field Terminal Module

Description:

The Woodward 5437-524 Field Terminal Module is designed to handle continuous analog signals, making it ideal for applications that require precise monitoring, control, and integration. It is widely used in industrial systems for interfacing field devices like sensors, transmitters, and actuators with control systems. This module features analog input and output channels, signal conditioning circuits, and is equipped with a 37-pin connector for flexible wiring configurations.

Specifications:

• Part Number: 5437-524
• Manufacturer: Woodward
• Product Type: Field Terminal Module
• Weight: 0.53 lbs (240 g)
• Country of Manufacture: United States (USA)

Key Features:

• Analog Input Channels: Converts signals from field devices (e.g., sensors or transmitters) into digital signals for processing by control systems.
• Analog Output Channels: Converts digital control signals from the system into analog signals to drive actuators or other control devices.
• Signal Conditioning Circuits: Includes amplification, filtering, isolation, and linearization of analog signals to ensure reliable performance.

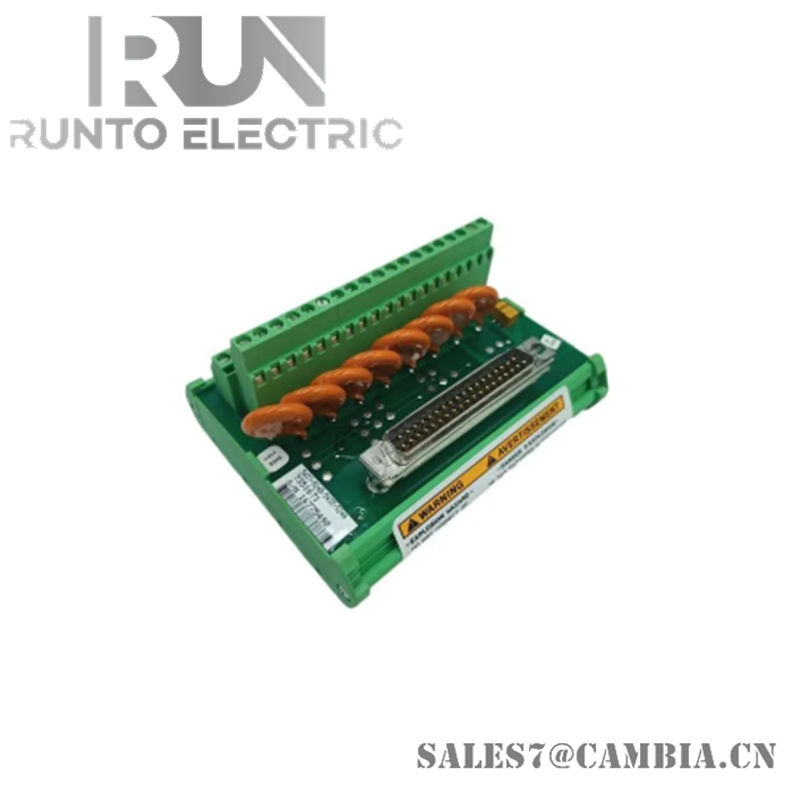

• 37-Pin Connector: Provides flexibility in wiring configurations, accommodating various field wiring setups.
• Rugged Enclosure: Built to withstand harsh environmental conditions, ensuring reliable operation in challenging industrial environments.
