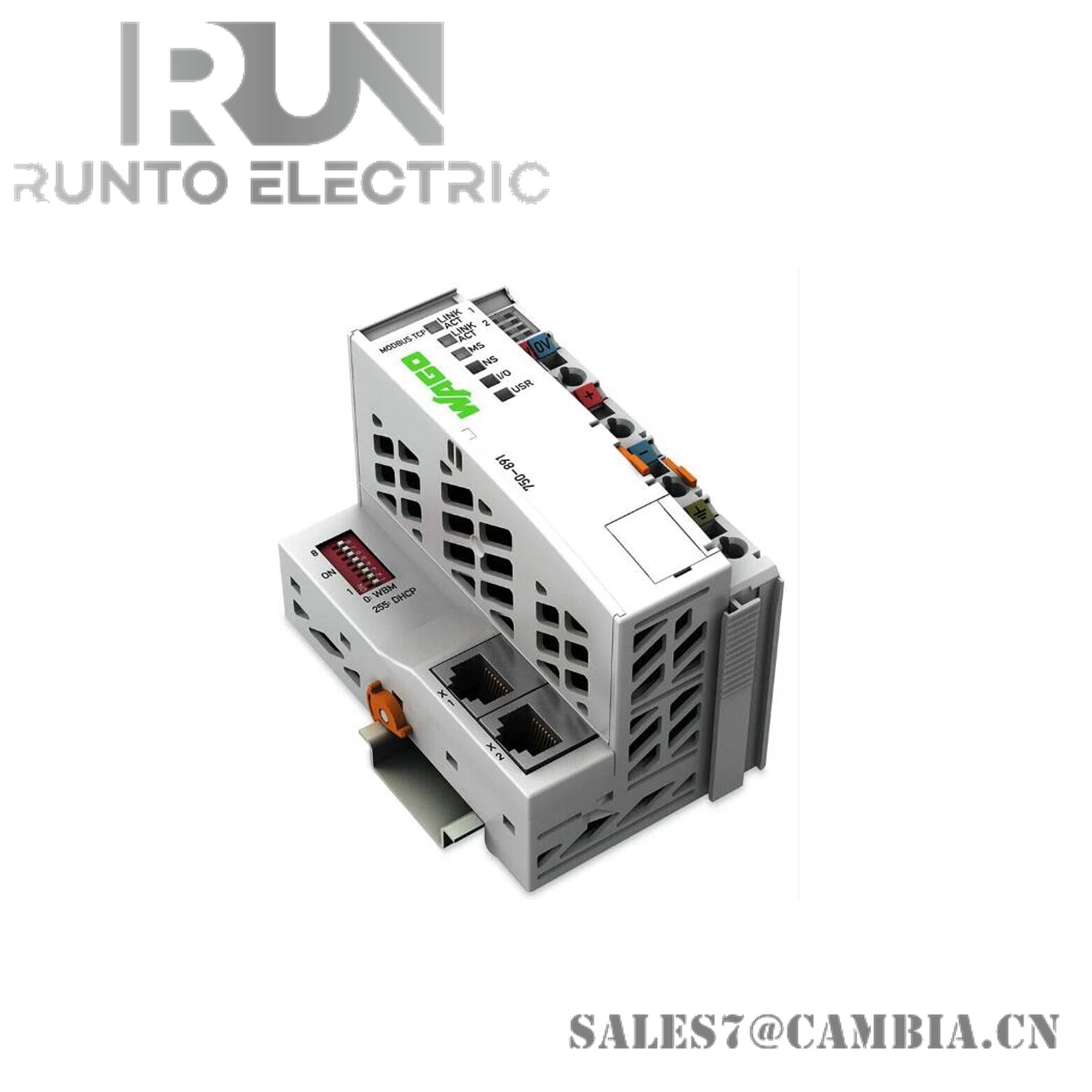

Wago 750-891 Controller Modbus TCP

Brand:	WAGO	Item No:	750-891
Type:	PLC	Warranty:	1 year
Service:	One Year Warranty	Quality:	100% New And Origin
Delivery Time:	1-3 Days	Condition:	In Stock
Product information:	The Modbus TCP Controller can be used as a programmable controller within ETHERNET networks in conjunction with the WAGO I/O System. The controller detects all connected I/O modules and creates a local process image. This process image may include a mixed arrangement of analog (word-by-word data transfer) and digital (bit-by-bit data transfer) modules. Two ETHERNET interfaces and an integrated switch allow the fieldbus to be wired in a line topology, eliminating the need for additional network devices, such as switches or hubs. Both interfaces support autonegotiation and Auto-MDI(X). The DIP switch configures the last byte of the IP address and may be used for IP address assignment. The controller is designed for fieldbus communication in Modbus® networks. It also supports a wide variety of standard ETHERNET protocols (e.g., HTTP(S), BootP, DHCP, DNS, SNTP, (S)FTP, SNMP). An integrated Webserver provides user configuration options, while displaying the controller's status information. The IEC 61131-3 programmable controller is multitasking-capable and features a capacitor-backed RTC.



Communication Modbus (TCP, UDP)
ETHERNET protocols HTTP(S)
BootP
DHCP
DNS
SNTP
FTP(S)
SNMP
Visualization Web-Visu
CPU 32 bits
Programming languages per IEC 61131-3 Instruction List (IL)
Ladder Diagram (LD)
Function Block Diagram (FBD)
Continuous Function Chart (CFC)
Structured Text (ST)
Sequential Function Chart (SFC)
Programming environment WAGO-I/O-PRO V2.3 (based on CODESYS V2.3)
Configuration options WAGO-I/O-CHECK
Web-Based Management
CODESYS Library
Baud rate (communication/fieldbus 1) 10/100 Mbit/s
Baud rate 10/100 Mbit/s
Transmission medium (communication/fieldbus) Twisted Pair S-UTP; 100 Ω; Cat. 5; 100 m maximum cable length
Transmission performance Class D per EN 50173
Program memory 4 MB
Data memory 4 MB
Non-volatile software memory 32kbyte
Number of modules per node (max.) 250
Number of modules without a bus extension (max.) 64
Input and output process image (fieldbus) max. 1020 words/1020 words
Indicators LED (LINK/ACT) green: Network connection via ports 1 … 2; LED (MS, NS) red/green: Status of node, network; LED (I/O, USR) red/green/orange: Local data bus status, status programmable by user; LED (A, B) green: System power supply status, field supply
Supply voltage (system) 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP® connection)
Input current (typ.) at nominal load (24 V) 500mA
Power supply efficiency (typ.) at nominal load (24 V) 90%
Current consumption (5 V system supply) 390mA
Total current (system supply) 1,700mA
Supply voltage (field) 24 VDC (-25 … +30 %); via power jumper contacts
Current carrying capacity (power jumper contacts) 10A
Number of outgoing power jumper contacts 3
Isolation 500 V system/field
