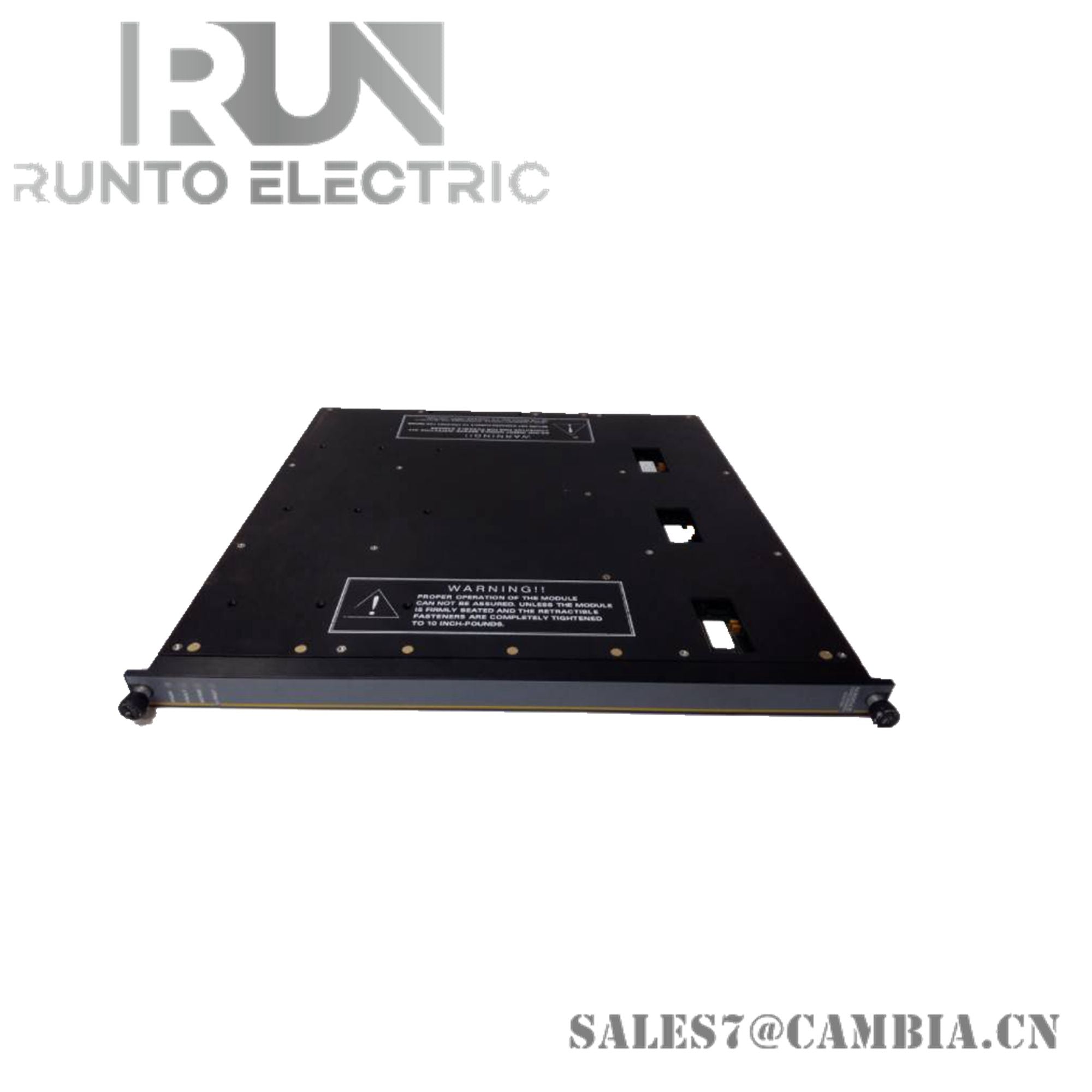

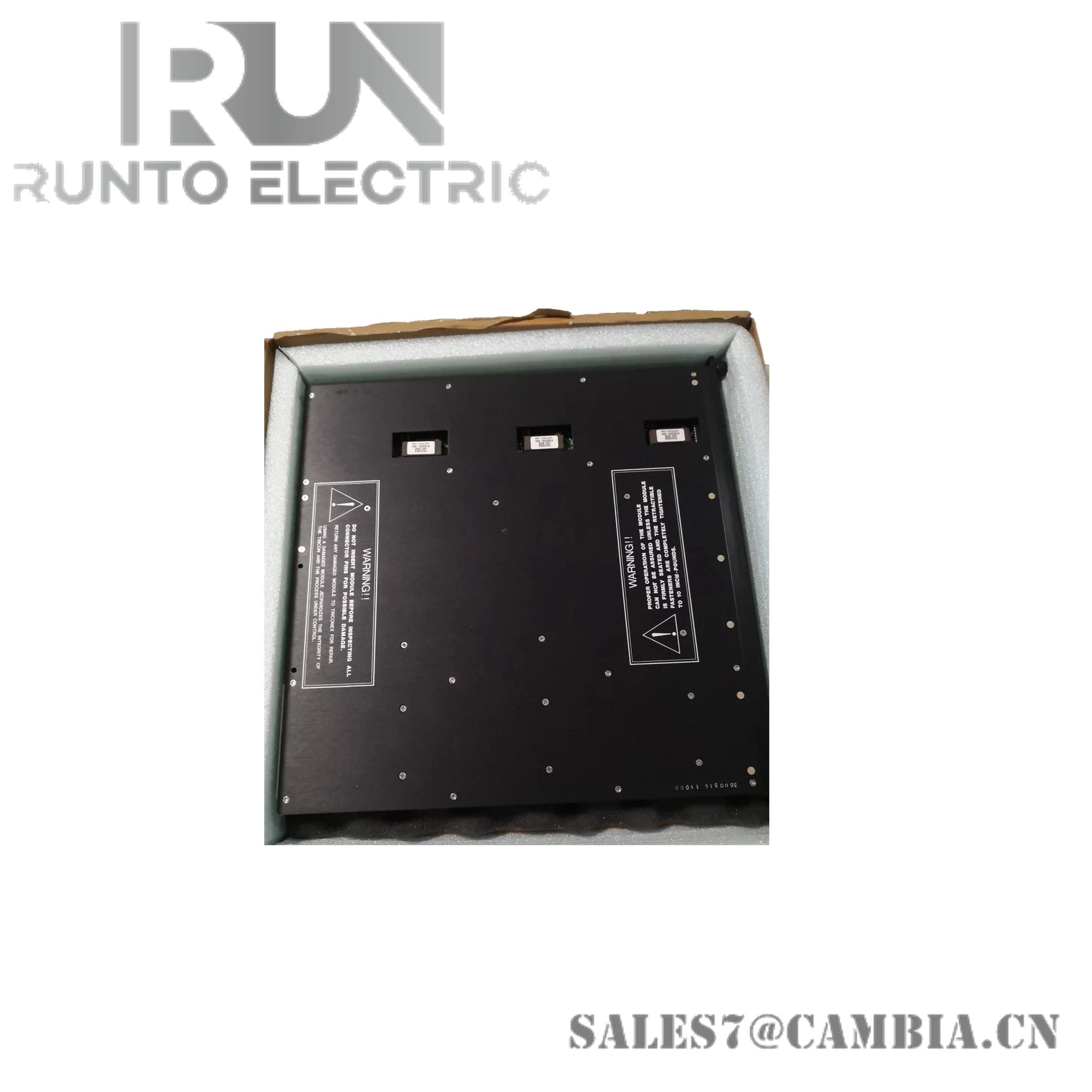

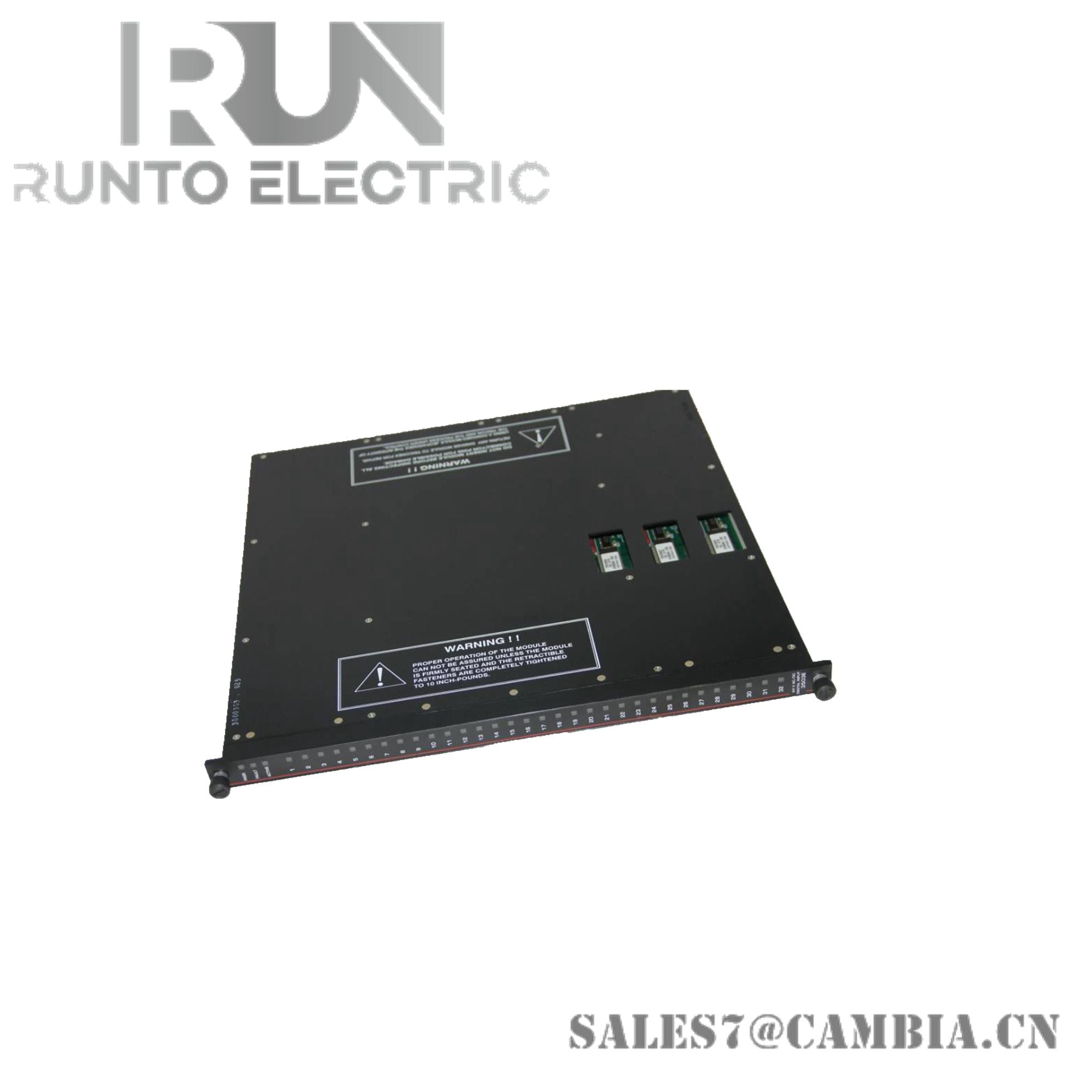

3805E | Triconex | Analog Output Module

Technical Specifications：

• Manufacturer: Triconex

• Product No.: 3805E

• Product Type: Analog Output Module

• Type: TMR (Triple Modular Redundant)

Output Specifications:

• Output Current Range: 4-20 mA output (+6% overrange)
• Number of Output Points: 8
• Resolution: 12 bits
• Output Accuracy: <0.25% (within the range of 4-20 mA) of FSR (0-21.2 mA), at temperatures from 32° to 140° F (0° to 60° C)
• Over-Range Protection: +42.5 VDC, continuous
• Switch Time on Leg Failure: < 10 ms, typical

Isolation and Coupling:

• Isolated Points: No, commoned return, DC coupled

Physical Characteristics:

• Color Code: Pea Green
• Weight: 4 kg
• Dimensions: 9 cm x 9 cm x 9 cm
• Shipping Weight: 10 kg
