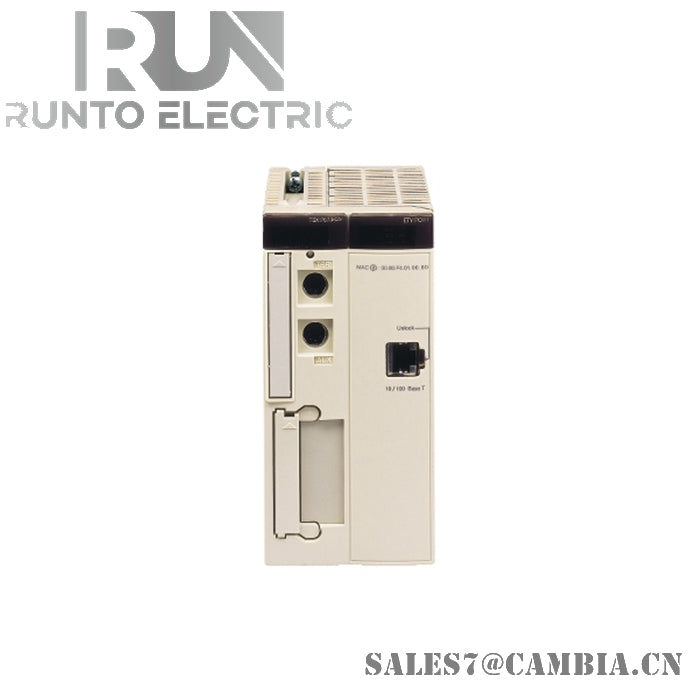

Schneider TSXP572634M PLC Module

Manufacturer: SCHNEIDER ELECTRIC
Part Number: TSXP572634M
Product or Component Type: Unity processor
Software Designation: Unity Pro
Concept: Transparent Ready

Specifications:

• Number of Racks:
  • 16 with 4/6/8 slots
  • 8 with 12 slots
• Discrete I/O Processor Capacity: 1024 I/O
• Analogue I/O Processor Capacity: 80 I/O
• Number of Application Specific Channels: Up to 24
• Number of Process Control Channels: Up to 10 (up to 30 simple loops)
• Integrated Connection Type:
  • Ethernet TCP/IP RJ45
  • Non-isolated serial link with 2 female mini DIN RS485 at 19.2 kbit/s
• Ethernet Port: 10BASE-T/100BASE-TX
• Memory Description:
  • Internal RAM (with PCMCIA card): 160 kB data, 768 kB program
  • Internal RAM (without PCMCIA card): 160 kB program and data
  • PCMCIA card: Additional 16384 kB data storage
• Application Structure:
  • 1 fast task
  • 1 master task
  • 64 event tasks
• System Overhead: 0.3 ms for fast task, 1 ms for master task
• Marking: CE
• Current Consumption: 1650 mA at 5 V DC
• Module Format: Double
• Product Weight: 0.042 kg
• Shipping Weight: 2 kg
