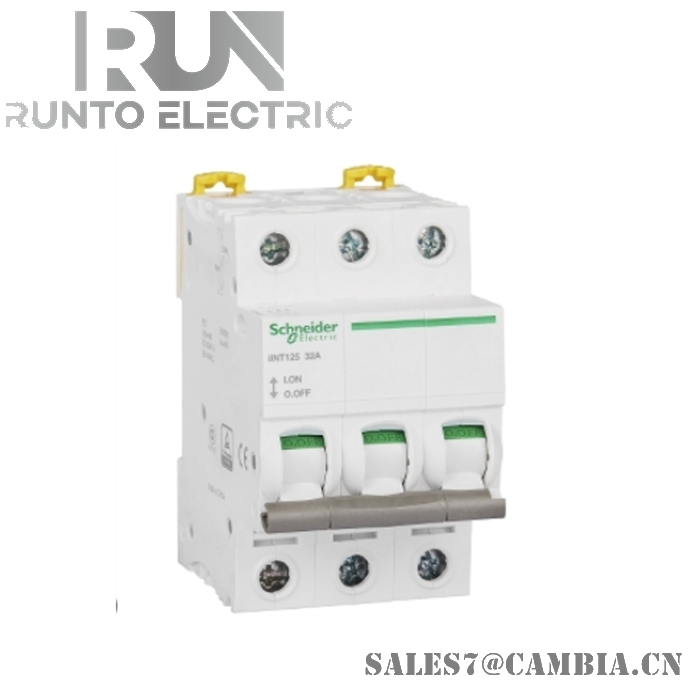

Schneider iINT125 32A Miniature Isolation Switch

Main Information

• Product Type: Load Switch
• Product Short Name: iSW
• Switch Application: Isolation
• Control: Handle
• Poles: 4P
• Utilization Category: AC-22A
• Isolation Function: Applicable

Additional Information

• Rated Operational Current [Ie]: 32 A at 400 V AC 50/60 Hz
• Rated Operational Voltage [Ue]: 415 V AC 50/60 Hz
• Making Capacity [Icm]: 4.2 kA for a single isolating switch
• Rated Short-Time Withstand Current [Icw]: 1260 A for 1 s according to IEC 60947-3
• Rated Insulation Voltage [Ui]: 500 V AC 50/60 Hz
• Rated Impulse Withstand Voltage [Uimp]: 6 kV according to IEC 60947-3

Control Type

• Control Type: Handle
• Local Signaling: ON/OFF indicator
• Contact Position Indicator: Yes

Mounting and Compatibility

• Mounting Type: Fixed
• Mounting Method: DIN rail
• Busbar Compatibility: Compatible with top or bottom wiring

Dimensions

• Width (in 9 mm increments): 8
• Height: 94 mm
• Width: 72 mm
• Depth: 78.5 mm

Lifespan

• Mechanical Life: 20,000 operations
• Electrical Life: 15,000 operations

Wiring Capacity

• Wiring Capacity:
  • Tunnel type terminals for top or bottom wiring 1…35 mm² single-core hard wire, applicable for 1 cable without wiring terminal
  • Tunnel type terminals for top or bottom wiring 1…25 mm² soft wire (optional) with or without ferrule, applicable for 1 cable
• Stripping Length: 14 mm
• Tightening Torque: 3.5 N.m

Environmental Specifications

• Standards Compliance: GB 14048.3, IEC 60947-3
• Product Certifications: CCC, CE
• IP Protection Level: IP20 conforming to IEC 60529
• Pollution Degree: 3 according to IEC 60947-3
• Humidity Resistance: 2
• Relative Humidity: 95% at 55 °C
• Operating Temperature: -25…60 °C
• Storage Temperature: -40…85 °C
