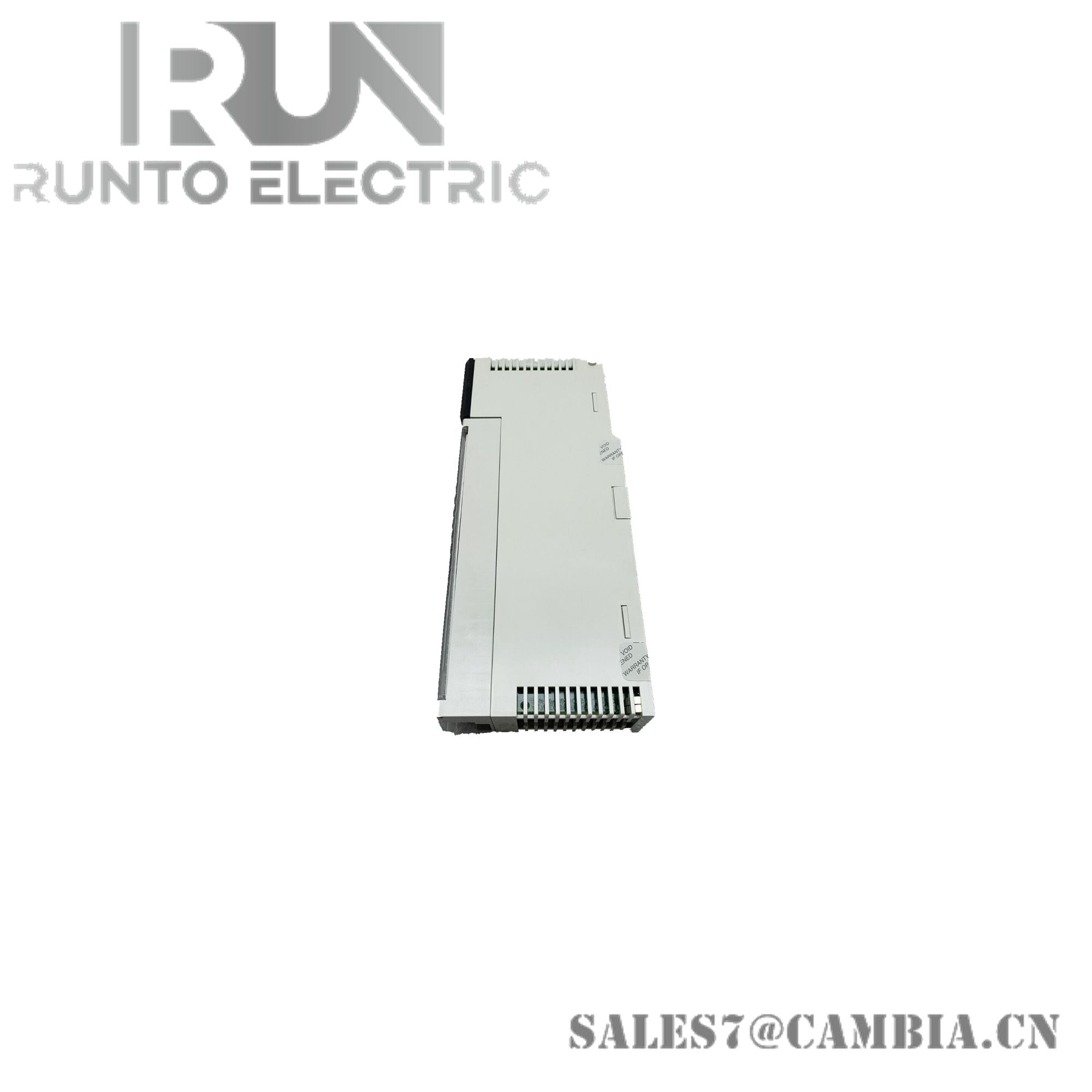

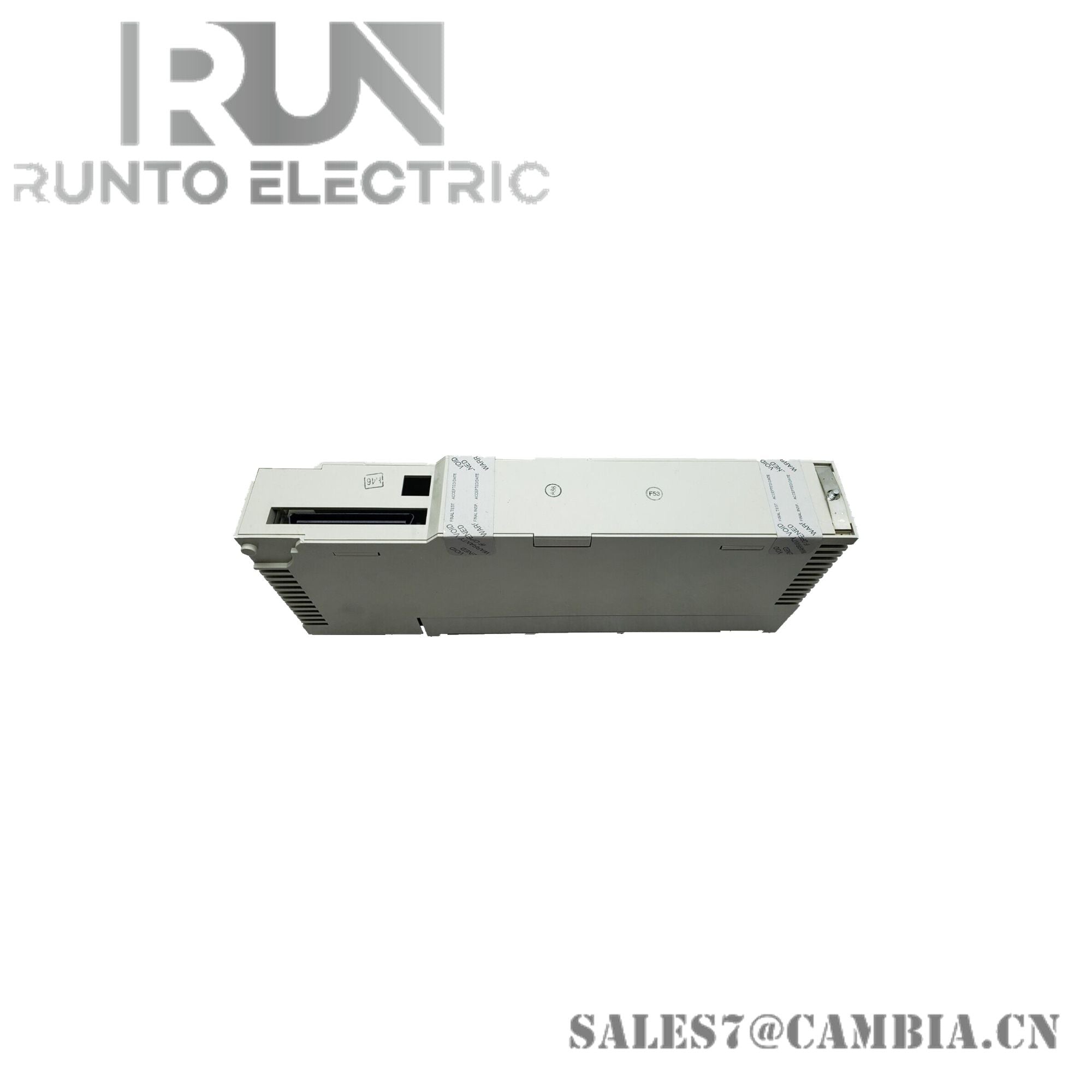

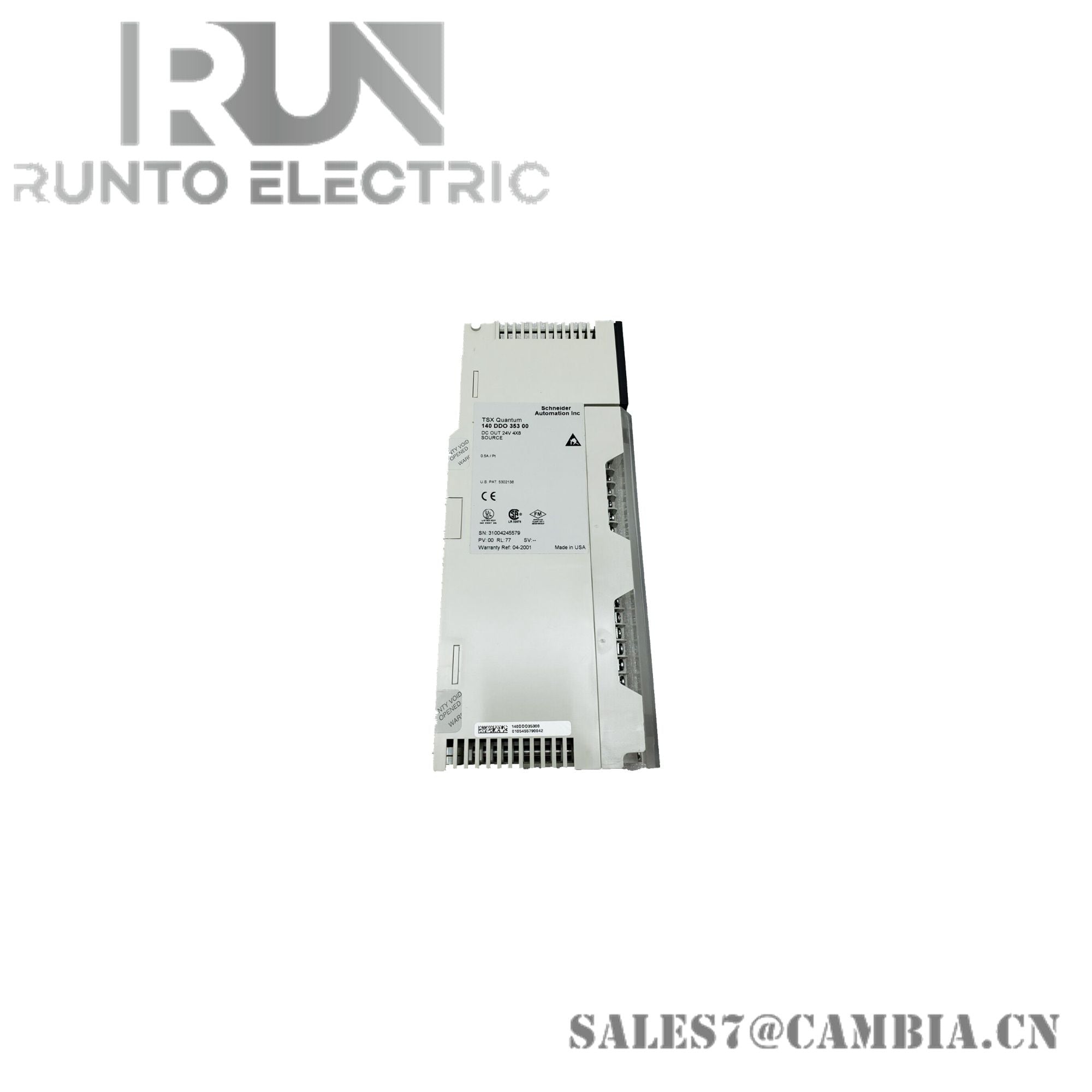

Schneider 140DDO35300 Discrete Output Module

Specifications

• Discrete Output Voltage: 24 V DC
• Output Voltage Limits: 19.2 – 30 V
• Maximum Load Current: 16 A per module, 4 A per group
• Surge Current: 5 A for 0.0005 s
• Response Time: ≤ 1 ms for both state transitions (0 to 1 and 1 to 0)
• Maximum Leakage Current: 0.4 mA at 30 V
• Isolation: 1780 Vrms DC for 1 minute between channels and bus; 500 Vrms DC for 1 minute between groups
• Power Dissipation: 1.75 W + (0.4 V x total module load current)
• Bus Current Requirement: 330 mA
• Operating Temperature: 0 – 60 °C
• Storage Temperature: -40 – 85 °C
• Relative Humidity: 95% without condensation
• Operating Altitude: ≤ 5000 m

Features

• Logic Type: Positive logic (source)
• Local Signalling:
  • 1 green LED for bus communication
  • 1 red LED for external fault detection
  • 32 green LEDs for input status
• Protection: Internal output protection by 5 A fuse per group
• Certifications: CE, GOST, BV, RMRS, ABS, DNV GL, RINA, C-Tick, FM Class 1 Division 2
• Environmental Compliance: RoHS/REACh compliant
