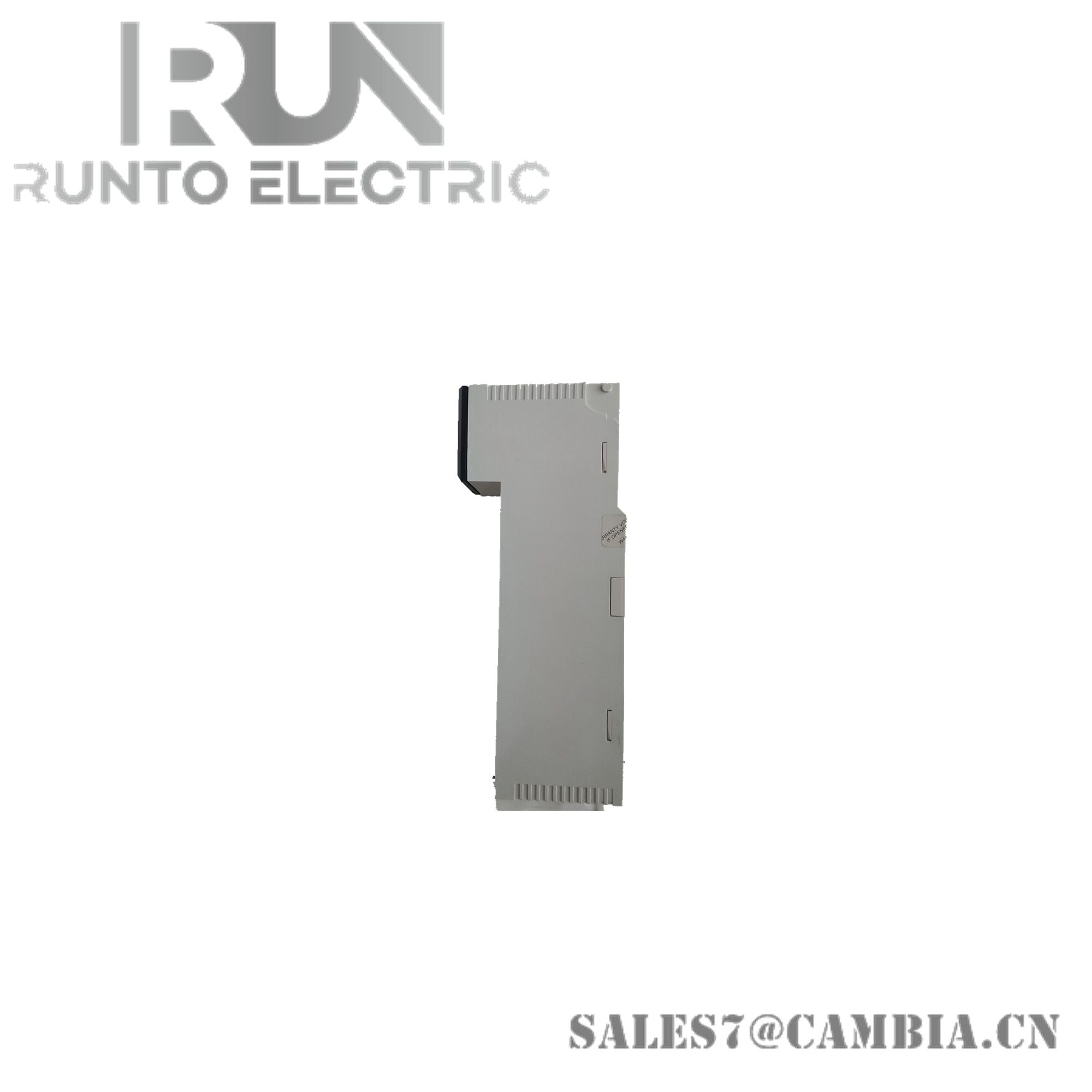

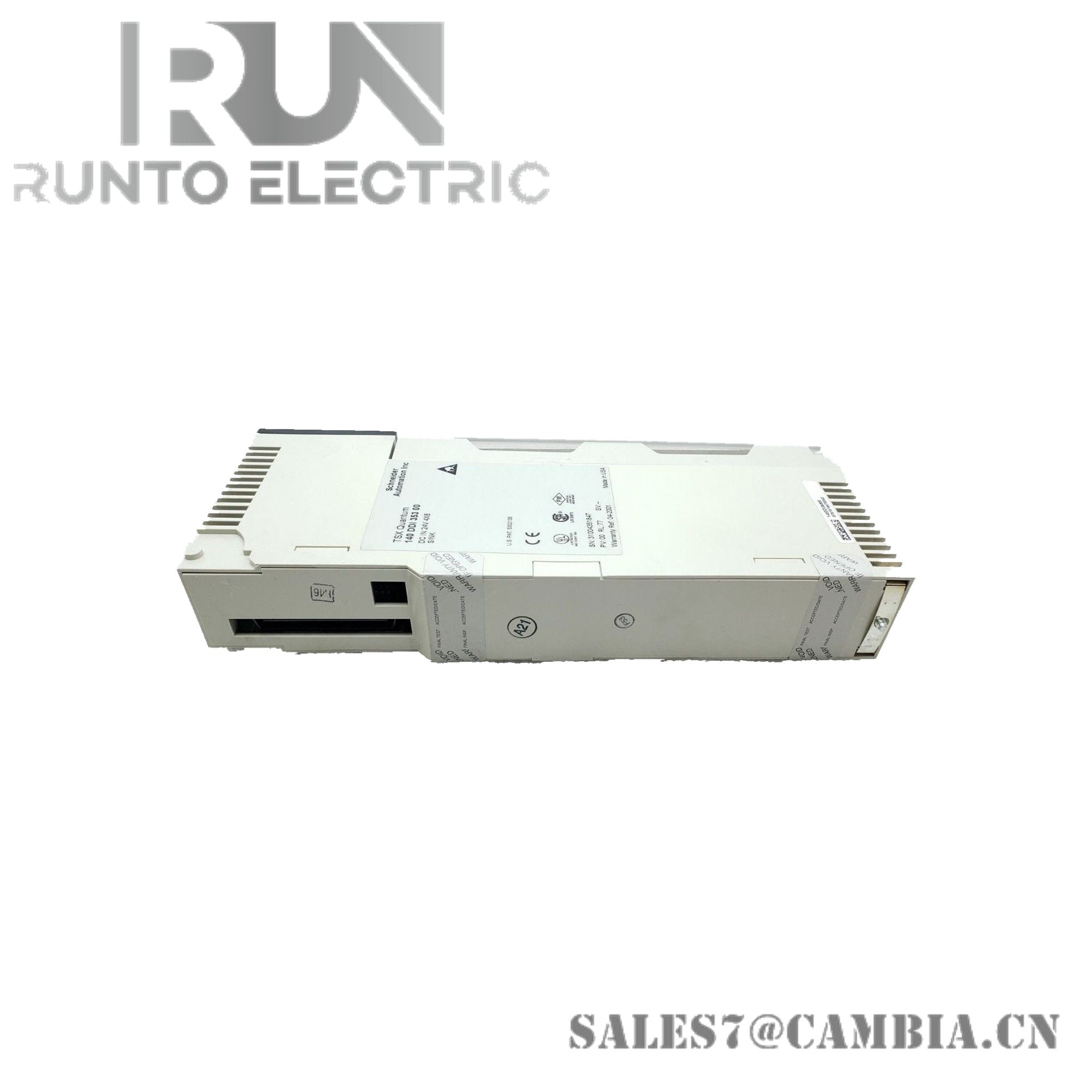

Schneider 140DDI35300 Discrete Input Module

Description:

The 140DDI35300 Discrete Input Module is designed for reliable input processing in automation systems, featuring 32 channels with configurable positive/negative logic.

Specifications:

• Module Type: Discrete Input
• Number of Channels: 32
• Voltage Range: 24V DC
• Input Type: Positive/Negative logic (configurable)
• Input Voltage Limits: 19.2…30 V DC
• Guaranteed Voltage State 1: 15…30 V DC
• Guaranteed Voltage State 0: -3…5 V DC
• Current State Guarantee 1: ≥ 2 mA at Us = 5.5 V and Uin = 0 V
• Current State Guarantee 0: ≤ 0.5 mA
• Response Time: ≤ 1 ms
• Power Consumption: 1.7 W + (0.36 x number of energized points)
• Insulation:
  • 1780 Vrms between groups and bus for 1 minute
  • 500 Vrms between groups for 1 minute
• Environmental Performance: RoHS/REACh compliant, Green Premium label
• Operating Temperature: 0…60 °C
• Storage Temperature: -40…85 °C
• Relative Humidity: 95% non-condensing
• Altitude: ≤ 5000 m

Features:

• Communication Protocol: Modbus, compatible with other Schneider-based communication protocols
• Local Signal Indication: LEDs for bus communication, external fault detection, and input status
• Protection Type: Input protection through limited resistance
• Certifications: CE, CSA, UL, C-Tick, DNV, RINA, RMRS, BV, GOST, ABS
