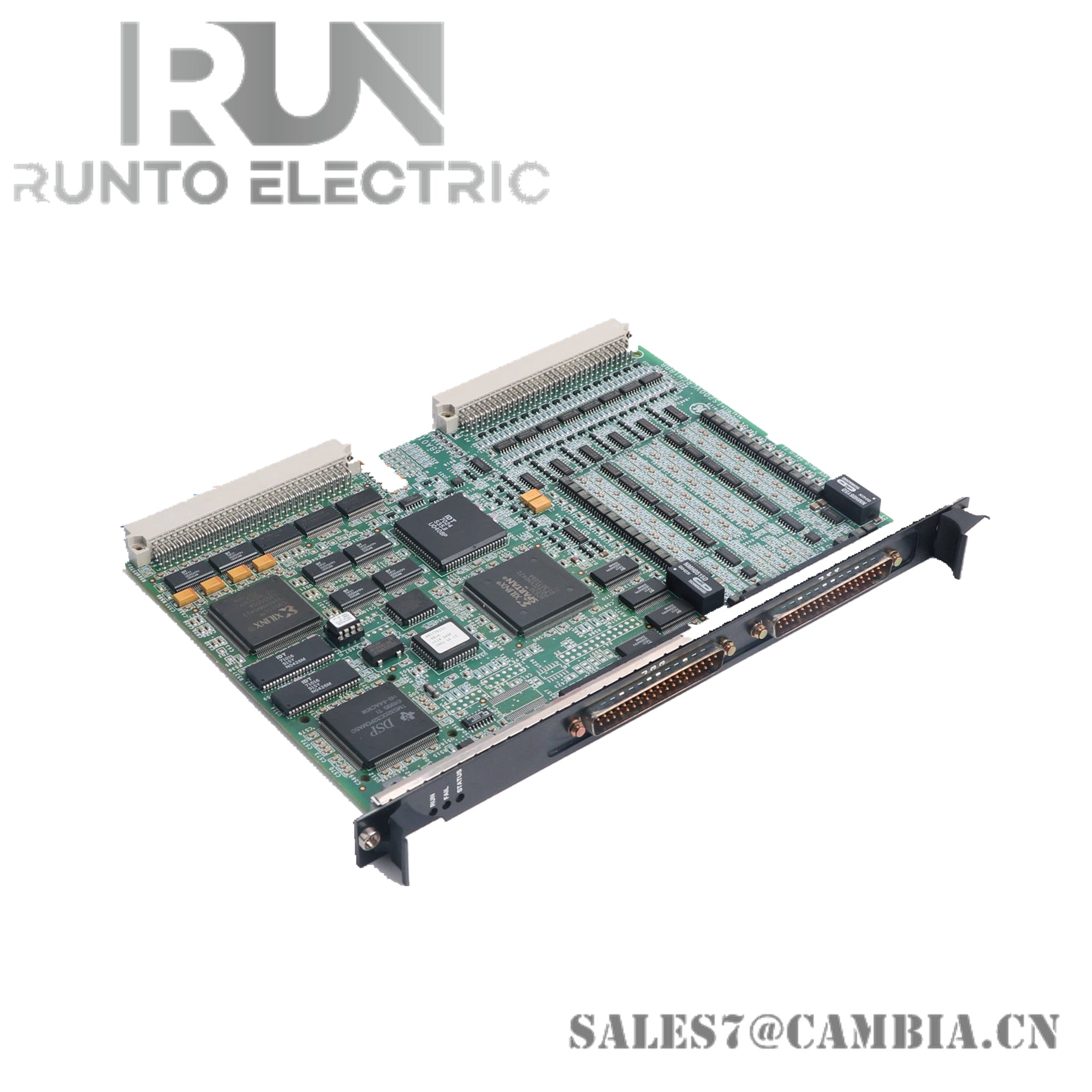

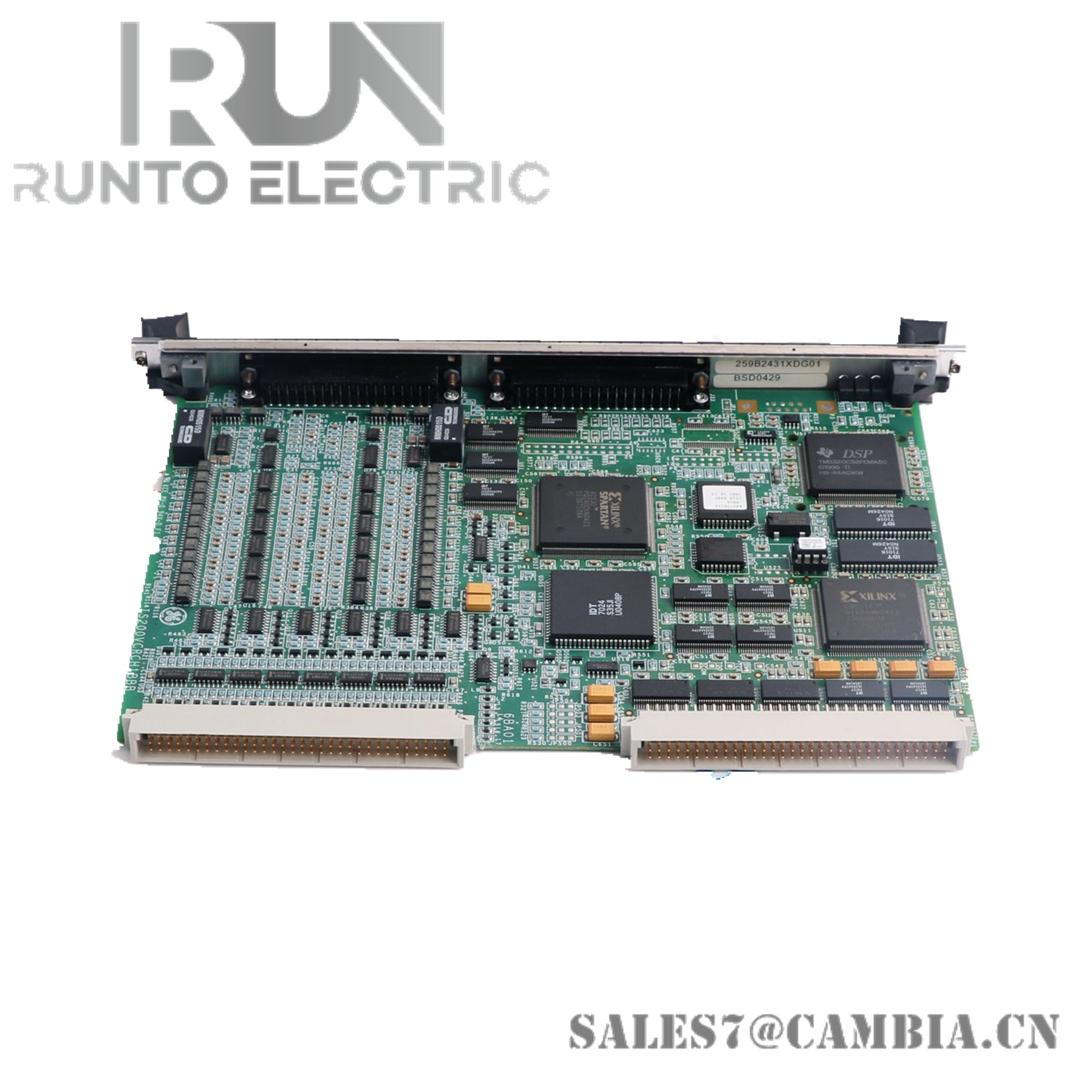

New in Factory Module GE IS210AEBIH3BED

Key Features:

• Single-channel bistable operation: Ensures a defined state (energized or de-energized) in case of power loss.
• Safety Integrity Level (SIL) 3 certified: Meets stringent safety requirements for critical applications.
• Positive break contacts: Guarantee safe isolation between circuits even in case of welding.
• Wide operating voltage range: Accommodates diverse power systems (12VDC to 24VDC).
• LED status indicators: Provide clear visual feedback on relay state.
• Compact design: Saves valuable space in control cabinets.

Technical Specifications:

• Number of Channels: 1
• Safety Integrity Level (SIL): 3
• Operating Voltage: 12VDC to 24VDC
• Contact Rating: 6A @ 24VDC
• Operating Temperature: -40°C to +85°C
• Dimensions: 22.5mm x 61.5mm x 11.5mm (0.89" x 2.42" x 0.45")

Product Description:

The GE RST Analog Termination Board DS200TBQBG1ACB features 2 terminal blocks. Each block contains 77 terminals for signal wires. The GE RST Analog Termination Board DS200TBQBG1ACB also contains 15 jumpers, 3 34-pin connectors, and 3 16-pin connectors. The 154 terminals are used to connect copper signal wires to the board. The signal wires are connected to other components and boards in the drive and the board receives the signals for processing. The signal wires also transmit some signals to other boards and components in the drive. The information that is supplied with the original board from the factory documents the signals that connect to each terminal. When you install the original board you can use that information to know which terminal to connect each signal wire.

Additional Information:

• New and Origin Item in Stock
• With One Year Warranty

For inquiries, please contact: sales7@cambia.cn
