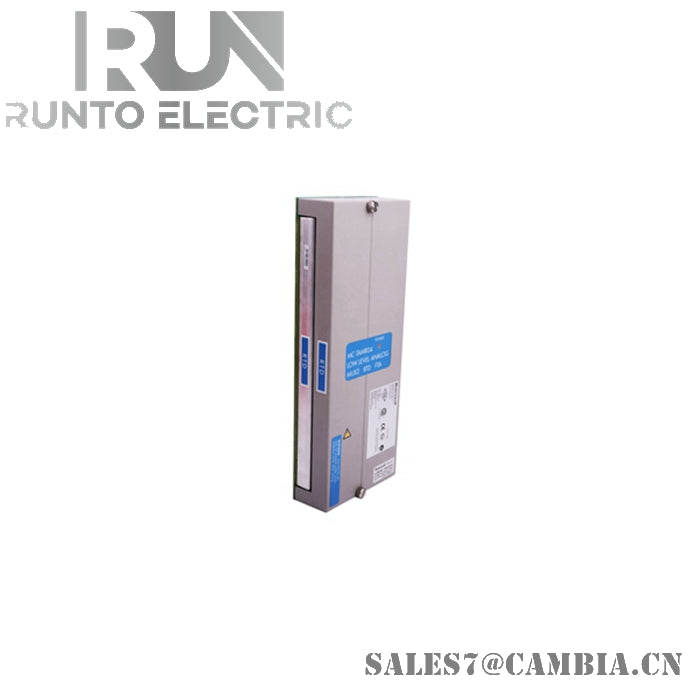

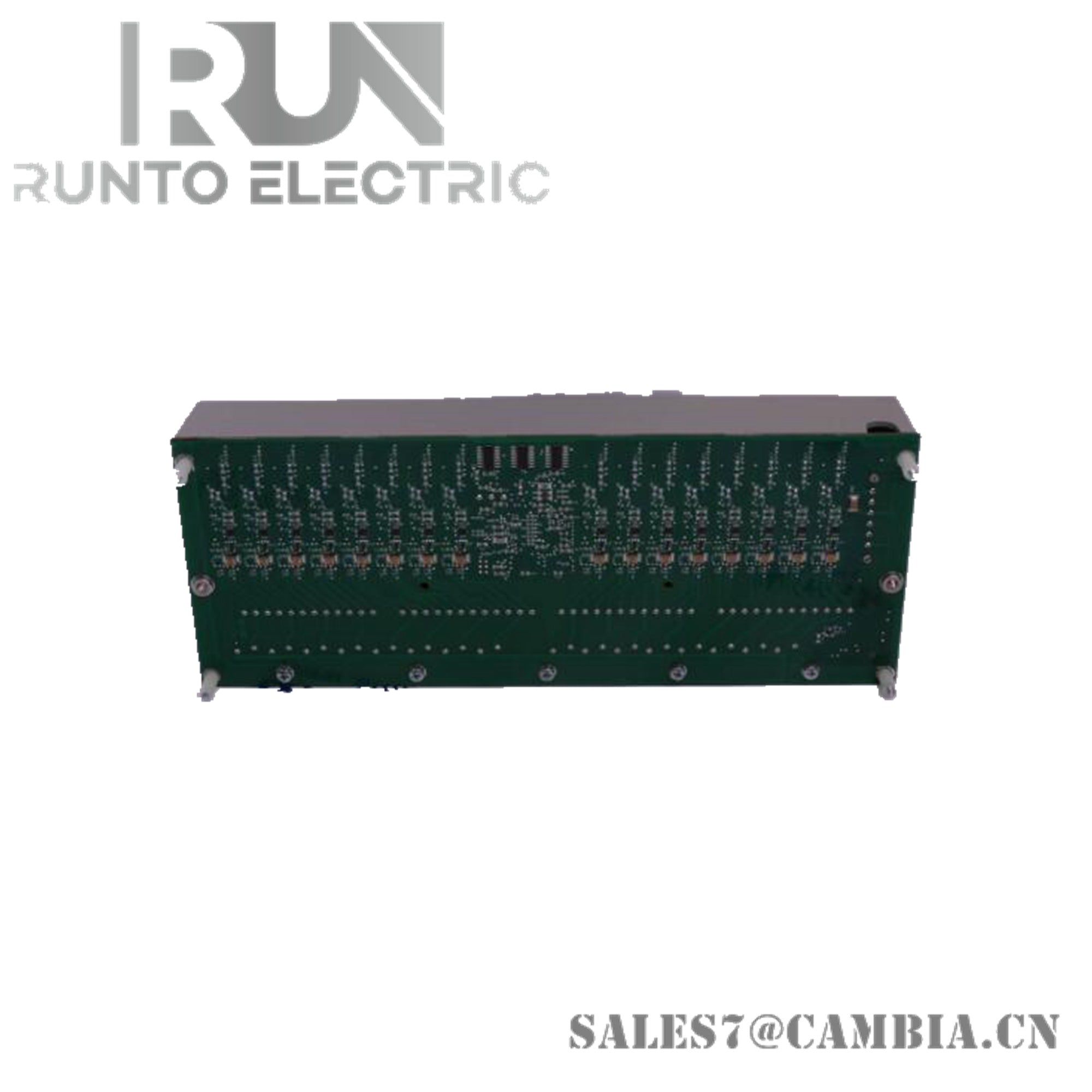

MC-TAMR04 | Honeywell | Low Level Analog Input Multiplexer

• Brand/Manufacturer: Honeywell
• Dimensions: 30.5 cm x 11.9 cm x 7 cm
• Weight: 0.7 kg
• Country Of Origin: USA
• Description: Honeywell MC-TAMR04 51305907-175 UCN Low Level Analog Input Multiplexer

Overview:

• Input Type: Thermocouple and/or RTD
• Input Channels: 64 fully-isolated channel-to-channel, channel-to-PM, and channel-to-power supply common in 16 channel increments.
• Input Scan Rate: 1 Second fixed by IOM (up to 64 channels/sec max.)
• Channel Bandwidth: 0 to 4.7 Hz (-3 dB)
• Nominal Input Range (TC only): -20 to +100 millivolts
• Maximum Normal Mode Continuous Input Non-damaging (any thermocouple type configured): -10 to +10 volts (TC), -1 to +2 Volts @ 100 milliamps (RTD)
• Gain Error (-20 to +100 millivolt range): 0.050% full scale max

Runto's Inventory: Runto’s large inventory is the core of our business. Our large inventory of industrial products is ready for shipment, which is the core of our offering. It contains more than 400,000 electronic products such as PLC, HMI, drives, servo and CNC equipment, IPC and PG. Whether new or discontinued, from the smallest module to the complete configuration. We have years of products that are not readily available, the latest technology and all the other products in between.

Hope anyone inquires from us, please contact sales7@cambia.cn.

1. Lower your support costs.
2. Provide ongoing availability of automation replacement parts.
   • Quantity available: 10
   • Warranty: 12 months.
