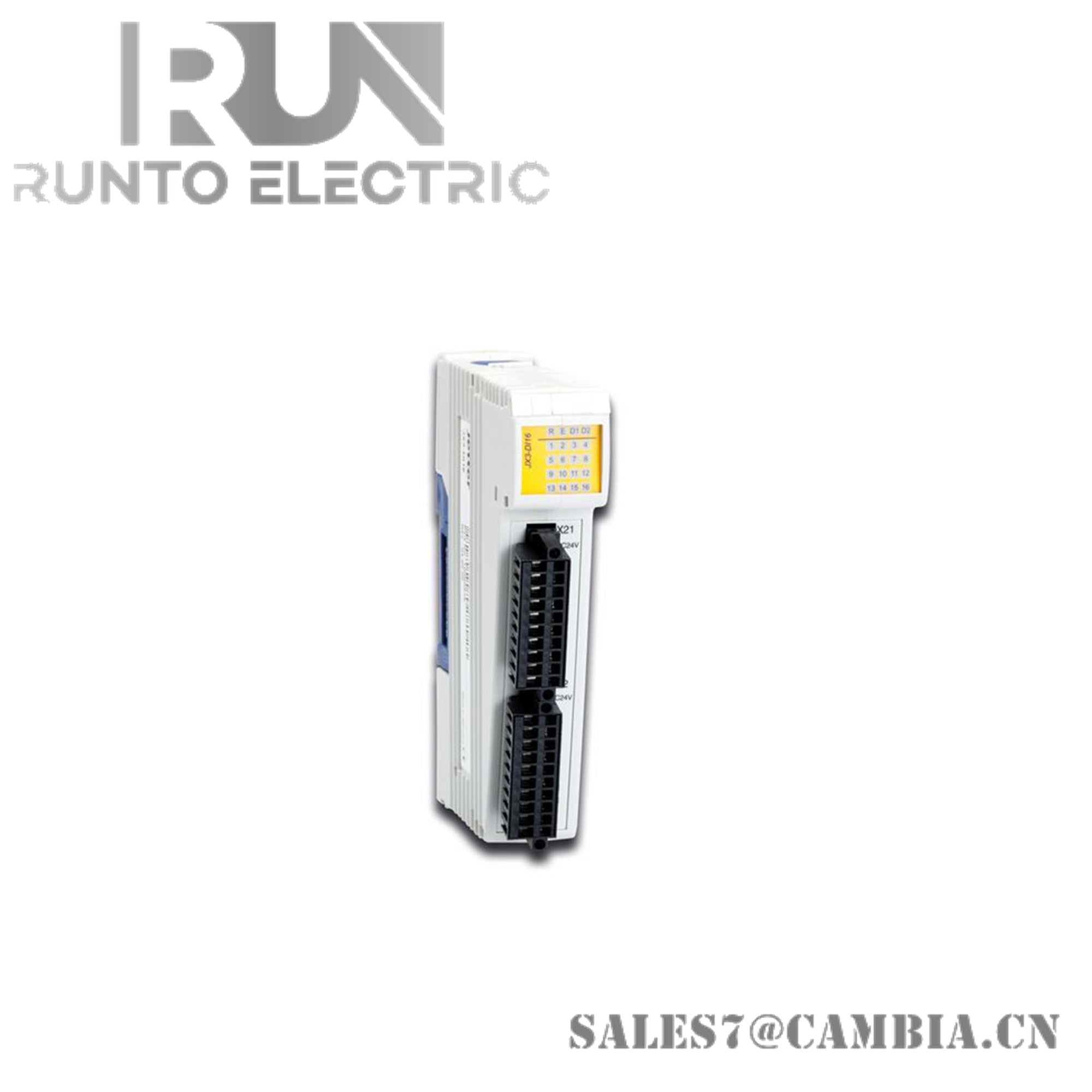

Jetter JX3-DI16_PI JX3-DI16 - Expansion Modules
SKU: JX3-DI16
In stock
Description
Brand: Jetter Item No: JX3-DI16_PI
Type: PLC Warranty: 1 year
Service: One Year Warranty Quality: 100% New And Origin
Delivery Time: 1-3 Days Condition: In Stock
Product information: Features:
16 digital inputs
Digital input filters
Pulse stretching
Counting feature
Light-emitting diodes for monitoring communication and power supply
Plug-in terminals
Options
Pluggable field wiring terminals as 10-pin PUSH-IN terminal -(PI)
Technical Data
LED membrane                   RAL 1004, amber
Degree of protection          IP20
Operating temperature      0 ... +50 °C
Storage temperature         -40 ... +70 °C
Air humidity                       10 ... 95 % (non-condensing)
Mechanical installation      DIN rail to EN 50022 – 35 x 7.5 or EN 50022 – 35 x 15
Mounting orientation         Vertical
Labeling system                  Standard terminal labels
Certifications                       CE
Rated input voltage            DC 24 V (-15 ... +20 %)
Input current, typical          3.6 mA, constant
Pulse stretching range        0 through 7.5 ms
Digital filter range               0.125 ms through 16 ms
Dimensions (W x H x D)      25 x 131 x 101 mm
