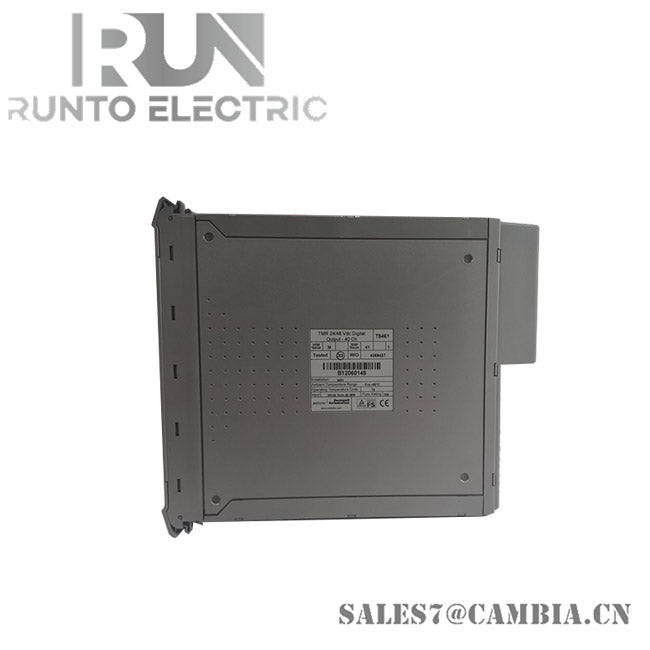

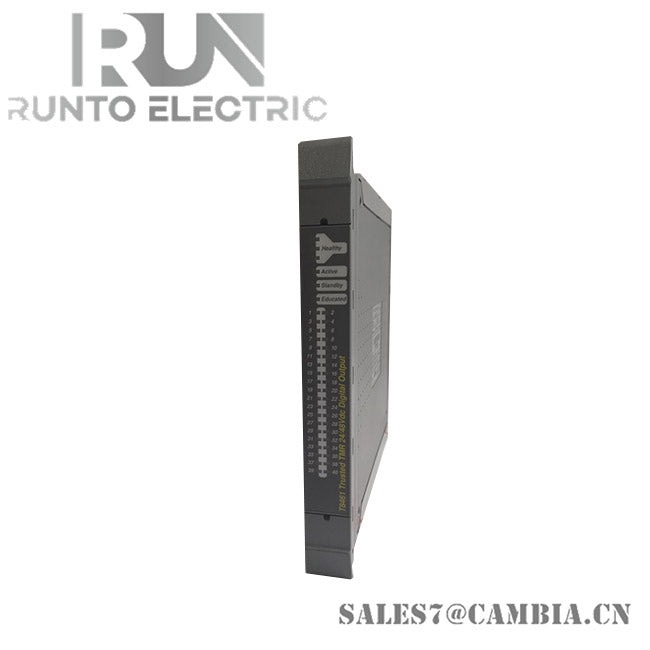

ICS Triplex T8461 TMR 24/48 Vdc Digital Output Module

Specifications:

• System Supply Voltage Range: 20 to 32Vdc
• Circuit Type: Fault-tolerant, fully triplicated with optional line monitoring
• Number of Outputs: 40 Channels
• Independent Power Groups: 5 groups, each with 8 outputs
• Operational Output/Field Voltage Range: 18 to 60V dc
• Output Voltage Measurement Range: 0 to 60V dc
• Maximum Withstanding Voltage: -1 to 60V dc
• Output Current Rating (Continuous): 0.75A per channel, 6A per power group
• Minimum On-State Load Current: 25mA
• Output Off-State Resistance (Effective Leakage): 33kΩ
• Maximum Capacitance Pre-release 3.5: 30-55uF
• Release 3.5: at least 3500uF at 0.75A
• Flashing/Pulsing Current Loads: Release 3.5 is recommended
• Output On-State Resistance: 0.6Ω
• Output Short Circuit Protection: Electronic (latching)
• Channel to Channel Crosstalk: >-40dB
• Power Consumption:
  • Field Supply at 24V (0.75A per channel): 18W
  • System Supply (24V): 22W
• Field Common Isolation:
  • Sustained Working: ±250V dc
  • Maximum Withstanding: ±2.5kV dc
• Output Turn-On/Off Delay: 0.5ms
• Sample Update Time: 0.5ms
• Sequence of Events:
  • Event Resolution: 1ms
  • Time-stamp Accuracy: ±0.5 ms
  • Self-Test Interval: 2 minutes
• Intrinsic Safety: External barrier
• Operating Temperature: -5°C to 60°C (23°F to 140°F)
• Non-operating Temperature: -25°C to 70°C (-13°F to 158°F)
• Temperature Change: 0.5ºC/min
• Operating Humidity: 5 – 95% RH non-condensing
• Environmental Specifications: Refer to Document 552517

Dimensions:

• Height: 266mm (10.5ins)
• Width: 31mm (1.2ins)
• Depth: 303mm (12ins)

Weight:

• Module Weight: 1.285kg (2.8lbs)
• Shipping Weight: 2 Kg

NEW AND ORIGINAL ITEM IN STOCK

WITH ONE YEAR WARRANTY

For inquiries, please contact sales7@cambia.cn

Additional Information:

• Lower your support costs.
• Provide on-going availability of automation replacement parts.

Quantity available: 10

Warranty: 12 months.

Technical specification, manuals, and data sheets available.

Inquiry Details:

• All quotes based on EXW only.
• Shipping time: 5-7 days, via DHL/TNT/UPS/EMS/Fedex.
• Payment terms: 100% T/T PAYMENTS before shipping.
