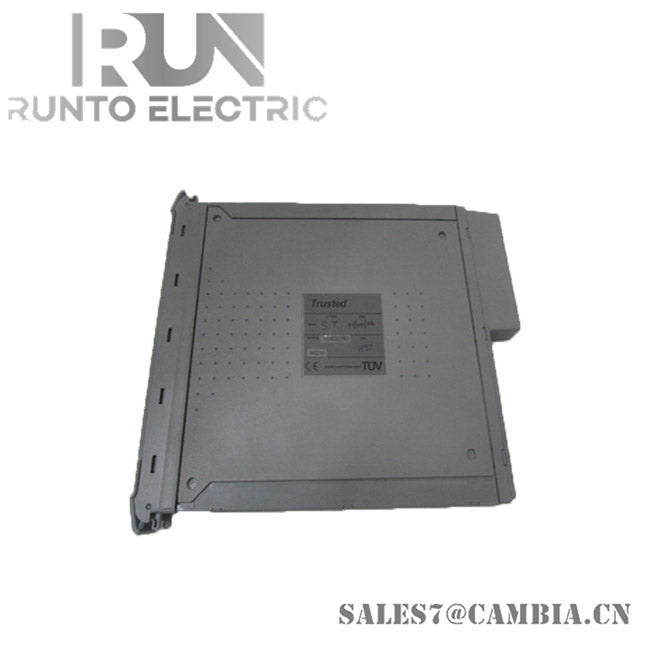

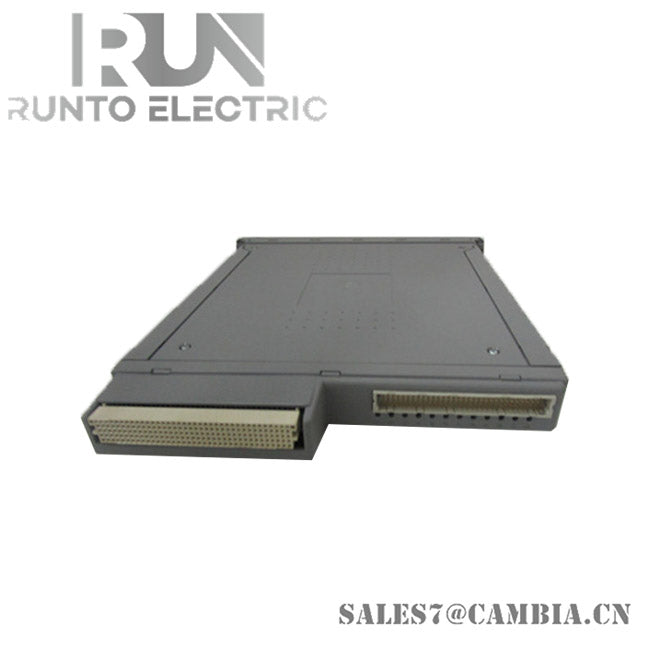

ICS Triplex T8431C Trusted TMR 24 Vdc Analog Input Module

Specifications

System Specifications:

• System Supply Voltage Range: 20 to 32V dc
• Number of Inputs: 40 Channels
• User Defined Thresholds: 4-off
• Input Current Range: 0-22mA
• Input Voltage Range: 0-6 Vdc
• Sample Update Time: 0.5ms
• Resolution: 3.9uA (1/256mA)
• Safety Accuracy: +/- 1% of full scale
• Calibration Accuracy: 0.03%
• Recommended Input Channel Calibration Check Interval: 2 years

Circuit and Safety Features:

• Circuit Type: Fault tolerant, fully triplicated with optional line monitoring
• Fusing: None, external if required
• Intrinsic Safety: External barrier

Sequence of Events:

• Event Resolution: 1ms
• Time-stamp Accuracy: ±0.5 ms
• Field Common Isolation: Sustained Working: ±250V dc, Maximum Withstanding: ±2.5kV dc
• Channel to Channel Crosstalk: -40 to –60 dB

Power and Operating Conditions:

• Power Consumption: 15 – 18W
• Self-Test Interval: 2 minutes
• Operating Temperature: -5°C to 60°C (23°F to 140°F)
• Non-operating Temperature: -25°C to 70°C (-13°F to 158°F)
• Temperature Change Rate: 0.5ºC/min
• Operating Humidity: 10 – 95% RH non-condensing

Dimensions and Weight:

• Height: 266mm (10.5ins)
• Width: 31mm (1.2ins)
• Depth: 303mm (12ins)
• Weight: 1.149kg (2.5lbs)
• Shipping Weight: 2 Kg

NEW AND ORIGINAL ITEM IN STOCK

WITH ONE YEAR WARRANTY

For inquiries, please contact sales7@cambia.cn

Additional Information:

1. Lower your support costs.
2. Provide on-going availability of automation replacement parts.

Quantity available: 10

Warranty: 12 months.

Technical specifications, manuals, and data sheets available.

Inquiry Details:

1. All quotes based on EXW only.
2. Shipping time: 5-7 days, via DHL/TNT/UPS/EMS/Fedex.
3. Payment terms: 100% T/T PAYMENTS before shipping.

► FAQ

Q: Do you provide warranty for the goods?

A: Yes, we provide warranty for all the goods from us.

Q: Could you provide technology support?

A: We've been in this field for more than 12 years. If there's any problem, please contact us, and we'll provide suggestions from our engineers to help you solve the problem.

Q: Do you keep goods in stock or only trading?

A: We have a large warehouse for goods. We keep lots of goods in the warehouse, so we could promise fast delivery.

Q: Are your goods new and original?

A: Yes, they are new and original.
