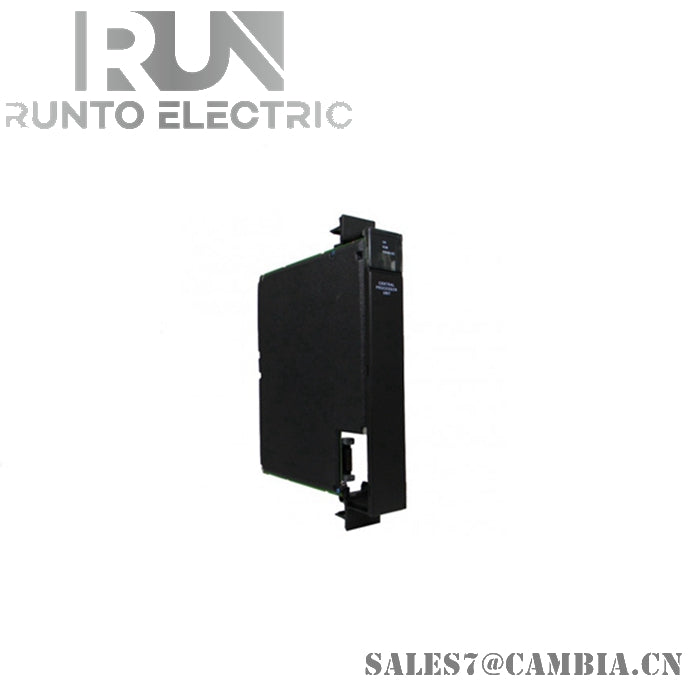

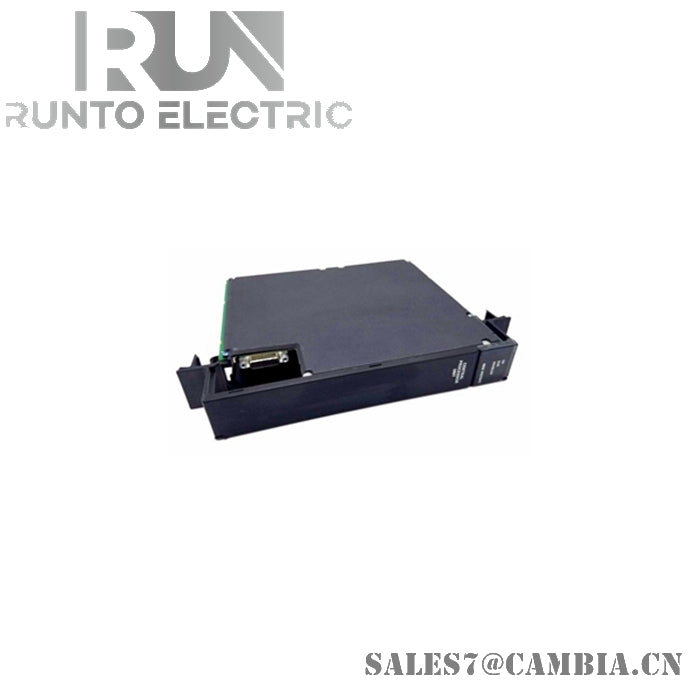

IC697CPX782 GE CPU MODULE

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone enquire from us,pls click this sales7@cambia.cn




► Product Description

CPU model IC697CPX782 is manufactured by GE Automation and Controls. This CPU has a single slot with three independent, onboard serial ports and includes 1 MB of battery-backed CMOS RAM (inside the same slot) and 256 K non-volatile user flash memory for user data. It can calculate floating point and contains an 80486DX4 microprocessor. IC697CPX782 uses MS-DOS or Windows-based programming software to control machines, processes, and systems.

IC697CPX782 has a Scan Rate of 0.4 milliseconds for one Boolean function. Operation of this module has a three-position operating mode switch. It has software passwords which are used to lock data of the program and configuration. In addition, data locking can be initiated manually by using the memory protect key switch. Seven green LEDs show CPU status on the front face of the module.

IC697CPX782 requires 100 W AC/DC power supply and 90W DC power supply. A lithium battery with a five-year shelf life controls the calendar clock. Battery memory retention is six months nominal with no applied power. Day clock accuracy time is maximum 3.5 seconds for one day. Its elapsed time clock accuracy value is maximum 0.01 percent. To connect the programmer via Ethernet TCP/IP network requires an installed Ethernet Interface module. This can be either the Ethernet Controller IC697CMM741 or Ethernet Interface (Type 2) IC697CMM742. Before connecting the programmer and PLC to the Ethernet TCP/IP network, the IP address must be set. Then connect the PLC and the programmer running Windows software to the Ethernet Interface.
