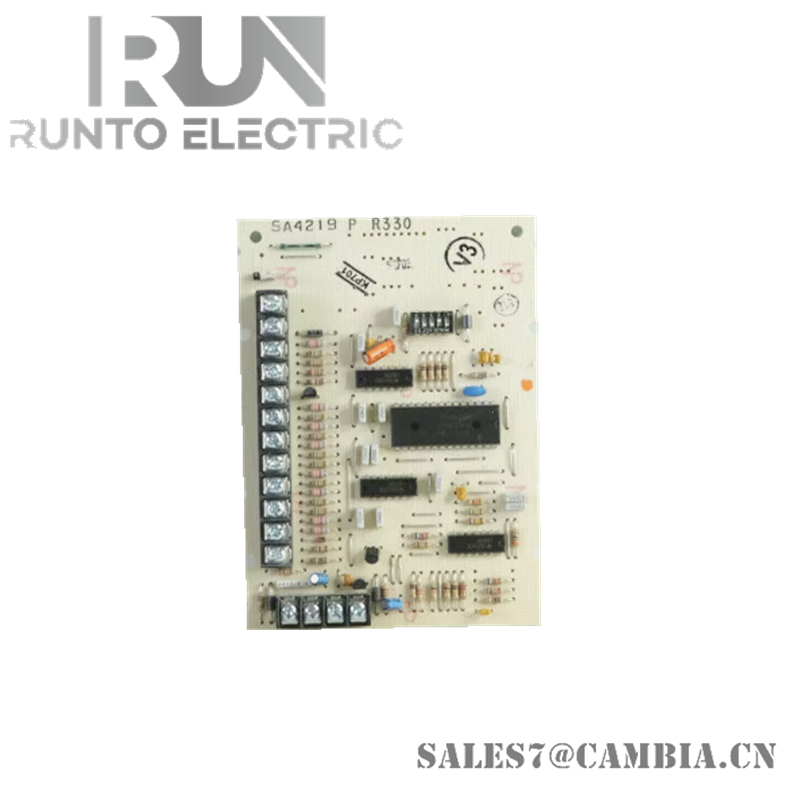

Honeywell SA4219-1 8-Zone Wired Zone Expander Module

Description:

The SA4219-1 module adds up to eight end-of-line resistor supervised zones to compatible control/communicators via the control’s keypad wiring. It is commonly used in commercial systems for deploying conventional detectors in an ECP zone expandable system.

Specifications:

• Number of Zones: Up to 8 zones
• End-of-Line Resistor: Required for each zone (1000-ohm)
• Communication: Supervised to prevent tampering
• Mounting: Can be mounted within the control’s cabinet or remotely
• Tamper Protection: Includes a tamper magnet and jumper for remote installations

Features:

• Flexible Installation: Can be mounted horizontally or vertically, with provisions for tamper protection
• Zone Expansion: Adds up to eight zones to the control system
• Compatibility: Works with compatible control/communicators via keypad wiring
• Tamper Detection: Sends a tamper signal if the module cover is removed
