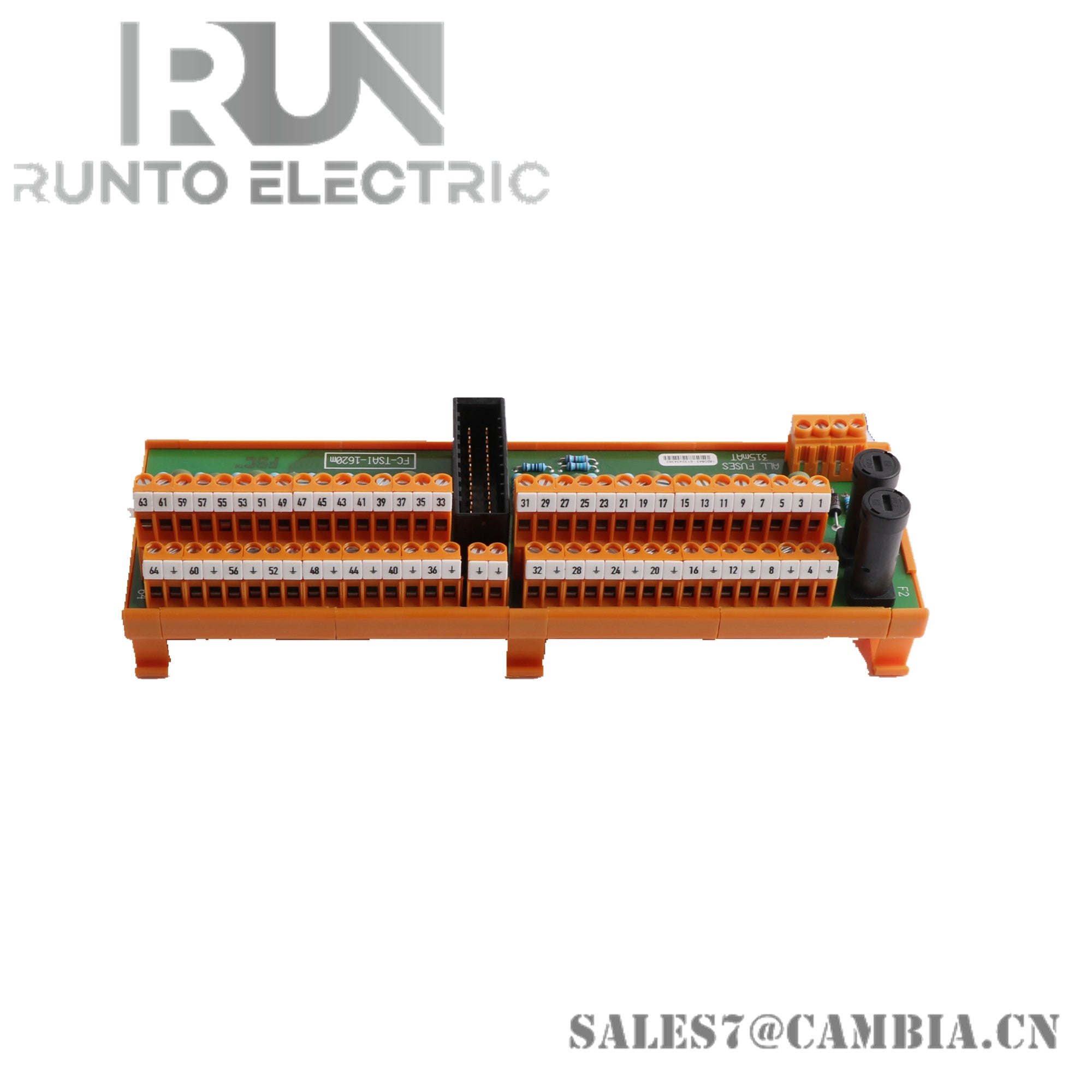

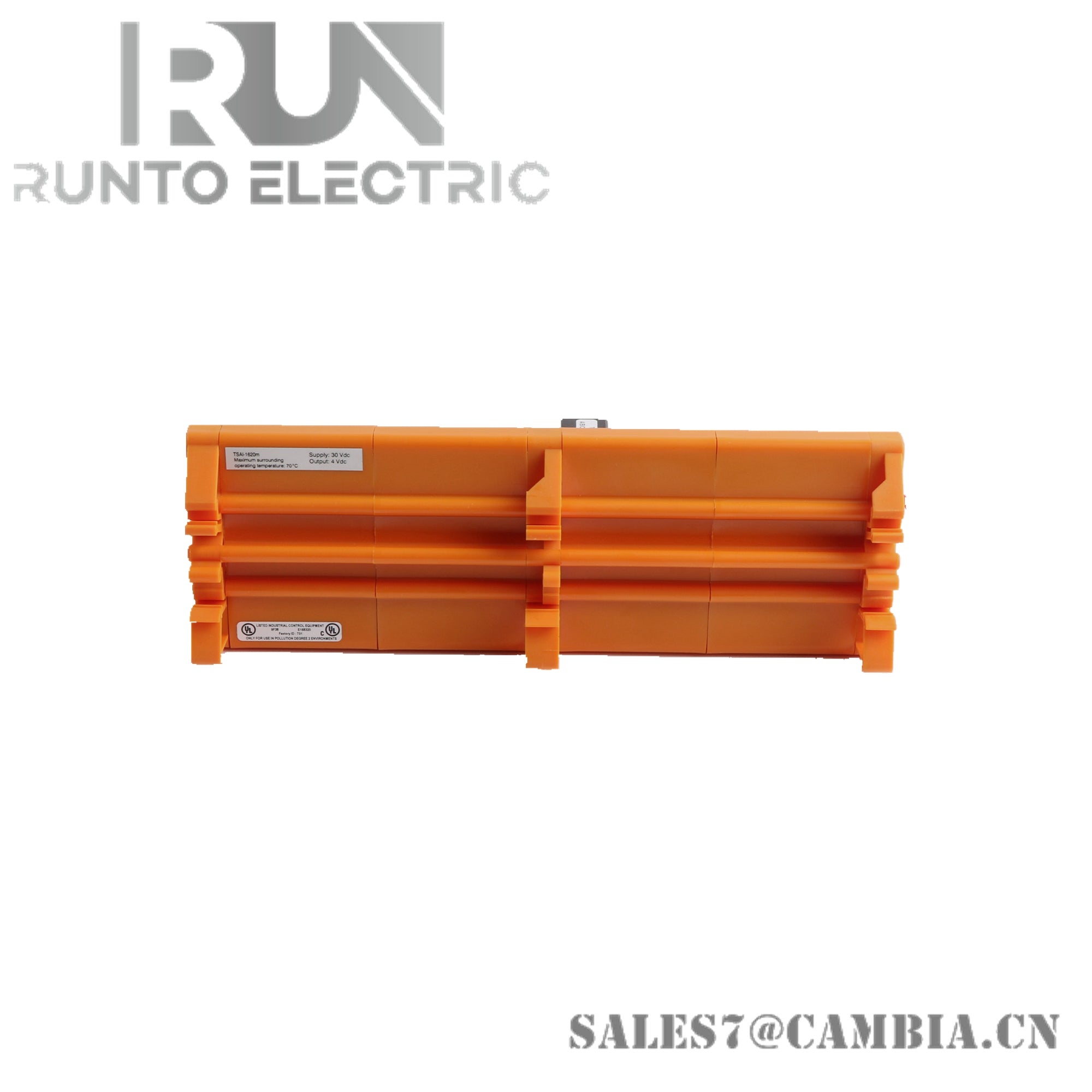

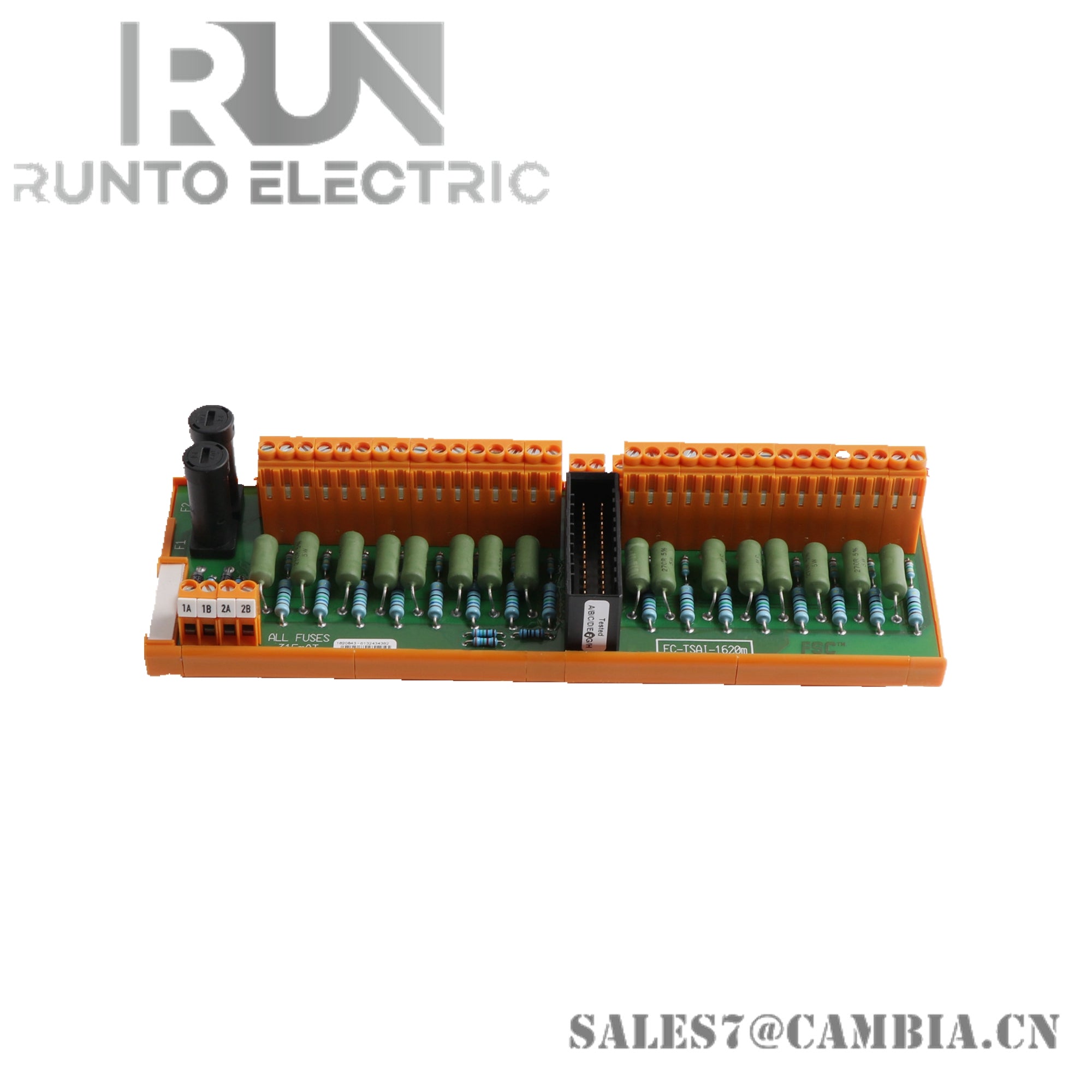

Honeywell FC-TSFIRE-1624 Safety Manager Hardware Reference

Power Requirements:

• External Voltage: 24 V DC ±25%
• Maximum Current: 570 mA (at 24 V DC)
• With End-of-Line (EOL) Resistors: Typical 70 mA (at 24 V DC)
• No Load: Typical 11 mA (at 24 V DC)

Input Specifications:

• Number of Channels: 16
• Input Voltage (with EOL Resistor 4k7):
  • Typical: 20.5 V DC (at 24 V DC)
  • No Load: Typical 23.5 V DC (at 24 V DC)
• Channel Resistance: 680 Ω ±5%
• Shorted Current: 35 mA (at 24 V DC)

Relay Specifications:

• Relay Voltage: 17 – 39 V DC
• Current: Typical 8.5 mA at 24 V DC

Termination:

• Screw Terminals
  • Maximum Wire Diameter: 2.5 mm² (AWG 14)
  • Strip Length: 7 mm (0.28 in)
  • Tightening Torque: 0.5 Nm (0.37 ft-lb)

Field Signal Specifications:

• Field Wire Resistance: < 100 Ω
• End-of-Line (EOL) Resistor: For example 4k7, ± 5% (0.25 W)
• Hydrogen (Group A & B):
  • Maximum Loop Inductance: 60 mH
  • Maximum Loop Capacitance: 0.3 µF
• Non-Hydrogen (Group C & D):
  • Maximum Loop Inductance: 230 mH
  • Maximum Loop Capacitance: 7 µF

Physical Dimensions:

• Module Dimensions: 170 × 70 × 64 mm (L × W × H)
  • 6.72 × 2.76 × 2.52 in (L × W × H)
• DIN EN Rails: TS32 / TS35 × 7.5
• Used Rail Length: 171 mm (6.73 in)
