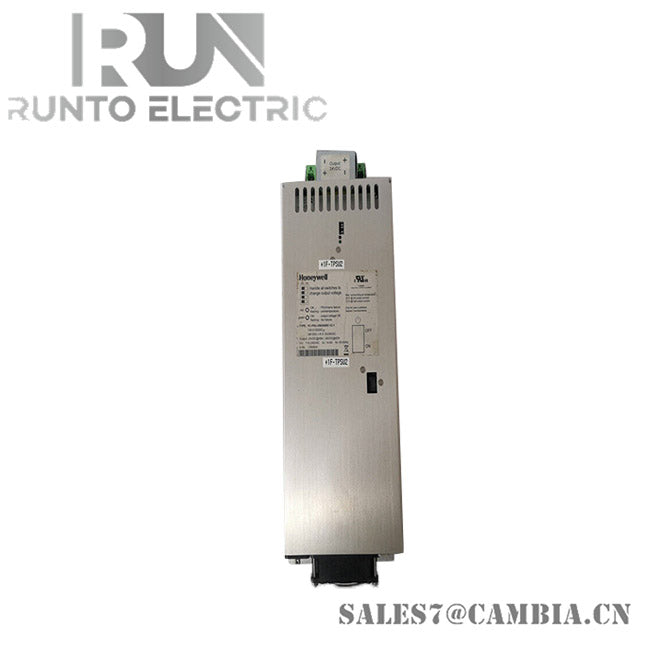

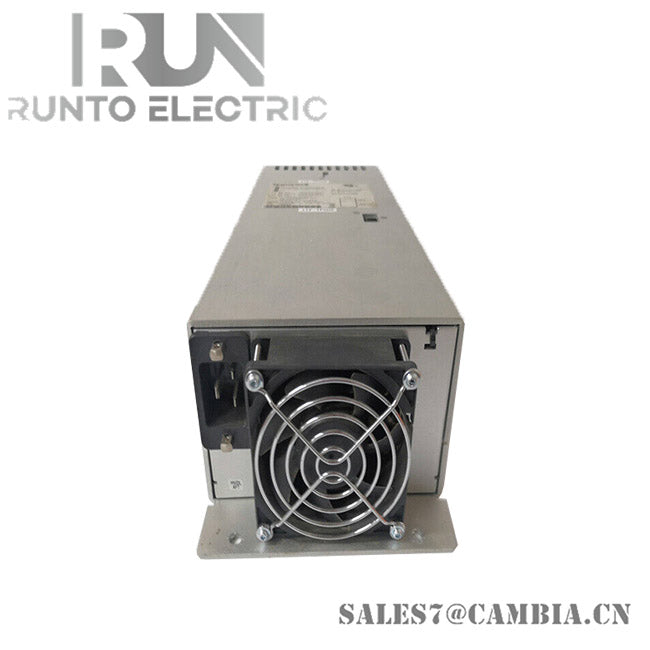

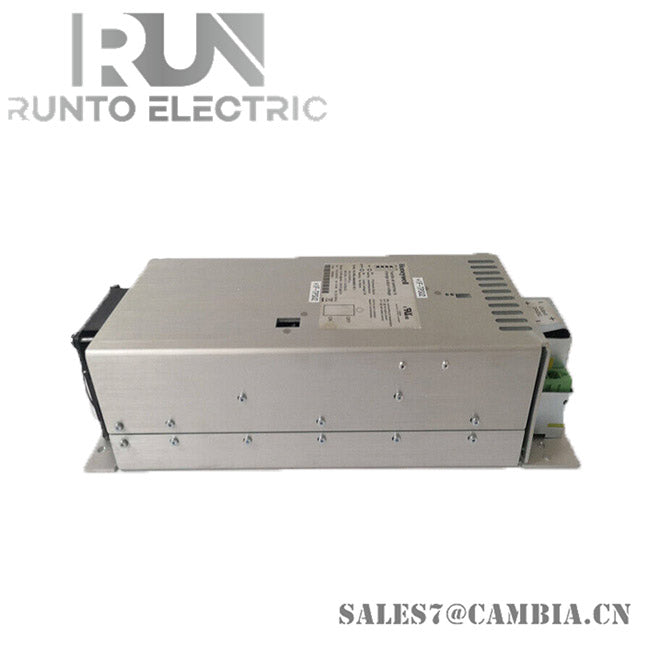

Honeywell FC-PSU-UNI4825U 48 VDC Power Supply Unit

Product Description

• Manufacturer: Honeywell
• Model: FC-PSU-UNI4825U
• Product Type: 48 VDC Power Supply Unit

Specifications

• Input Voltage: 110-240 VAC
• Output Voltage: 48 VDC
• Output Current: 25 A
• Power Consumption at No Load: 13 W
• Input Frequency Range: 47-63 Hz
• Dimensions: 420.5 x 140 x 90 mm (W x H x D)
• Weight: 5.7 kg (12.5 lbs), including cable set
• Storage Temperature: -25°C to +85°C (-13°F to +185°F)
• Operating Temperature: -5°C to +70°C (23°F to +158°F)
• Efficiency: > 87% at 230 VAC
• Approvals: CE, TUV, UL508, CSA

Features

• Dual Built-in Over-Voltage Protection: Complies with DIN V 19250 and VDE V 0801 standards, providing additional safety.
• ON/OFF Switch: Enables online replacement in a live system, ensuring minimal downtime.
• Current Limit Feature: Caps the maximum output power at 1200 W to prevent system overload.
• 100 ms Holdup Time: Ensures continuous operation during brief power interruptions.
• Under-Voltage Alarm: Alerts users to low voltage conditions, preventing system damage or malfunctions.
• Output Diode for Parallel Operation: Supports connecting multiple units in parallel for increased capacity.
• Optimum Protection: Provides reliable protection against continuous overload and short-circuiting.
• Hardware Control Features: Green LED indicates normal operation; red LED indicates failure or standby mode for easy status monitoring.
• Alarm Contact for System Monitoring: Facilitates integration with external monitoring systems to enhance operational oversight.
