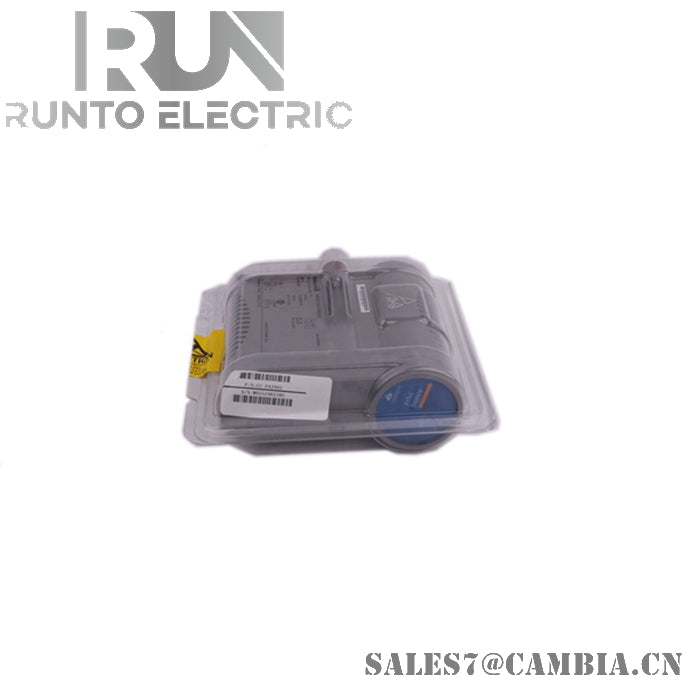

Honeywell CC-PDIL01 Digital Input Module

Product Description:

The Honeywell CC-PDIL01 Digital Input 24V Module is a digital input module that is part of the Experion® Series C Programmable Logic Controller (PLC) system. It is designed to interface with digital sensors and switches, and to provide these signals to the PLC. The CC-PDIL01 has eight digital input channels, each of which can be configured to accept sinking or sourcing devices. The module also has LED indicators that show the status of each input channel.

Technical Specifications:

• Number of input channels: 8
• Input voltage range: 12 to 30 VDC
• Input current: 2 mA
• Output voltage: 24 VDC
• Output current: 20 mA
• Operating temperature: -40 to 85°C
• Storage temperature: -40 to 105°C
• Vibration: 5 to 2000 Hz, 1 g peak-to-peak
• Shock: 15 g, 11 ms half-sine
• Dimensions: 3.54 in (90 mm) x 2.17 in (55 mm) x 0.87 in (22 mm)
• Weight: 0.24 lb (0.11 kg)
