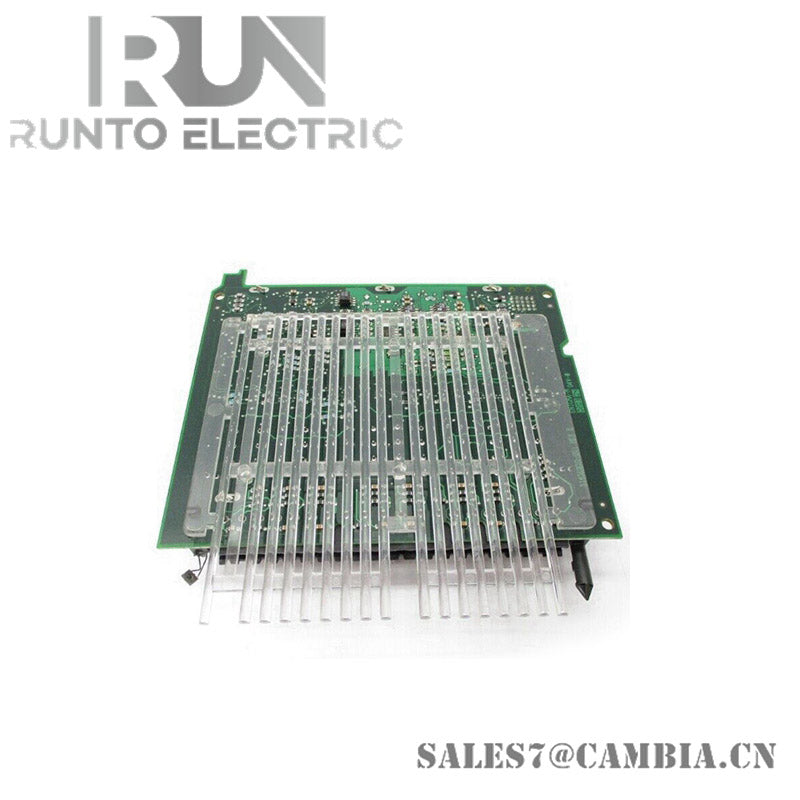

Honeywell 900H02-0102 Digital Output Module, 24VDC (16 channel)

Module Specifications:

• Product Name: Honeywell 900H02-0102 Digital Output Module
• Output Type: Intelligent Power Switch (IPS)
• Operating Voltage: 6.5 to 32 VDC (5.0 to 6.5 V @ <0.5A per channel)
• Peak Voltage: 34 VDC
• Output Configuration: 16 channels, divided into 2 groups of 8 outputs each
• Isolation: Galvanic isolation between the two groups
• Output Technology: Low side switching (current sinking)
• Overload Protection: Electronic high current and high-temperature limiting, resets after cycling field power
• Maximum Load Current:
  • 1 A per point
  • 8 A maximum per module (resistive load)
  • 0.5 A per point (incandescent lamp load, max 5 mH)
• Maximum Leakage Current: 0.15 mA @ 32 VDC
• Maximum Inrush Current: 4 A for 10 ms
• Minimum Load: 0.0 mA
• ON Voltage Drop: 0.3 VDC @ 1A load
• Response Time:
  • OFF to ON: 6 ms
  • ON to OFF: 6 ms
• LED Indicators:
  • Channel Status: Green LED per channel indicating active status
  • Module Status:
    • Green blinking LED: Scanning activity
    • Amber blinking LED: Forced channels
    • Red LED: Module diagnostics
• Power Supply Loading:
  • 5V: 340 mA
  • 24V: 0 mA
• Fuses: Electronic limiting
• Additional Features: Screw terminals for +V and COM connections, requires external power for each group of 8 outputs
• Note: Response times exclude controller scan time and transmission time from module to backplane.
