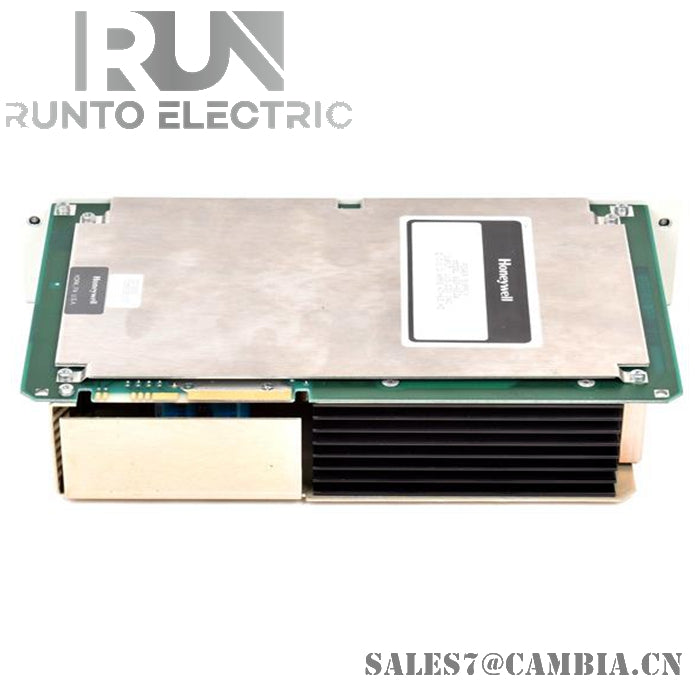

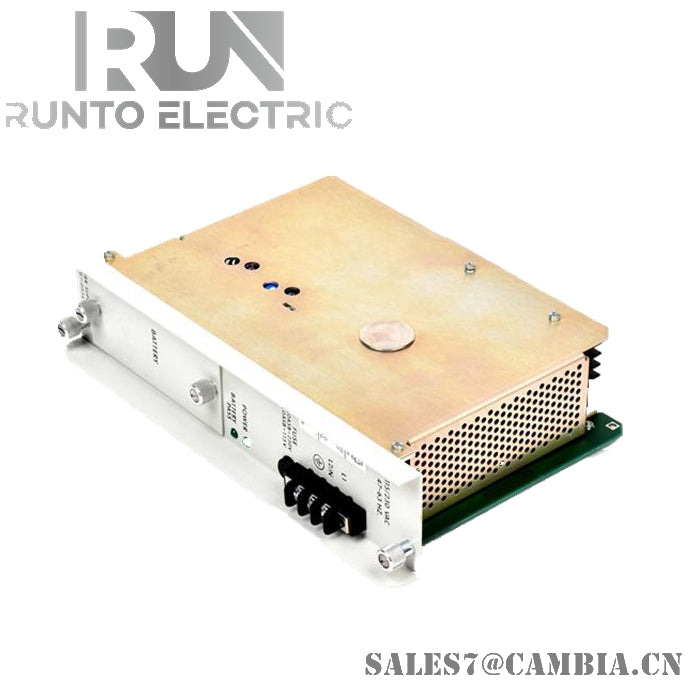

Honeywell 620-0636 Processo Module

Description

The  620-0636 Processor Module is a self-contained, single-module processor consisting of a logic processor, program memory, a 16-bit register area, and an I/O status area.

Battery Compartment

• Battery Type: AA lithium dry cell battery
• Backup Power: Provides power to the Memory and Register area
• Battery Installation: Installed when shipped; front-accessible by removing the battery cover plate
• Output: 3.0 volts
• Backup Duration: Minimum of 6 months

Caution:

• Lithium batteries are prohibited from passenger aircraft.
• Potentially hazardous conditions to avoid:
  • Recharging
  • Incineration
  • Short circuit
  • Forced overcharge (reversal)
  • Use or storage outside of the specified temperature range
  • Puncturing, crushing, or disassembling

Frontplate Features

• 3-Position Mode Control Keyswitch:

  • PROGRAM: For programming mode
  • DISABLE: To disable operations
  • RUN/PROGRAM: For running or programming operations

• Status LEDs:

  • RUN LED: Indicates that the 620-06 is scanning
  • FORCE LED: Indicates that one or more program instructions are in the forced state
  • PASS LED: Indicates passing module self-test
  • BATTERY PASS LED: Indicates that the battery is good

• 9-pin D Connector: Loader/Terminal connection point

  • Configuration: RS422 operation
  • Data Rate: 9600 Baud
  • Reference Manuals:
    • 623-6000 LOADER/TERMINAL USER MANUAL (Form 623-8987)
    • 623-60 MS-DOS LOADER USER MANUAL (Form 623-8986)

Internal Components

• Printed Circuit Boards:
  • Processor Printed Circuit Board:
    • Contains a Motorola 68B09E microprocessor
    • Includes program memory and data tables

Inquiry Details:

• All quotes based on EXW only
• Shipping time: 5-7 days, via DHL/TNT/UPS/EMS/Fedex
• Payment terms: 100% T/T PAYMENTS before shipping

For inquiries, please contact: sales7@cambia.cn
