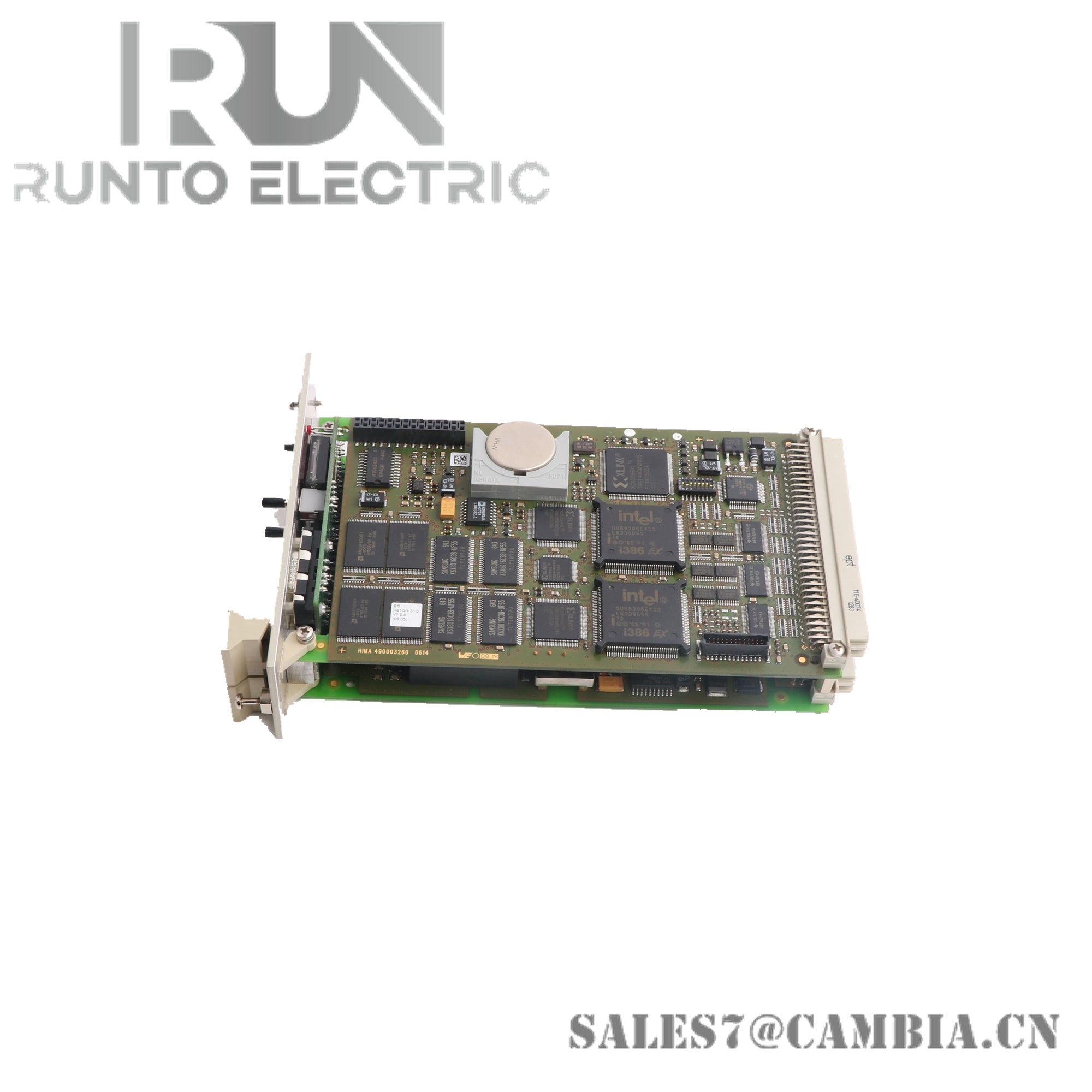

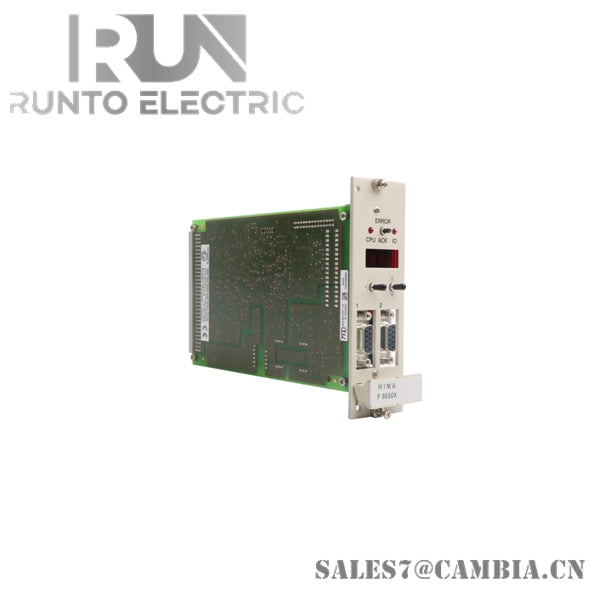

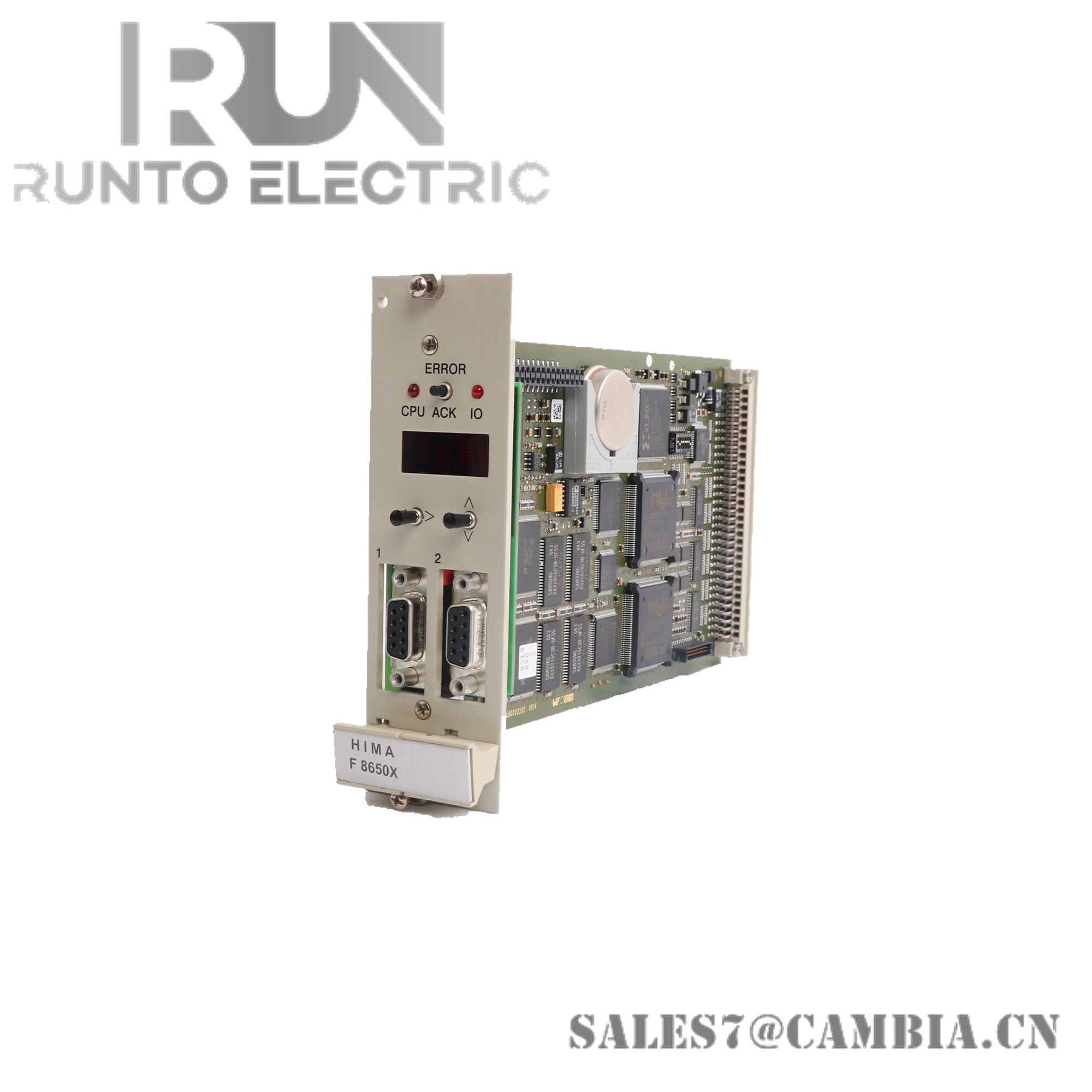

HIMA F 8650X Central CPU Module

Specifications:

• Microprocessors: Two clock-synchronized INTEL 386EX, 32-bit processors
• Clock frequency: 25 MHz
• Memory:
  • Flash-EPROM: 1 MB per microprocessor (user program and operating system share this space)
  • SRAM: 1 MB per microprocessor
• Interfaces:
  • Two electrically isolated RS-485 serial interfaces
• Diagnostic display: Four-digit matrix display
• Safety features:
  • Safety-related watchdog with output (24 V, 500 mA, short-circuit proof)
  • Shutdown on fault
• Power supply: 5 V / 2 A
• Dimensions: 4 cm x 18.5 cm x 12.7 cm (1.6 in x 7.3 in x 5 in)
• Weight: 0.32 kg (0.7 lb)
