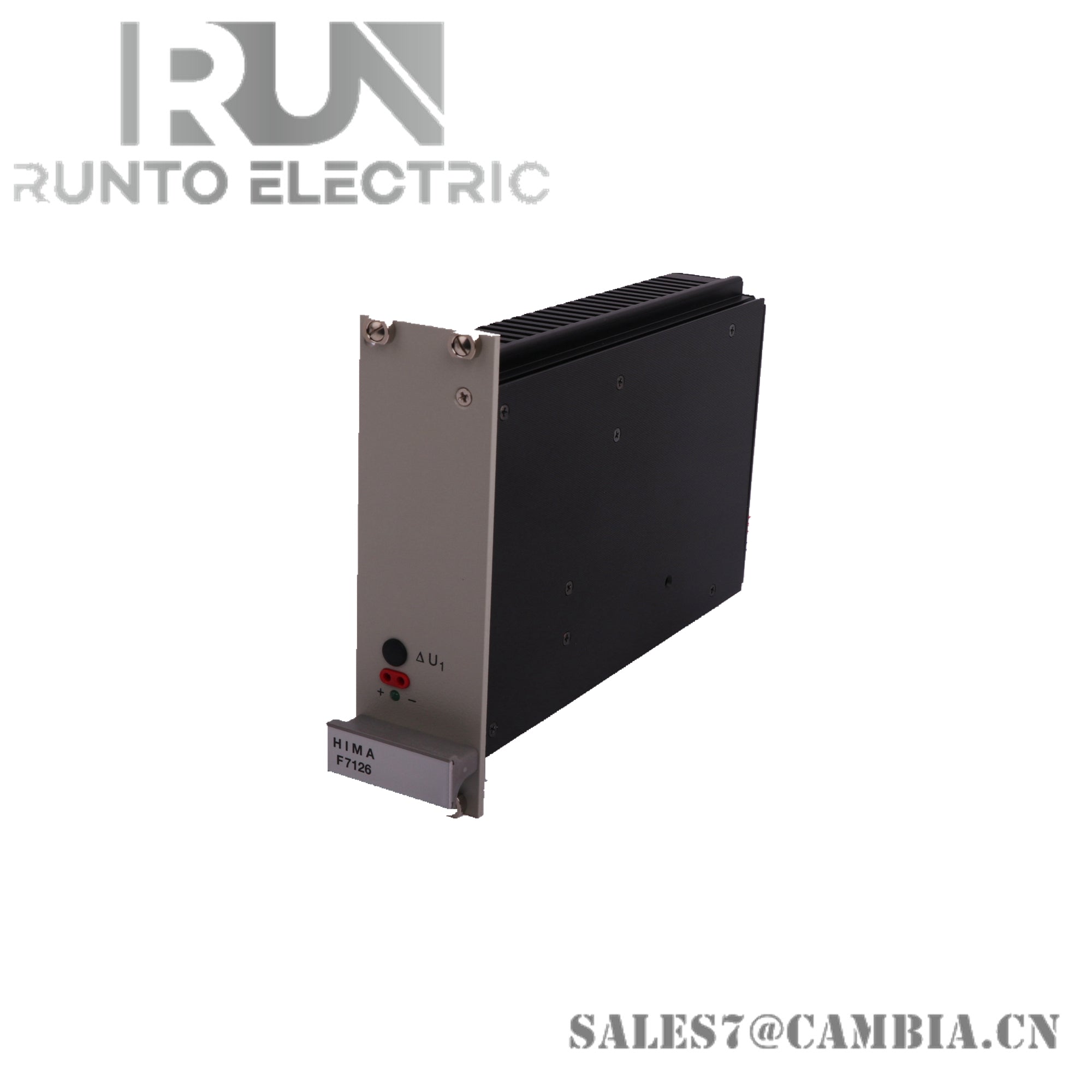

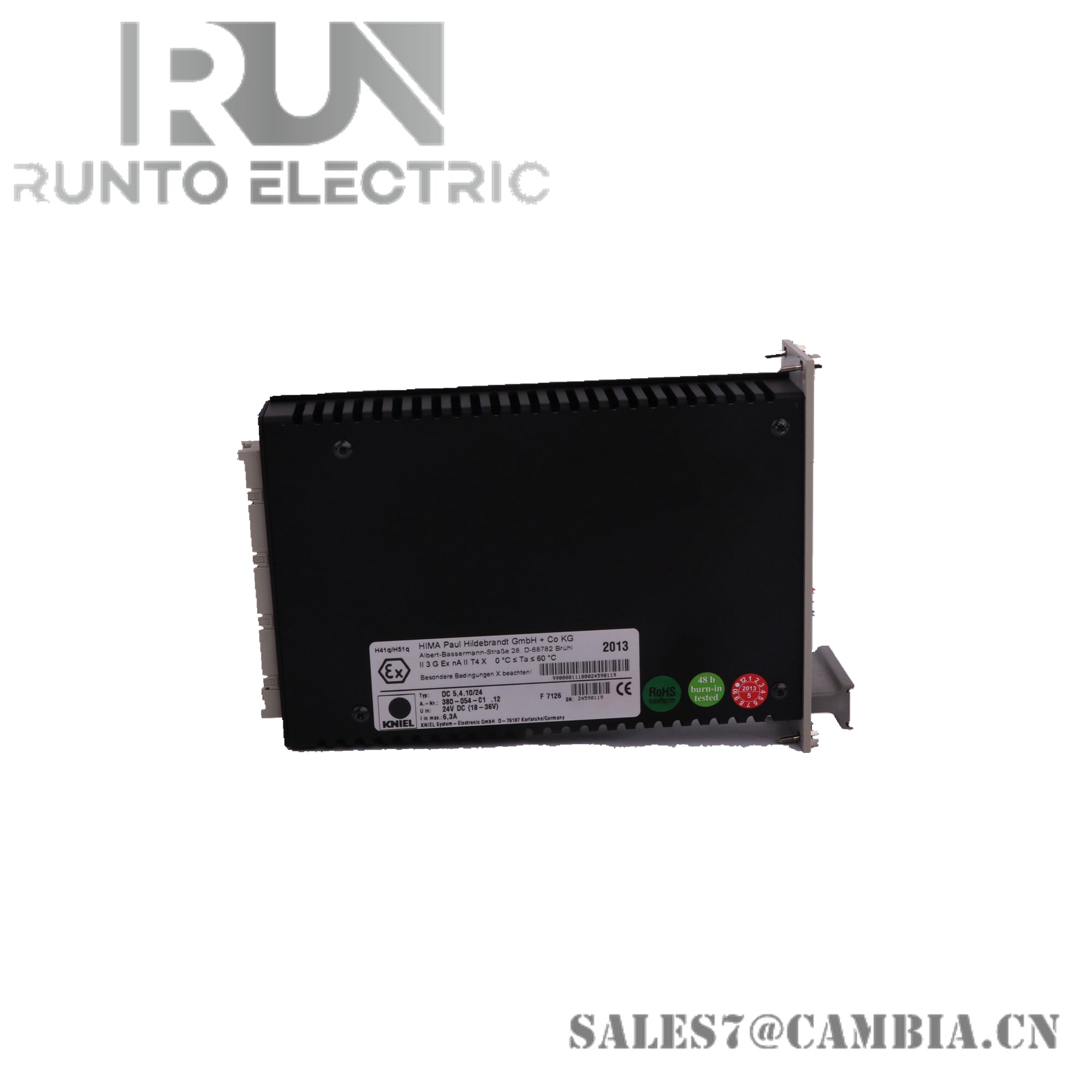

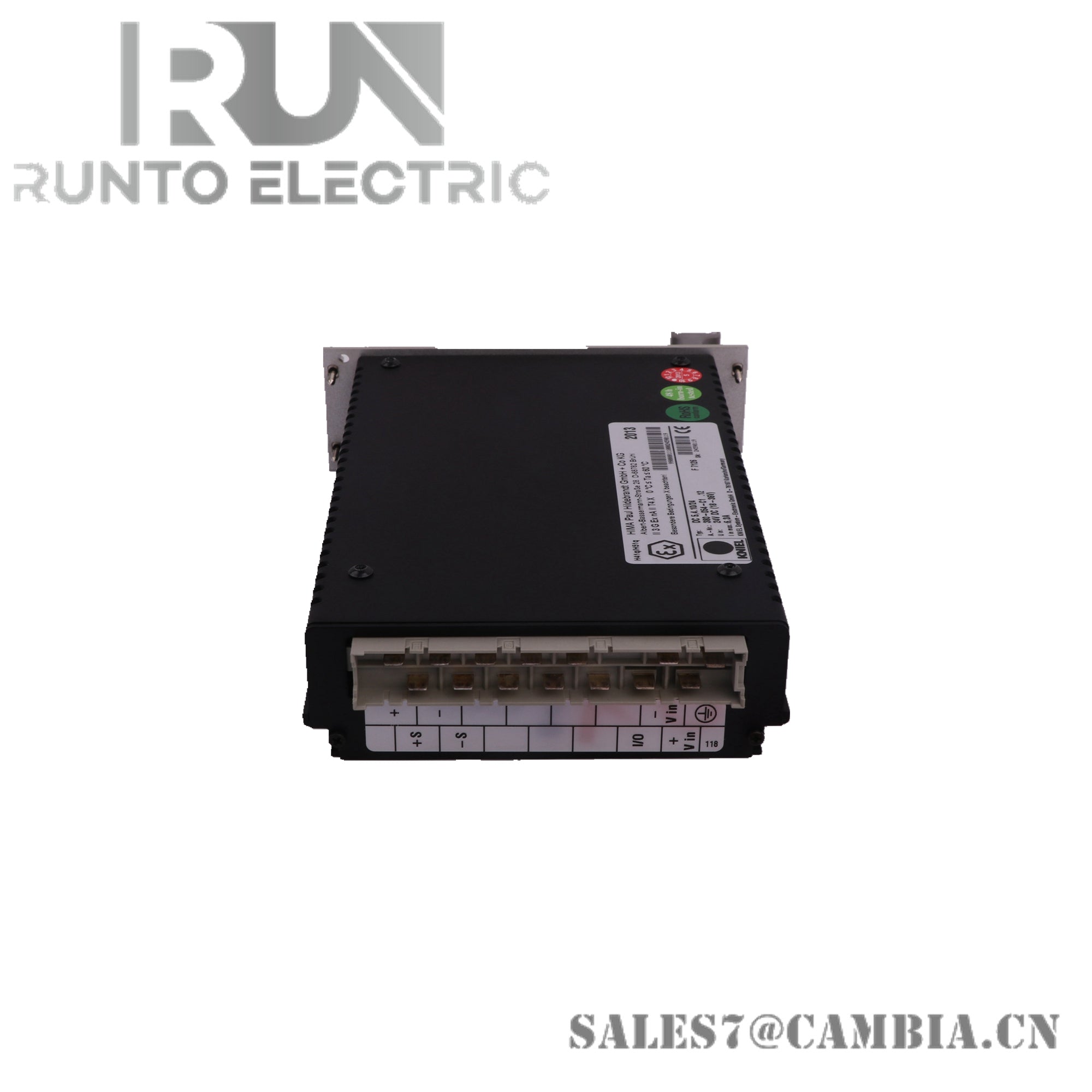

HIMA F 7126 Power Supply Module

Function:

• DC/DC converter
• Supplies 24VDC output from a main supply of 18-36VDC
• Provides safe isolation between input and output voltage

Input:Voltage range: 18 - 36 VDC

Output:

• Voltage: 24 VDC
• Current: 6.3 A

Performance:

• Overvoltage protection: Yes
• Current limitation: Yes
• Short circuit proof: Yes
• Efficiency: > 85%

Environmental:

• Operating temperature: -25 to +70 °C (-13 to +158 °F)
• Storage temperature: -40 to +85 °C (-40 to +185 °F)
• Humidity: 5 to 95% (non-condensing)

Physical:

• Dimensions: 75 x 50 x 22 mm (2.95 x 1.97 x 0.87 in)
• Weight: Approx. 150 g (0.33 lb)
