Vendor:
General Electric
GE VMIVME1150 332-001150-120 Digital Input Board
Description
Specifications:
- Dimensions: Standard VME double height Eurocard (160 x 233.5mm)
- Power Requirements: +5VDC at 1.1A (typical), 2.2A (maximum)
-
Temperature:
- Operating: 0 to +55°C
- Storage: -40 to +85°C
- Humidity: 20 to 80 percent, noncondensing
- Input Connectors: Two 64-pin DIN connectors
Features:
- 64 optically coupled digital inputs
- 5V to 48VDC input range
- High isolation: 1,000V sustained, 7,500V pulsed
- Filtered input options
- Dual I/O connectors
- Contact closure sensing
- Voltage sourcing or current sinking input options
- Positive or negative true input options
- Double Eurocard form factor with front panel
- 8- or 16-bit data transfers
- Nonprivileged or supervisory I/O access
- High reliability DIN-compatible input connectors

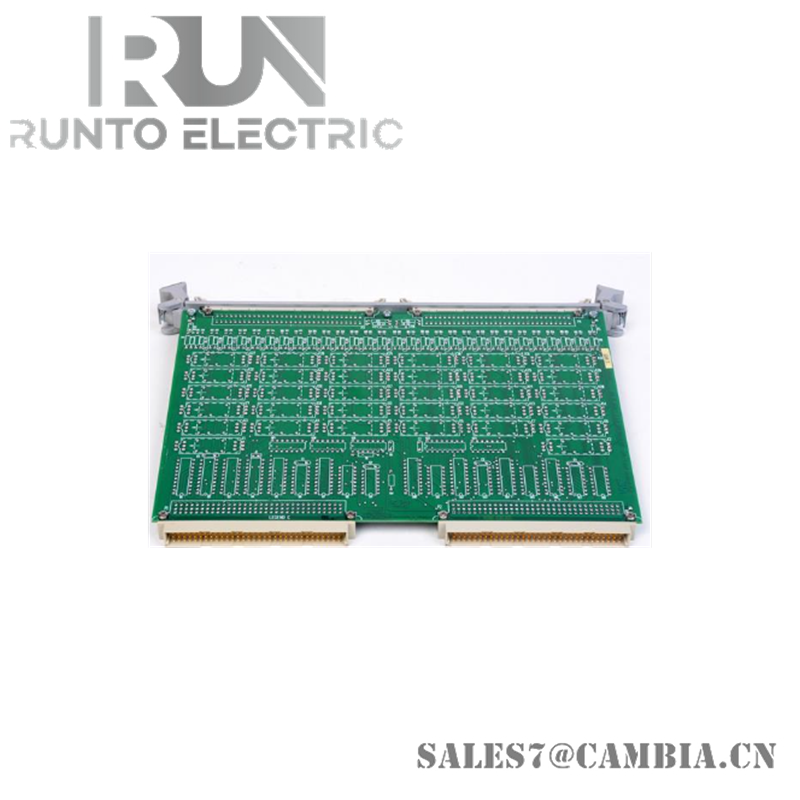

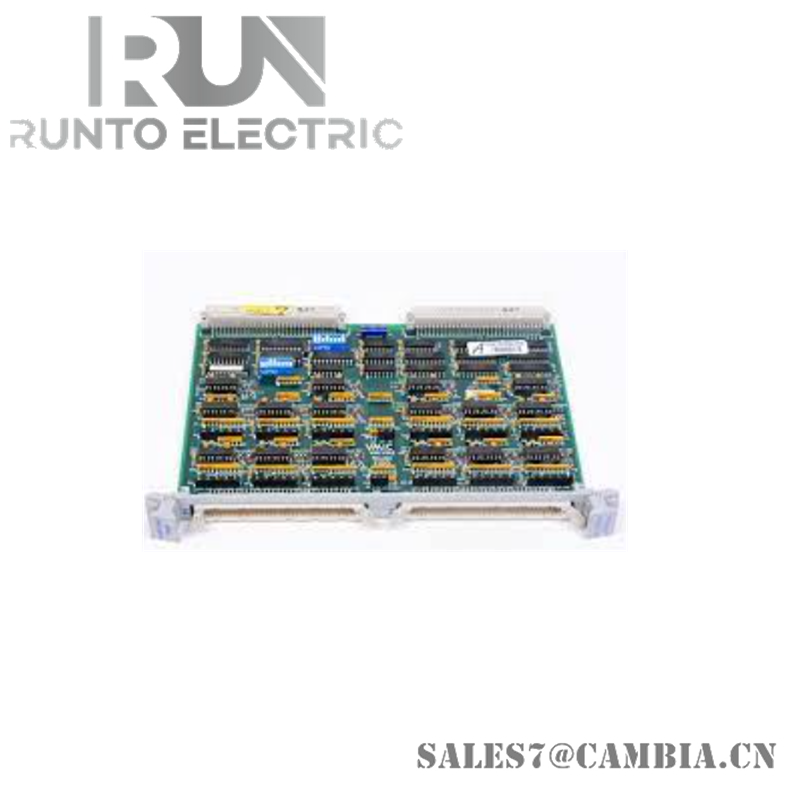

GE VMIVME1150 332-001150-120 Digital Input Board
![GE VMIVME1150 332-001150-120 Digital Input Board](http://www.runtoelectronic.com/cdn/shop/files/VMIVME1150332-001150-120_1.png?v=1721181940&width=800)
![GE VMIVME1150 332-001150-120 Digital Input Board](http://www.runtoelectronic.com/cdn/shop/files/VMIVME1150332-001150-120_2.png?v=1721181940&width=800)
