Description

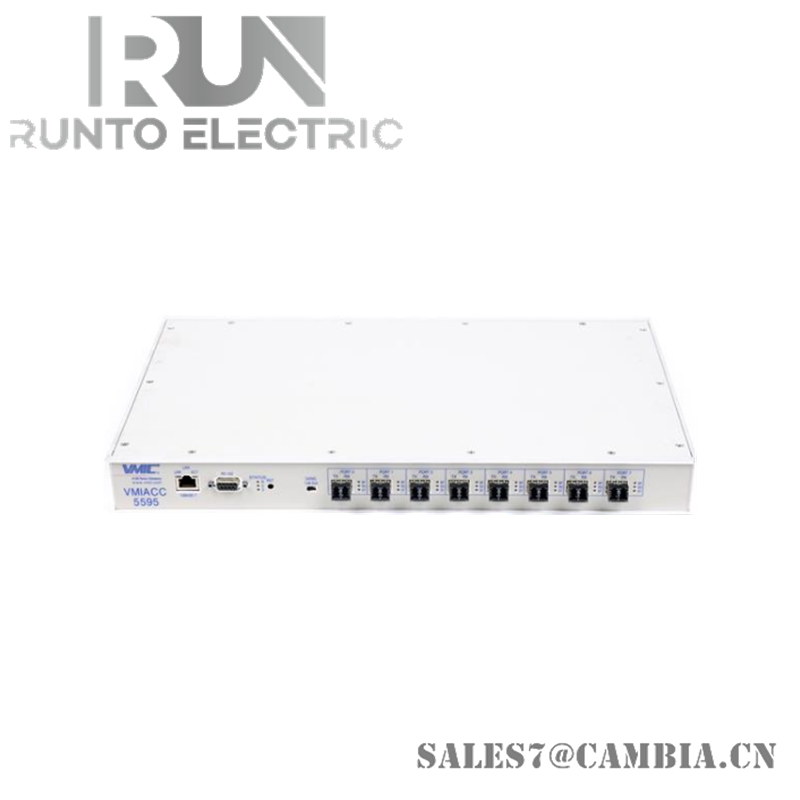

The VMIACC-5595-208 is part of GE’s reflective memory network product line, designed to provide reliable and high-speed data transfer for industrial automation, telecommunications, military, aerospace, and transportation applications.
Features
-
Connectivity: Supports up to eight ports with small form factor pluggable (SFP) transceivers.
-
Fiber Optics Support: Compatible with multimode and single-mode fiber optics, with a maximum link distance of 10 km.
-
Performance: Offers a data transfer rate of 2 Gb/s, with automatic bypass of defective or disconnected nodes to enhance network reliability.
-
Signal Regeneration: Regenerates the serial optical signal at each port to minimize signal loss and jitter.
-
Scalability: Can be cascaded with up to 256 nodes for extensive network deployments.
-
Management: Features a 10BaseT Ethernet TCP/IP port for remote access and configuration, and an RS232 port for local access and control.
-
Enclosure Options: Available in a 19-inch 1U rack mount or desktop enclosure.
-
Power Supply: Includes an internal universal power supply.
-
Dark on Dark Option: Reduces power consumption by turning off the board’s transmitter when no signal is detected by the receiver.
Specifications
-
Type: Reflective Memory Hub Assembly
-
Series: GE Speedtronic Mark V
-
Dimensions: 120 x 80 x 40 mm
-
Weight: 1.2 kg
-
Data Transfer Rate: 2 Gb/s
-
Maximum Link Distance: 10 km
-
Ports: Up to 8 SFP transceivers
-
Communication Ports: 10BaseT Ethernet TCP/IP, RS232
