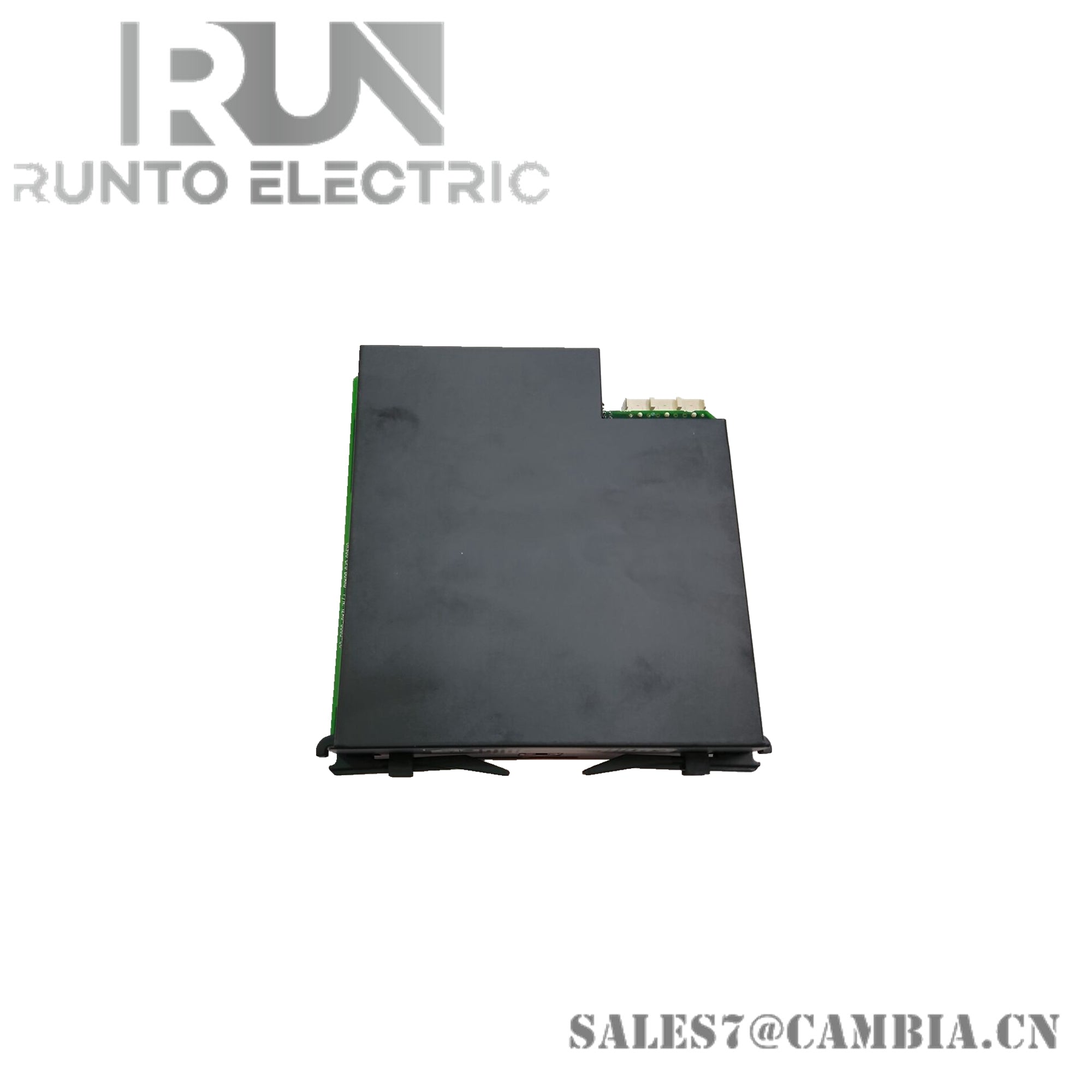

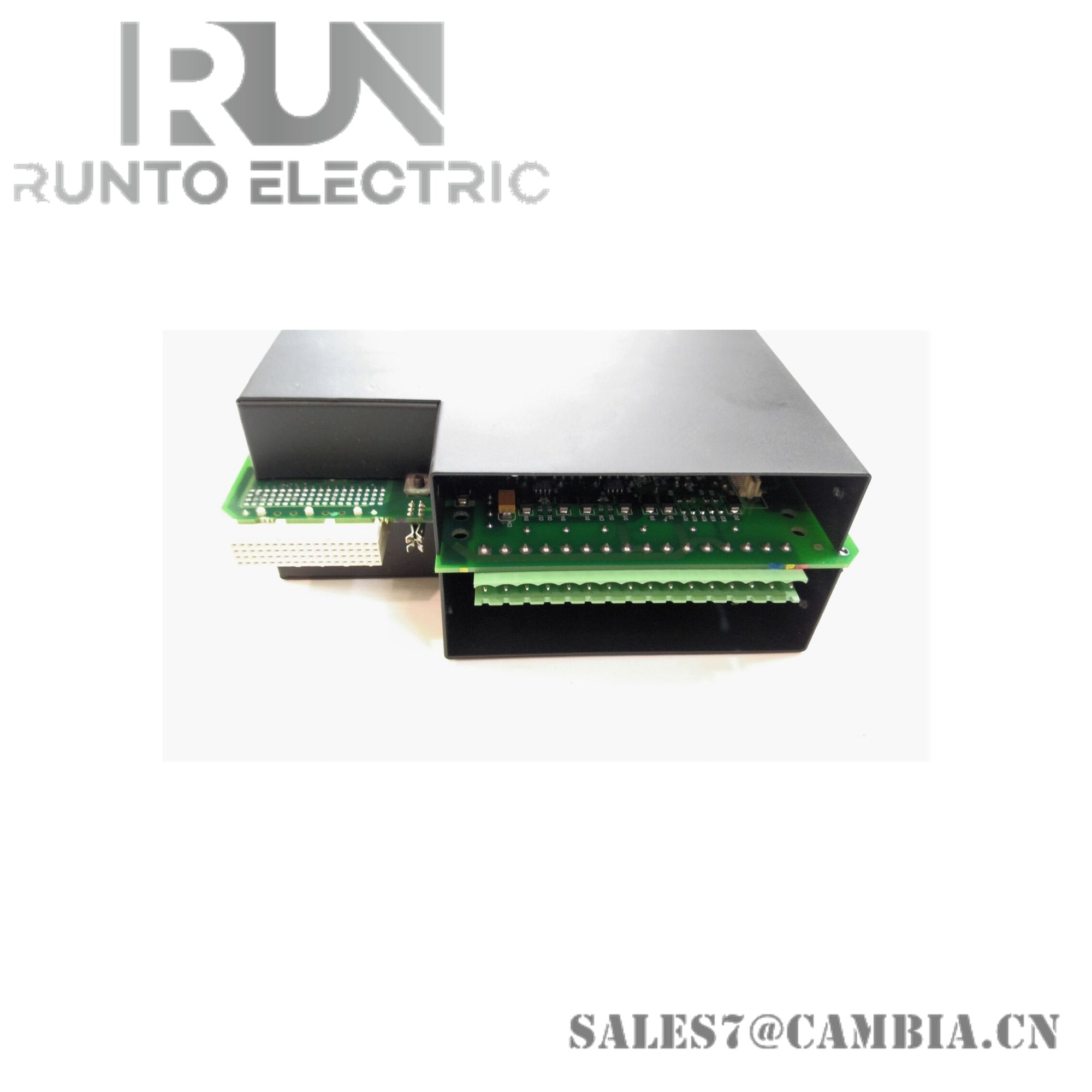

GE Multilin UR 8FV UR-8FV Module

GE UR-8FV is a CT/VT Module designed for the GE Multilin UR Series Universal Relays, providing the relay with analog inputs for measuring voltage and current signals from sensors and other devices. Here are its key specifications:

General:

• Manufacturer: GE Multilin

• Product Type: CT/VT Module

• Product No.: UR-8FV

• Number of channels:
  • 3 x 1A/5A phase CT inputs
  • 1 x 1A/5A ground CT input
  • 1 x Four-terminal voltage transformer input

• Input ranges:
  • CT: 1A or 5A
  • VT: 115V, 230V, 460V, or 575V

• Measurement accuracy:
  • Current: ±0.5% FS
  • Voltage: ±0.2% FS

• Frequency range: 45-65 Hz

• Burdens:
  • CT: 0.05 VA
  • VT: 0.5 VA

• Operating temperature range: -40°C to +70°C (-40°F to +158°F)

• Storage temperature range: -40°C to +85°C (-40°F to +185°F)

• Approvals: UL 508, CSA C22.2 No. 14-13

• Warranty: 12 months
