GE Multilin 369-HI-0-0-0-0 360 Motor Management Relay

Control Power Input Range: 110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Ground Current Input Frequency: 20 to 100 Hz
Operating Range: -40°F to +140°F
Phase Current Input Conversion: True RMS, 1.04ms/mple
Software: EnerVista 369
Storage Range: -40°F to +176°F
Waveform Capture Length: 3 buffers containing 16 cycles of all current and voltage channels Product Description

When you need designated protection and monitoring for your three-phase motors and mechanical systems, the 369 Motor Management Relay series is the ideal option. In providing the FlexCurve custom overflow curve, you gain the highest amount of motor protection in a single relay. The 369-HI-0-0-0-0 model also features a learning capability and is able to identify and accommodate individual motor parameters. This adaptation ability allows your system to perform in ways that are suitable to specific industrial applications. So if management versatility is something your equipment could use, this is the series for you. We offer a range of 369 Motor Management Relay systems at prices that accommodate a vast range of equipment budgets.

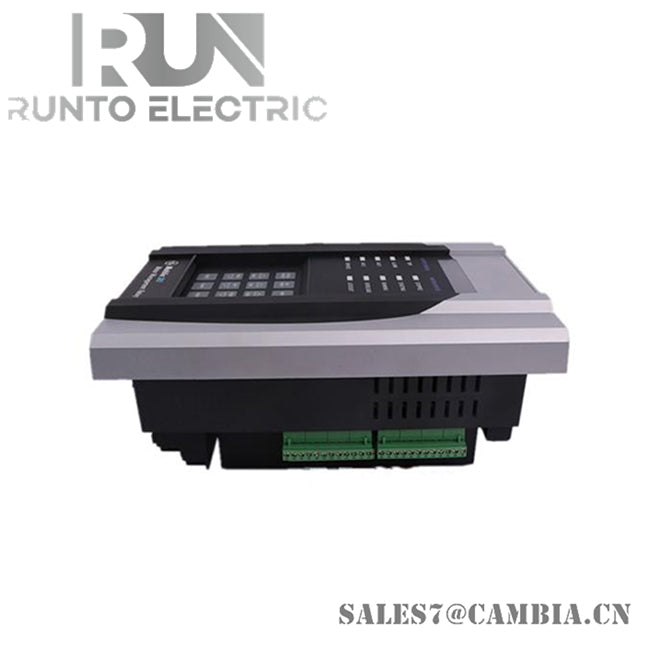

The 369-HI-0-0-0-0 has an approximate height of 30 centimeters, an approximate length of 21 centimeters, and an approximate width of 11 centimeters. The unit is mounted in a DEMO metal carry case, which offers corrosion and flame retardant features. The 369-HI-0-0-0-0 has an in-case weight of 10 lbs and an out-of-case weight of approximately 8 lbs. Strong magnetic fields and high current conductors can damage the relay when in close proximity, so users should take care to mount the relay away from such hazards. The front of the relay is divided into roughly four sections, containing a liquid crystal display, a number of LED indicators, a keypad for manual setpoint entry and navigation, and an RS232 port to connect computers running General Electric's industry-leading software program, EnerVista 369.
