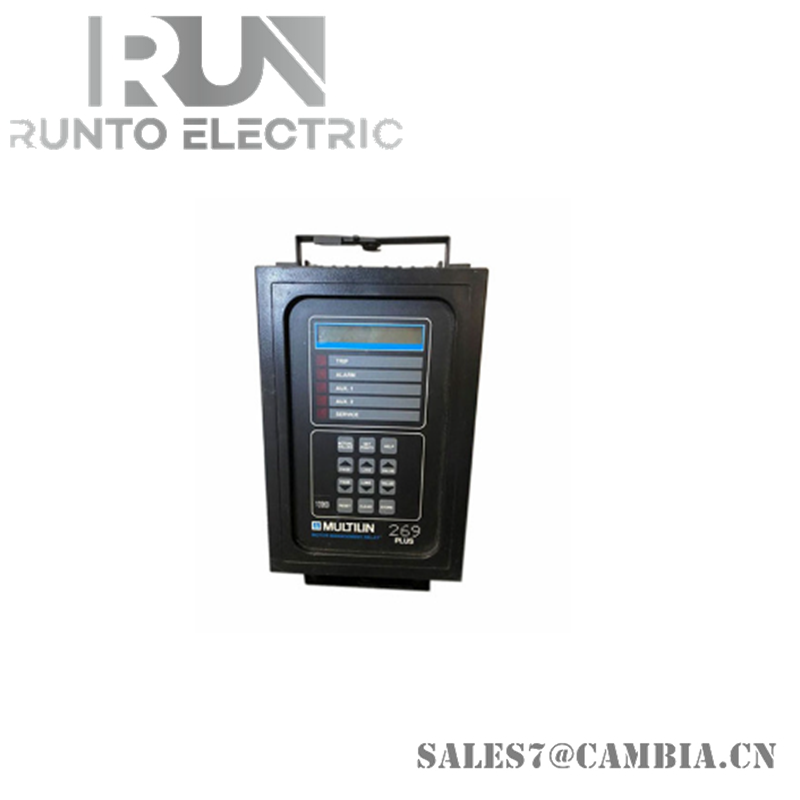

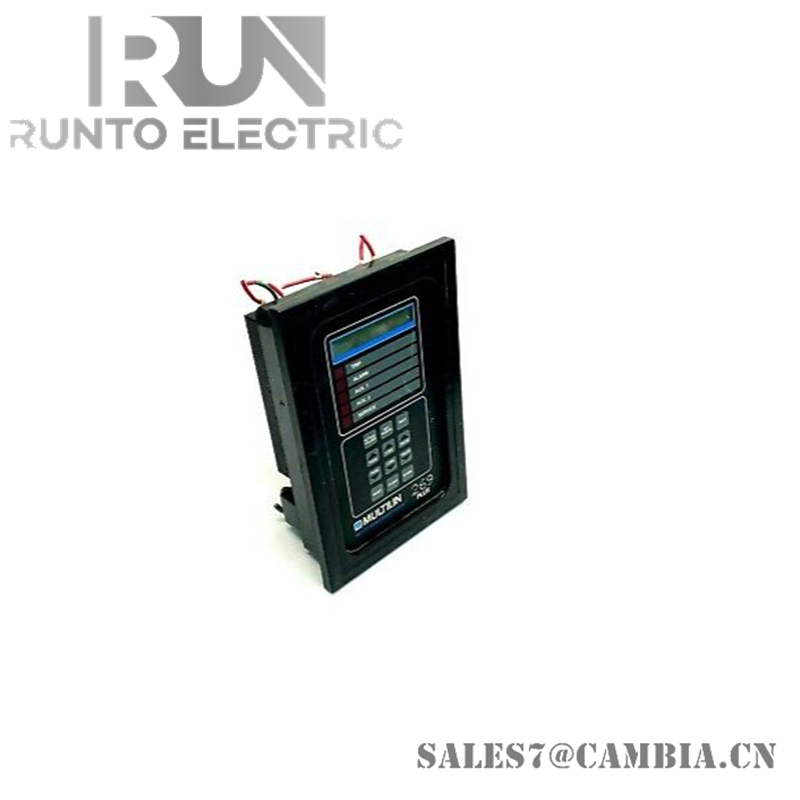

GE Multilin 269PLUS-100P-HI Motor Management Relay

Description

The 269PLUS-100P-HI is designed for the monitoring and protection of medium-sized motors. It features a 100 Ohm platinum RTD (Resistance Temperature Detector) and provides advanced motor protection capabilities.

Specifications

• Power Input: 100 ~ 240V AC
• Power Output: 100W
• Dimensions: 11.40 inches x 7.50 inches x 16.00 inches (W x H x D)
• Weight: 7.75 lb (3.52 kg)
• Operating Temperature: -25°C to 60°C
• Inputs: Includes meter communication port, spare input, differential relay input, speed switch input, programming access jumper or keyswitch, external reset pushbutton, emergency restart keyswitch, 6 stator RTDs, 4 additional RTDs, ground fault CTs, phase CTs, supply power terminals, and universal AC/DC supply
• Outputs: Four output relays, one analog input, and five digital inputs (factory programmed)

Features

• Motor Protection: Protects motors and equipment from operator abuse, shock hazards, mechanical jams, loss of suction or airflow, excessive heat buildup, and varying ambient temperatures
• Custom Overload Curve: Allows for custom overload curve creation with user-defined breakpoints
• Actual Values Mode: Enables examination of all actual motor operating parameters
• Setpoints Mode: Allows for examination and alteration of all trip, alarm, and other relay setpoints
• Advanced Diagnostics: Provides real-time fault messages and diagnostics
