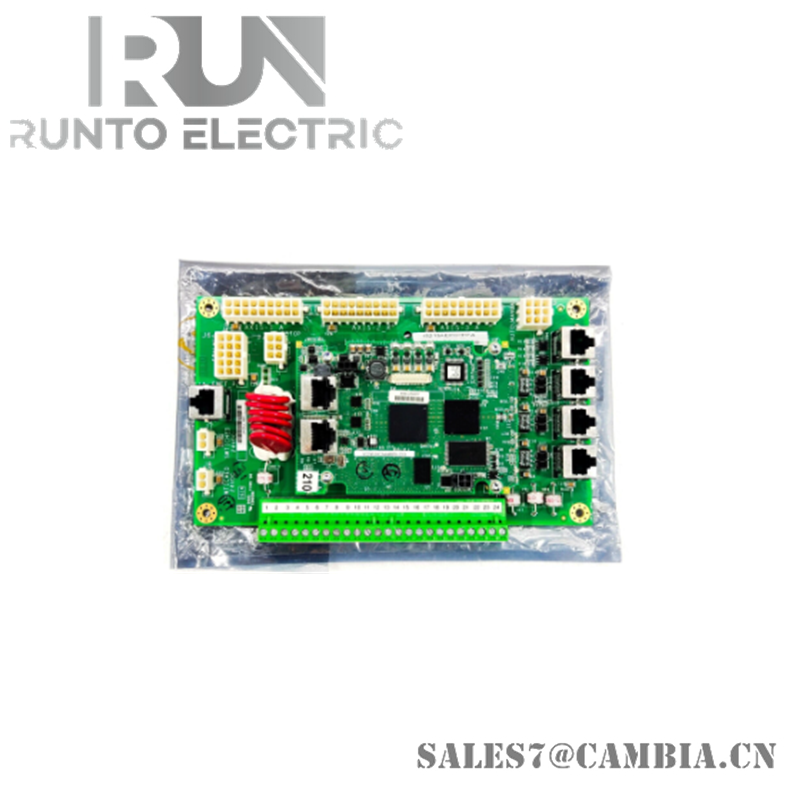

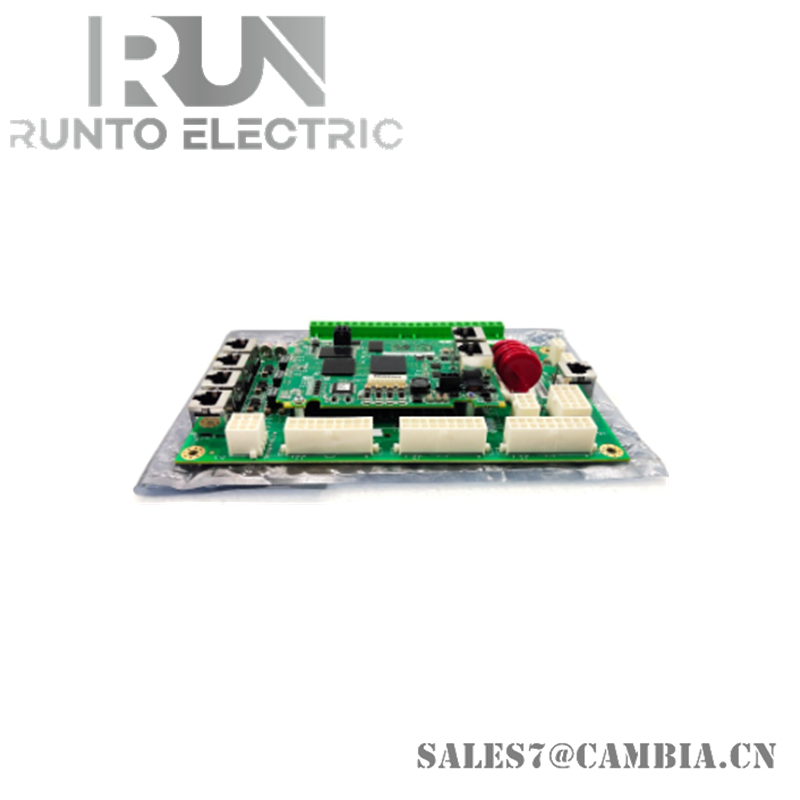

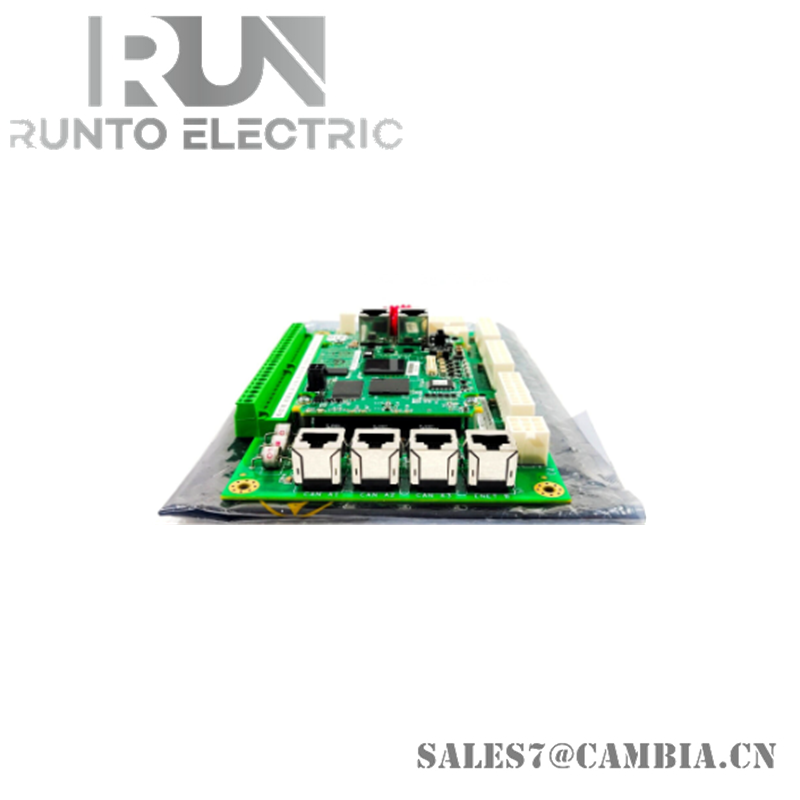

GE Mark VI IS200AEPCH1CCB Speedtronic Turbine Control PCB board

Description:

The IS200AEPCH1CCB is a circuit board component designed for use within the Mark VI control system by General Electric. This system is engineered to ensure the reliable and safe operation of industrial gas or steam turbine units. Unlike many GE circuit boards used in Speedtronic systems, the IS200AEPCH1CCB does not feature an attached faceplate.

Key Features:

• Mounting and Construction:

  • The board is factory-drilled at several locations, including corner holes with conductive material rings around each opening. Additional mounting holes are placed along the board’s edges and within its body.
  • It includes one auxiliary (daughter) board mounted with screws and standoffs. This daughter board features integrated circuits, including FPBA (field-programmable gate arrays), along with female connectors and other connectors.

• Component Overview:

  • The main board is populated with various components such as terminal strips, integrated circuits, fuses, and multiple male connectors.
  • The auxiliary board is marked with identifying codes like FA/00 and DCOM and includes transistors, diodes, resistors, and capacitors.

• Identification:

  • The IS200AEPCH1CCB has two barcodes located side by side in one corner. It also bears several identifying codes similar to those on the auxiliary board.
  • Most components on both the primary and auxiliary boards are labeled with reference designations to aid in identification.
