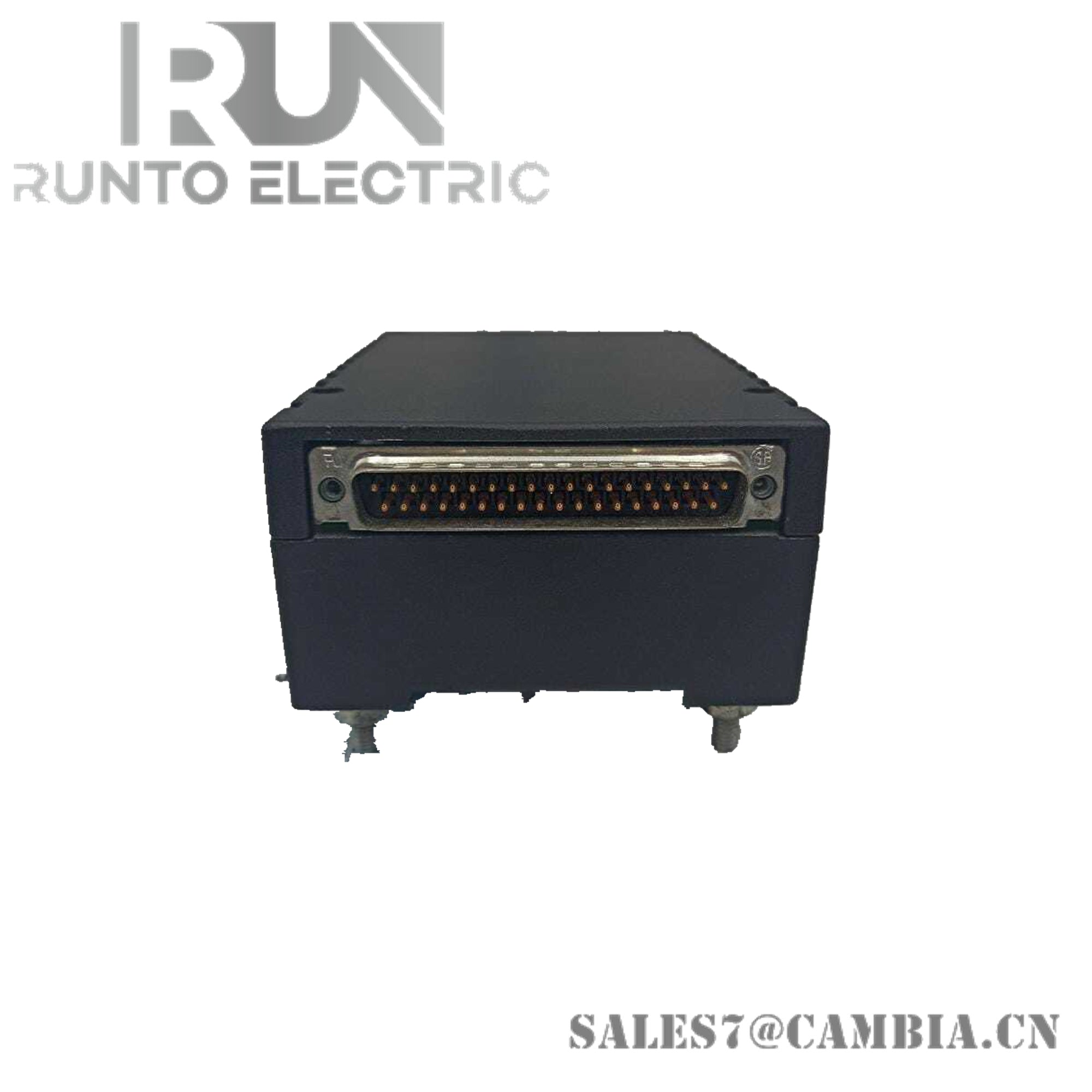

GE IS220PDIAH1A Discrete Contact Input Terminal Board

Description：

The IS220PDIAH1A is a Discrete Contact Input Terminal Board manufactured by General Electric as part of the Mark VIe Series, used in GE Distributed Turbine Control Systems. The PDIA I/O pack provides the electrical interface between one or two I/O Ethernet networks and a discrete input terminal board. This pack contains a processor board common to all Mark VIe distributed I/O packs, along with an acquisition board specific to the discrete input function. It accepts up to 24 contact inputs and terminal board-specific feedback signals, with support for three different voltage levels (using types TBCIH1, H2, and H3 terminal boards).

Specifications：

• Part Number: IS220PDIAH1A
• Manufacturer: General Electric
• Product Type: Discrete Contact Input Terminal Board
• Function: I/O Module
• Series: Mark VIe
• Number of Channels: 24
• Operating Temperature: -40 to +70 °C
• Size: 15.9 cm (H) x 17.8 cm (W)
• Input Isolation in Pack: Optical isolation to 1500 V on all inputs
• Input Filter: Hardware Filter, 4 ms
• AC Voltage Rejection: 60 V rms at 50/60 Hz with 125 V DC excitation
• Availability: In Stock
• Weight: 0.8 kg
• Repair Time: 3-7 Days
• Country of Origin: USA
• Manual: GEH-6721D
