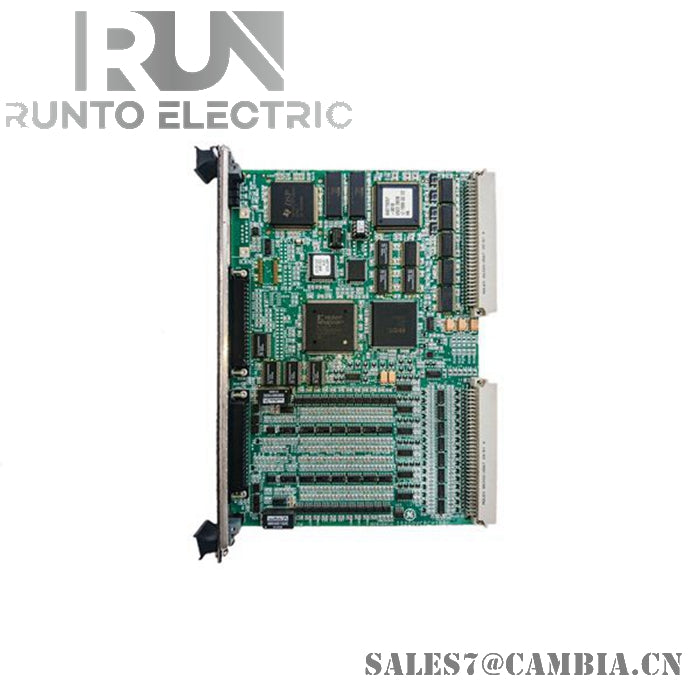

GE IS200AEPAH1AFD Printed Circuit Board

Overview

The IS200AEPAH1AFD is a printed circuit board (PCB) designed for the Mark VIe series by General Electric, used for gas and steam turbine control and monitoring. It provides essential processing, communication, and protection capabilities, ensuring efficient turbine management and reliable operation within industrial environments.

Specifications

• Dimensions: 160 mm x 120 mm x 20 mm
• Weight: 0.3 kg
• Input Voltage: 24 VDC
• Power Consumption: 10 W
• Operating Temperature Range: -40°C to +70°C, suitable for extreme industrial environments.
• Signal Processing Speed: 100 MHz, allowing for fast and efficient data processing.
• Mounting Type: Rack Mount, designed for easy installation in standard industrial racks.
• Redundancy Support: Yes, ensuring system reliability and minimizing downtime.
• Compliance Standards: CE, UL, RoHS certified, meeting international standards for safety and environmental requirements.

Features

• Auxiliary Board Compatibility: Can be connected to an optional auxiliary board using two-pin connectors, providing flexibility for system expansion or customization.
• Surge Protection: Includes six metal oxide varistors (MOVs) for surge protection, safeguarding the PCB from voltage spikes.
• Communication Options: Supports communication via IONet or Unit Data Highway (UDH) for integration with other system components.
• Relays and Connectors: Equipped with twelve relays and seventeen female-pin vertical connectors, ensuring versatile connection options.
• Integrated Circuits: Contains hundreds of standard integrated circuits, resistors, transistors, and capacitors, ensuring robust and reliable operation of the system.
