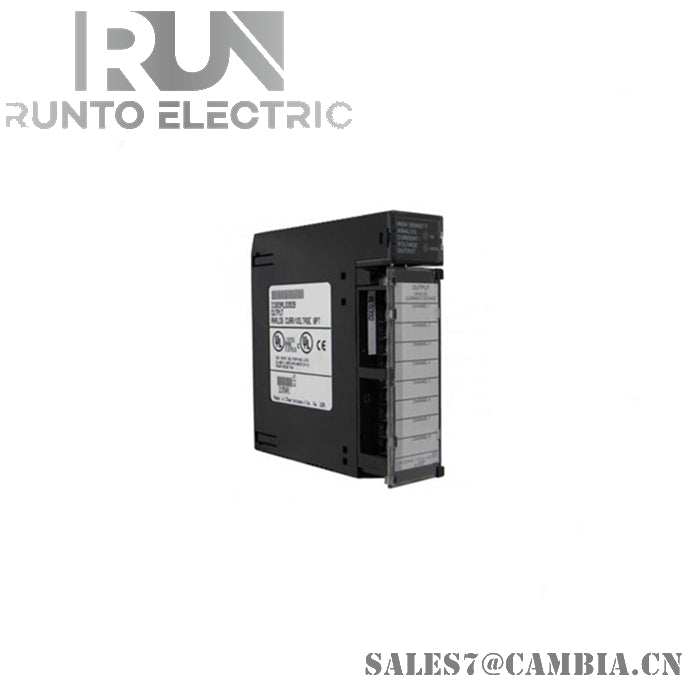

GE IC694ALG223 Fanuc RX3i Analog Input Module

Description:

The RX3i IO is designed for mission-critical discrete and process applications. This rack-based IO offers advanced diagnostics and outstanding flexibility, featuring a wide range of standard and advanced IO options.

Specifications:

• Part Number: IC694ALG223
• Analog Input Count & Type: 16 Channel; 4-20 mA; 0-20 mA
• Resolution & Speed: 12 Bit; 13 ms
• Current Consumption: 120 mA @ 5 VDC; 65 mA User Supplied 24 VDC
• Agency Approvals: UL, UL HAZLOC
• Certifications: Zone 2, CE, ATEX, C1D2, ABS, BV, DNV, GL, KRS, LR
• Mounting Format: On Panel/DIN Rail

Features:

• High-Speed Technology: Patented technology for faster throughput.
• Hot Swap Capability: Allows for maintenance without system downtime.
