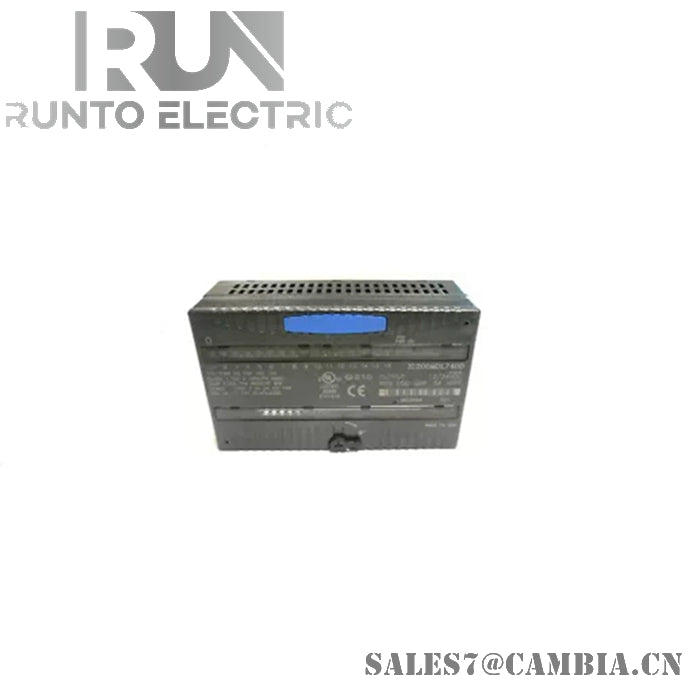

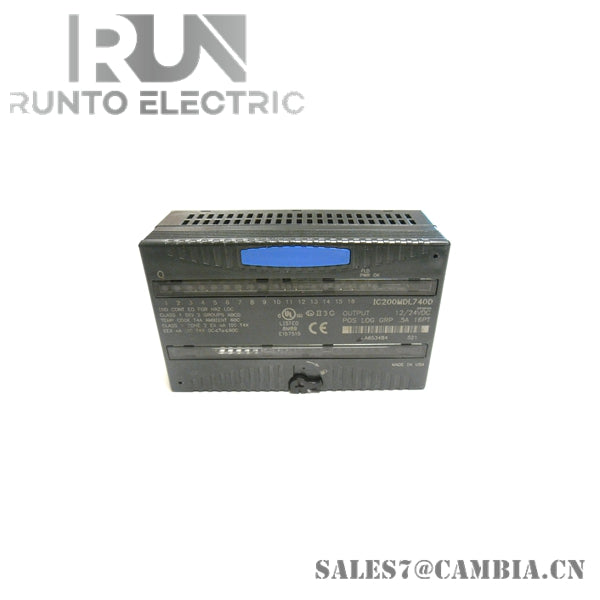

GE IC200MDL740 Discrete Output Module

Description

This IC200MDL740 module provides 16 discrete output points in a single group. It operates with a 12/24 VDC external power supply and is optimized for controlling various field devices in industrial environments. The IC200MDL740 is known for its reliability and ease of integration into VersaMax systems.

Specifications

• Output Voltage: 10.2 to 30 VDC (12/24 VDC nominal).
• Number of Outputs: 16 discrete outputs.
• Output Current:
  • 0.5 A per point (resistive load).
  • 2.0 A maximum inrush current for 100 ms.
• Response Time:
  • Maximum ON: 0.2 ms.
  • Maximum OFF: 1.0 ms.
• Backplane Power Consumption: 45 mA at 5 VDC.
• Isolation:
  • User to logic: 250 VAC continuous, 1500 VAC for 1 minute.
  • Group-to-group isolation: Not applicable.
• Operating Temperature: 0°C to 60°C (32°F to 140°F).

Features

• Positive Logic Outputs: Sourcing type outputs that supply current to the load.
• LED Indicators: Each output point has an individual LED to indicate its on/off status.
• Compact Design: Space-saving form factor for easy installation.
• Durable Construction: Built to withstand harsh industrial conditions.
• Ease of Maintenance: Hot-swappable design allows for replacement without system downtime.
