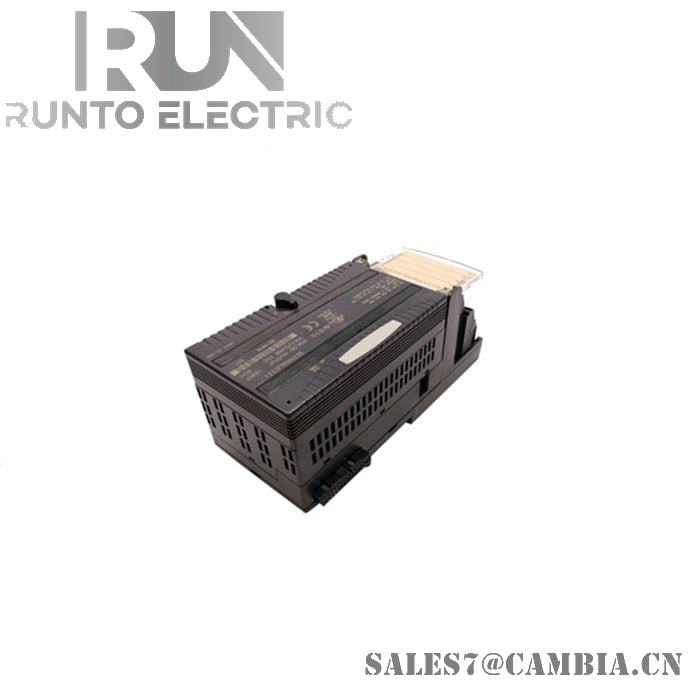

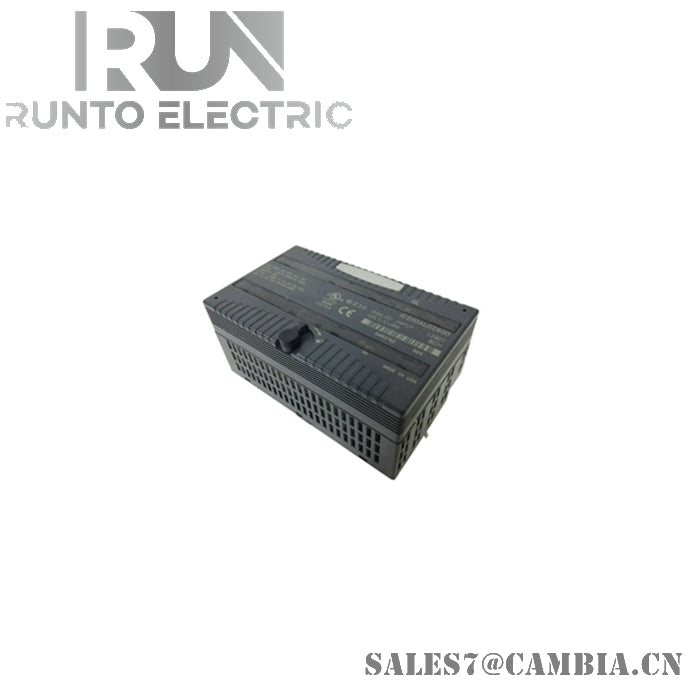

GE IC200ALG260 Analog Input Module

Description

The IC200ALG260 module provides an interface for analog signals, converting them into digital data for processing. It is commonly used in systems requiring precise monitoring and control of voltage or current inputs.

Specifications

• Type: Analog Input Module.
• Channels: 8 single-ended analog input channels.
• Input Signal Types: Configurable for voltage (-10V to +10V) or current (4-20 mA).
• Resolution: 12-bit for accurate signal conversion.
• Power Supply: Powered by the backplane; no external power source required.
• Backplane Current Consumption: 130 mA at 5V DC.
• Isolation: 250 VAC continuous, 1500 VAC for 1 minute (user input to logic and frame ground).

Features

• Versatility: Supports both voltage and current input signals.
• LED Indicators: Includes "INT PWR" and "OK" LEDs for power and status monitoring.
• Ease of Configuration: Jumpers allow selection of voltage/current mode and unipolar/bipolar operation.
• Diagnostics: Reports faults like loss of internal power for field-side circuits.
• Compact Design: Fits seamlessly into VersaMax systems.
