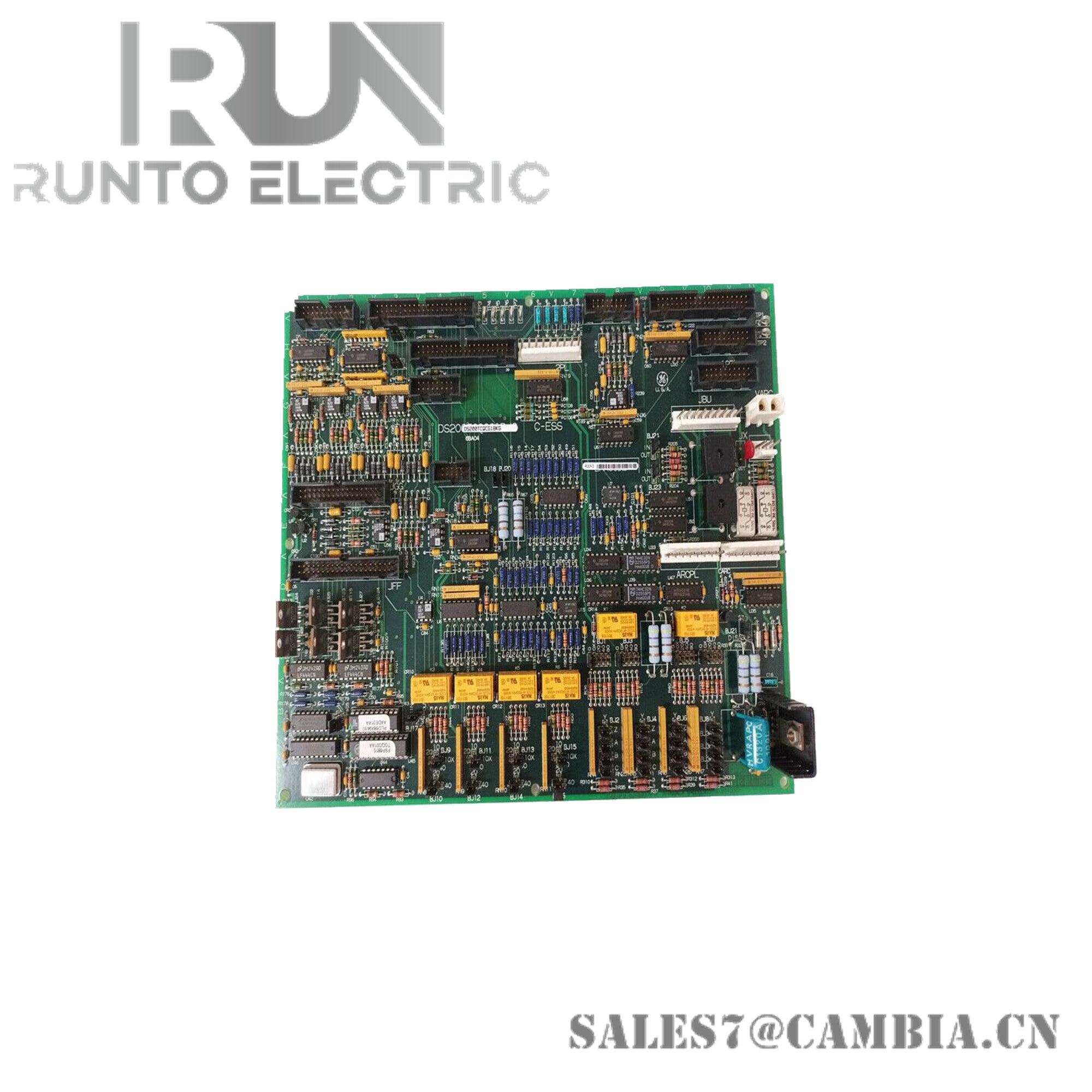

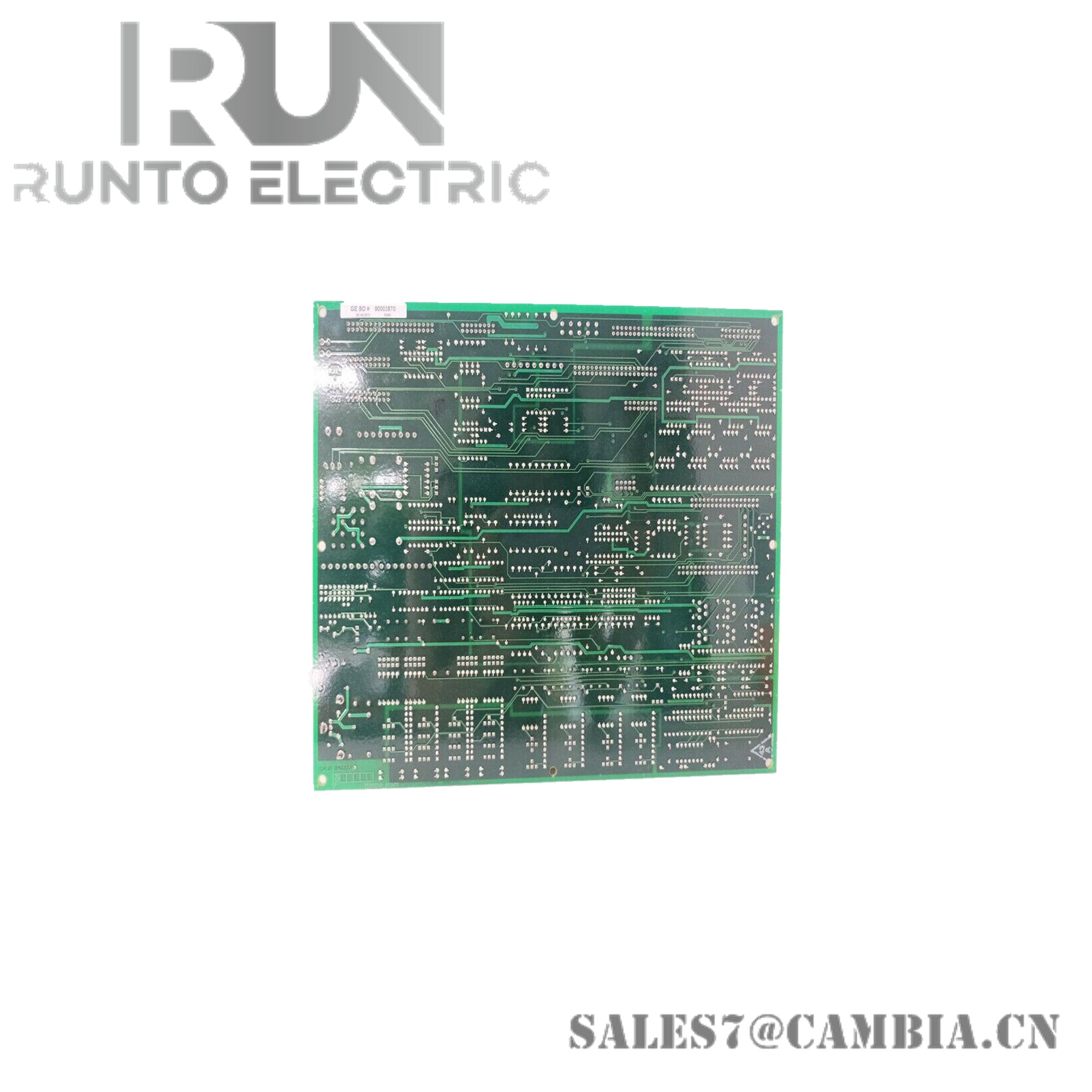

GE I/O TC2000 DS200TCCAG1BAA Analog Board

► Product Description

DS200TCCAG1BAA MODULE

 The GE I/O TC2000 DS200TCCAG1BAA analog board is a module used in industrial control systems. It has the following functions and working principles:
Function:
-Data acquisition: The analog board can receive and collect analog signals from sensors and other analog input devices.
-Signal processing: The analog board can amplify, filter, and linearize the collected signals for interaction with the control system.
-Data output: The analog board can output the processed signal to the control system for further processing and decision-making.
Working principle:
1. Input signal acquisition: The analog board receives analog signals by connecting to sensors or other analog input devices.
2. Signal processing: The received signal is processed through amplification, filtering, and linearization to ensure its accuracy and stability.
3. Data output: The processed signal is transmitted to the control system through the analog output port for further analysis and control.
Technical parameters:
-Number of input channels: This analog board may have multiple input channels, depending on the model and configuration.
-Input range: The range of input signals that an analog board can receive, usually expressed as voltage or current.
-Resolution: The accuracy of the analog board in sampling and quantifying input signals.
-Output range: The range of analog board output signals, usually expressed in voltage or current.
-Power supply requirements: The power supply voltage and power requirements required for the analog board.
Please note that the above information is based on general understanding and assumptions, and specific functions, working principles, and technical parameters may vary depending on the model and configuration. Suggest consulting relevant product documentation or consulting GE for more detailed and accurate information.
