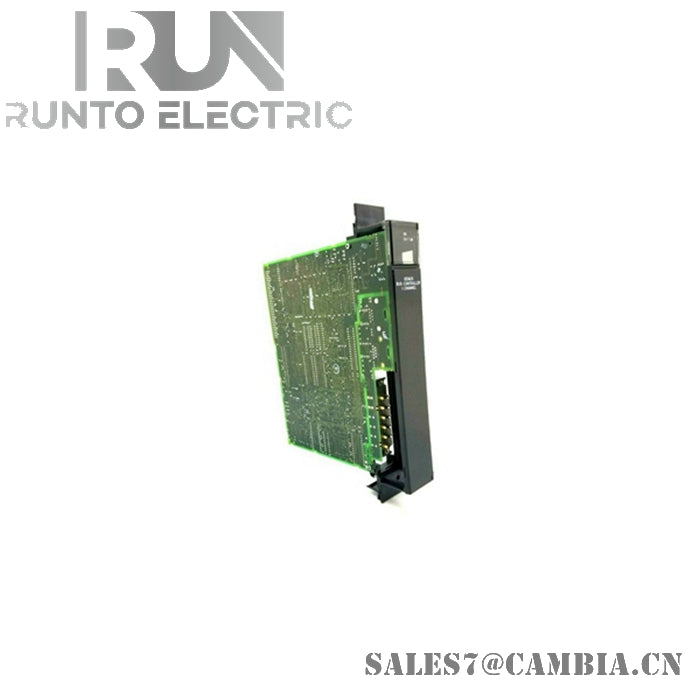

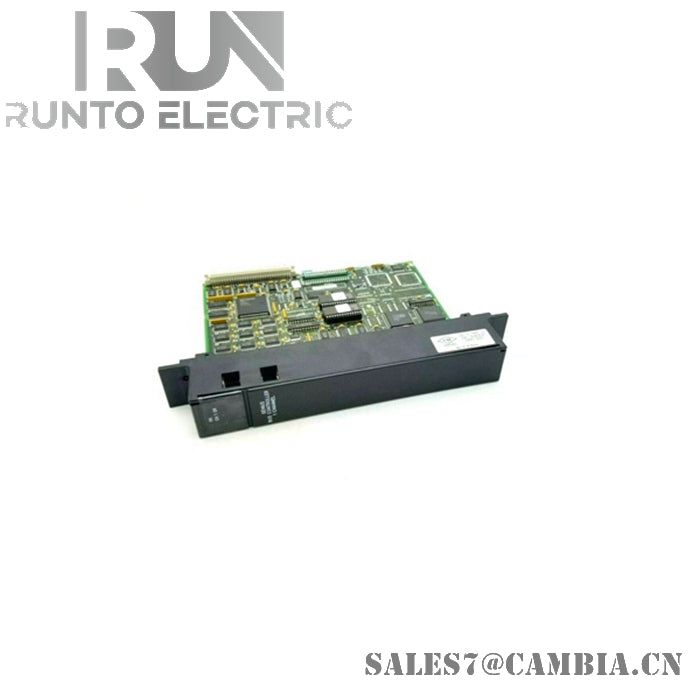

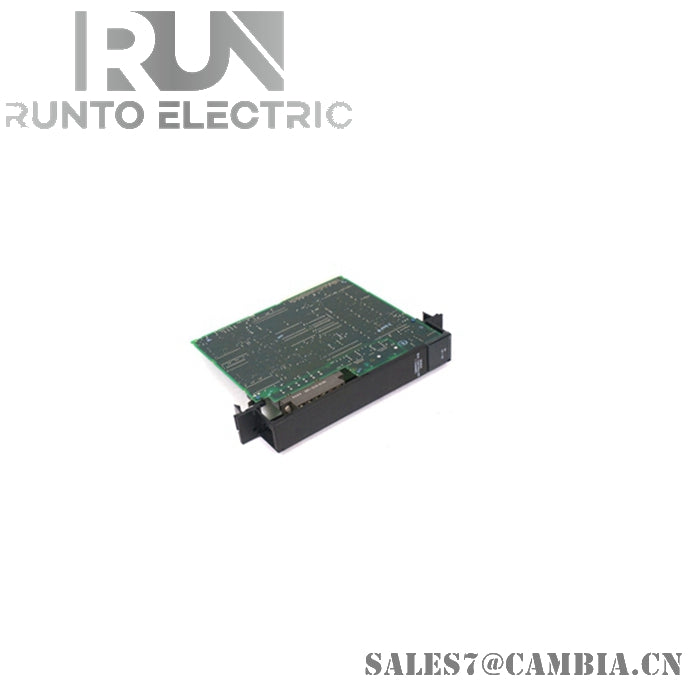

GE Fanuc IC697BEM711 Bus Receiver Module

key features and specifications:

• Functionality: Facilitates expansion from the main CPU rack by allowing additional modules to be added. Supports up to seven additional IC697 PLC racks. Provides a high-performance parallel interface to the programming device.
• Interface: The module has two connectors. The top connector is for attachment to the programming device, and the bottom connector is for a daisy-chained arrangement through Bus Receiver Modules to expansion racks.
• Indicators: Three green LEDs provide status indication of each port and module status.
• Configuration: Must be configured into the IC697 PLC system using the MS-DOS or Windows programming software configuration function.
• Installation: Can be installed in any slot (except slot 1) in the main CPU rack.
• Power Requirements: Requires 5 Volts DC voltage from the system backplane and draws 1.4 Amps of current.
• Programmer Interface Specifications: The data rate of the programmer interface is 500 kilobytes per second and supports a maximum cable length of 50 feet.
