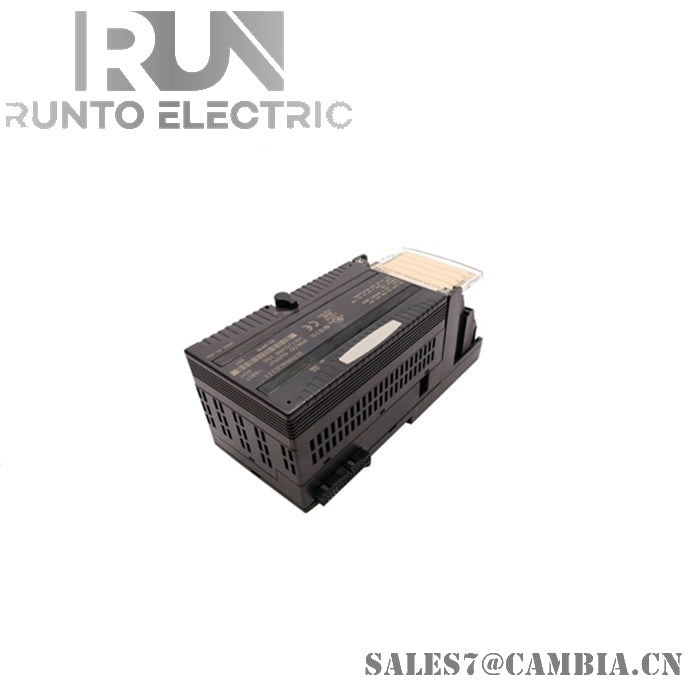

GE Fanuc IC200ALG230 VersaMax Analog Input Module

Description:
The IC200ALG230 is designed to interface with either four voltage inputs or four current inputs. It supports 12 bits of voltage per current and one group containing up to four single-ended channels. All inputs are also single-ended and share a common return. This module receives power from a power supply embedded into the backplane.

Features:
The IC200ALG230 is a VersaMax Analog Input module that can be snapped together to provide a compact node with a smaller footprint than typical control/IO combinations. It supports field wiring on carriers with two and three rows of terminals. Two onboard LED lights indicate module power status.

Specifications:

• Channels: 4 single-ended channels, one group.
• Voltage Range: -10 to +10 volts DC.
• Current Range: 4 - 20 mA.
• Update Rate: 0.4 ms.
• Input Filter Response: 5.0 ms.
• Power Consumption: 125mA from the +5V bus.
