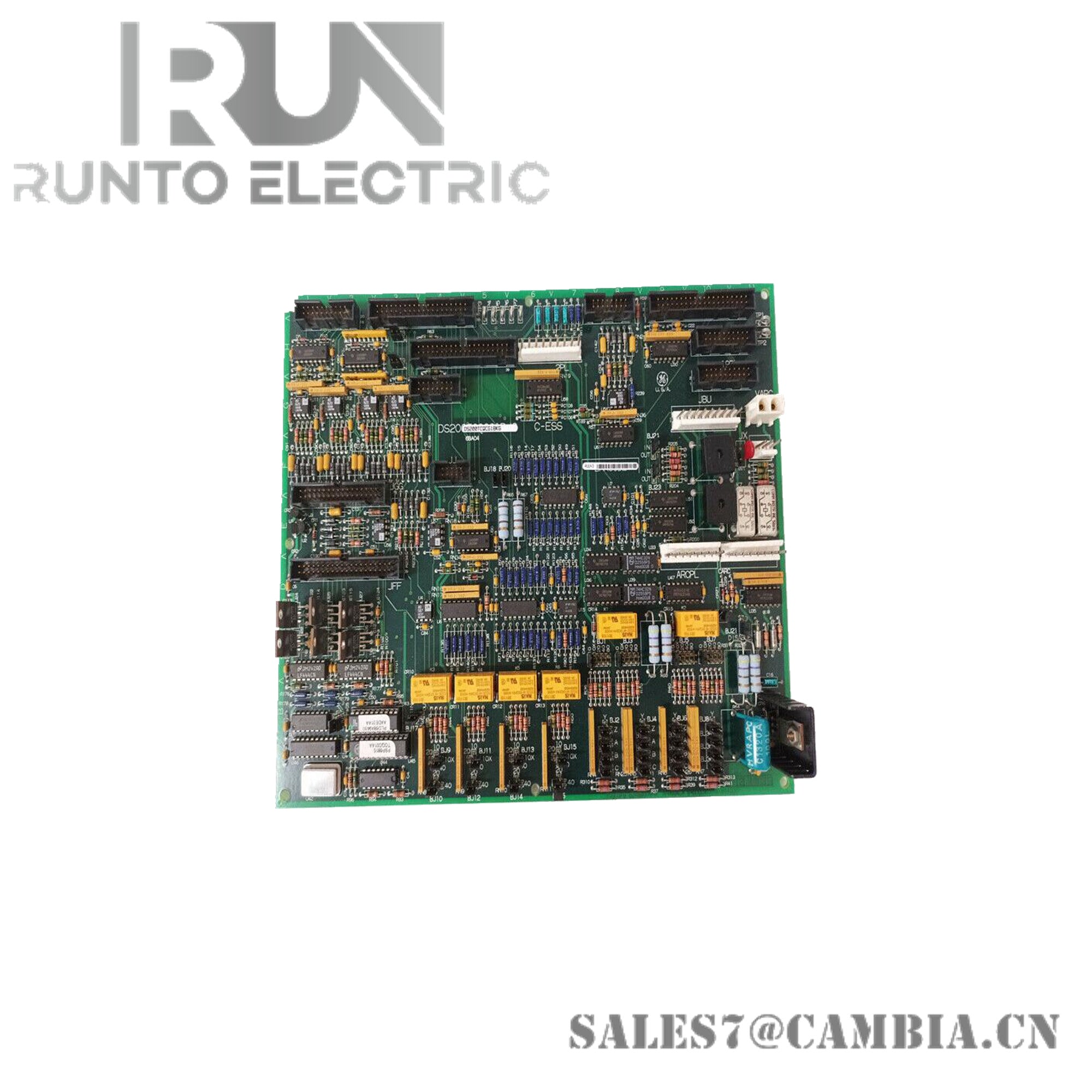

GE Fanuc DS200TCDAH1BHE Mark V Digital I/O Board

Technical Specifications：

• Manufacturer: General Electric
• Series: Mark V DS200
• Part Number: DS200TCDAH1BHE
• Functional Abbreviation: TCDA
• IONET Hardware: J2 and J3 IONET termination resistors - J4, J5, and J6 IONET ID
• Software: Used with I/O Configuration Editor in systems HMI

Product Description:

The GE Digital I/O Board, model DS200TCDAH1BHE, is equipped with several components to facilitate its functionality. It features 8 jumpers, an LED on the side of the board, and 2 3-pin connectors. The TCDA unit includes 1 block of 10 LEDs and 2 50-pin connectors. The DS200TCDAH1BHE also provides test points that enable qualified servicemen to conduct circuit testing.

Additionally, the DS200TCDAH1BHE is located in the digital I/O cores <Q11>, <Q51>, and <Q21> if present. It is responsible for processing digital contact input signals from the DTBA and DTBB terminal boards, as well as contact output signals (relay/solenoid) from the two TCRA boards. These signals are transmitted via the IONET to the TCQC board in <R1> and <R2> if <Q21> is installed, and the CTBA terminal board in <R5>.
