GE DS200PTBAG1BBA PCB Termination Board

Product Description：

The DS200PTBAG1BBA is a component of the Mark V system, one of several Speedtronic turbine control systems. Replacement parts for this system are available from AX Control. Developed and sold by General Electric, the Mark V is utilized for controlling industrial turbine systems.

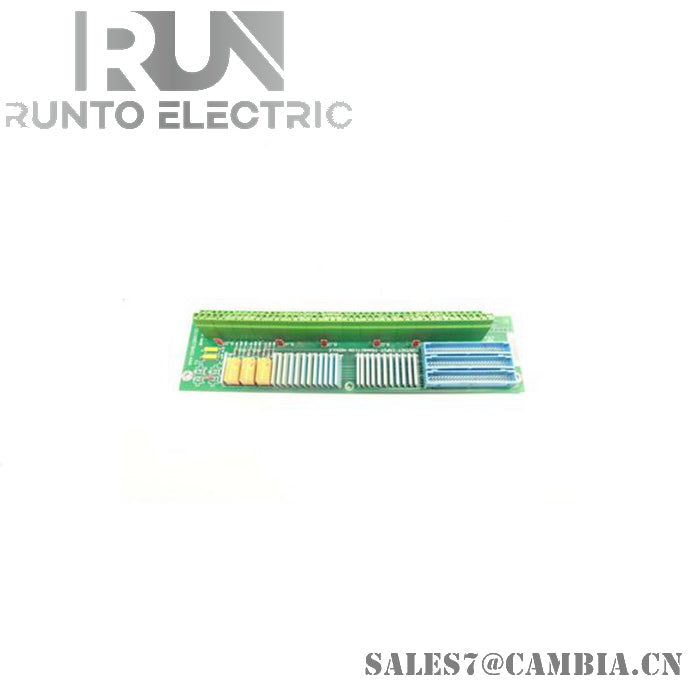

The DS200PTBAG1BBA is a multi-input and output termination board, featuring a longer length compared to its width. It is equipped with various input and output connectors, including four vertical pin header connectors, vertical pin connectors, a termination board with six screw connections, and a double termination board (green). The screw connectors are numbered from one to 79, and the board also includes metal oxide varistors, capacitors, resistors, and jumper switches. Factory drill holes are present in each corner, with two of them ringed with conductive material. The board is marked with its ID number, wiring and location codes, as well as connection codes for interfacing with other system boards. Additionally, it bears the GE logo.

The weight of the board is approximately 1.0 pound before packaging, which includes internal and external boxing for shipping. Static-reducing wrapping is utilized to safeguard static-sensitive products during transit.

Primarily, the DS200PTBAG1BBA serves as a termination board for the independent protective module core, offering overspeed protection and flame detection.

For further information about the DS200PTBAG1BBA, please refer to the original documentation from General Electric, such as manuals, user guides, and data sheets. These documents provide detailed instructions for installation and maintenance procedures.
