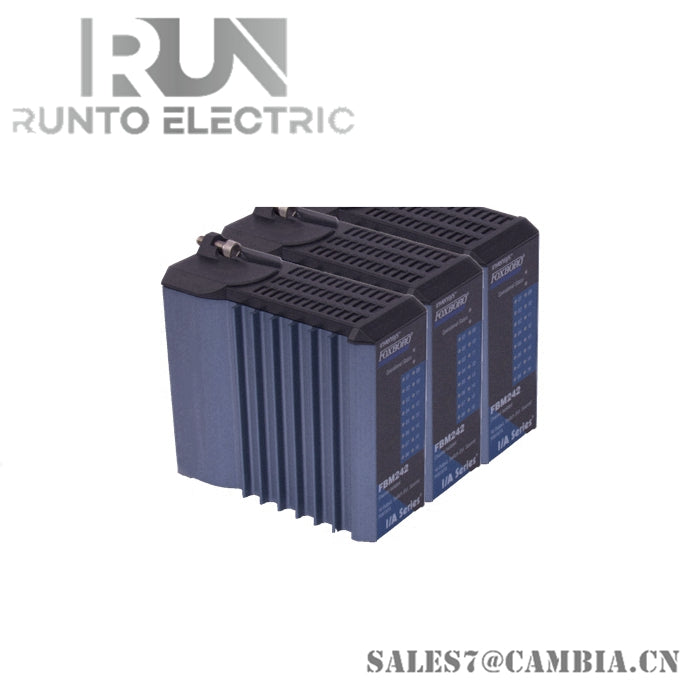

Foxboro FBM242 RH916TA Input/Output Module

Description:

The FOXBORO FBM242 RH916TA module provides analog input and output capabilities, enabling precise monitoring and control of process variables in industrial environments.

Specifications

• Input Channels: Typically includes 8 analog input channels.
• Output Channels: Generally includes 8 analog output channels.
• Input Voltage Range: 12-48 VDC
• Output Voltage Range: 5 VDC
• Dimensions: 10.4 cm x 4.5 cm x 11.4 cm
• Weight: 0.4 kg
• Operating Temperature Range: -20 to +50°C
• Accuracy: High-resolution conversion for accurate signal processing.

Features

• Discrete Outputs: Sixteen discrete outputs supporting voltages of 15-60 VDC, 120 VAC/125 VDC, and 240 VAC.
• Galvanic Isolation: Each input and output is galvanically isolated, with group isolation when used with external excitation.
• Rugged Design: Suitable for enclosure in Class G3 (harsh) environments.
• Programmable Logic: Executes Discrete I/O or Ladder Logic programs with configurable options such as Input Filter Time, Fail-Safe Configuration, and Sustained or Momentary Outputs.
• Visual Indicators: Light-emitting diodes (LEDs) incorporated into the front of the module provide visual indication of operational status and discrete states of the individual output points.
• Fieldbus Communication: Interfaces with redundant 2 Mbps Fieldbus for reliable communication.
