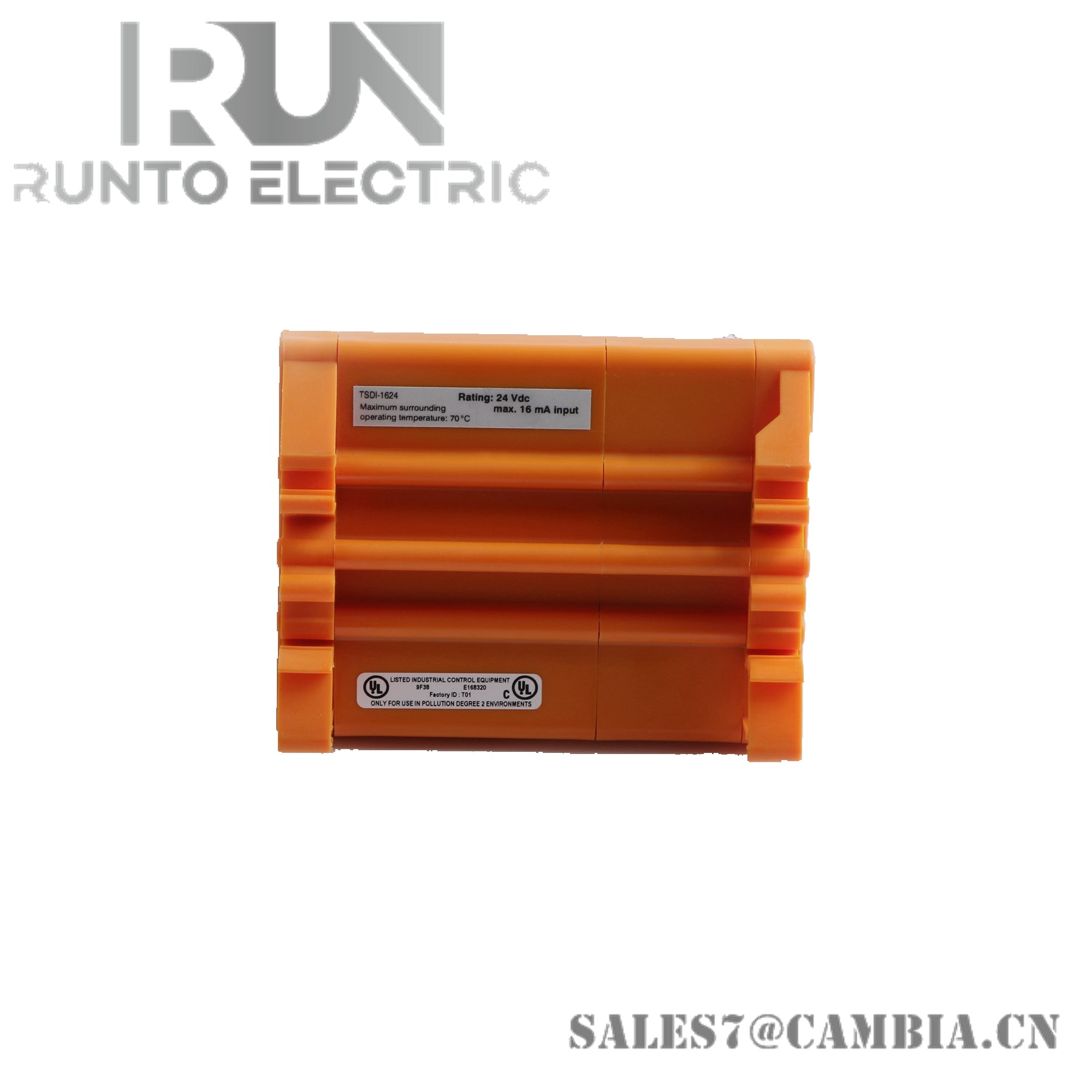

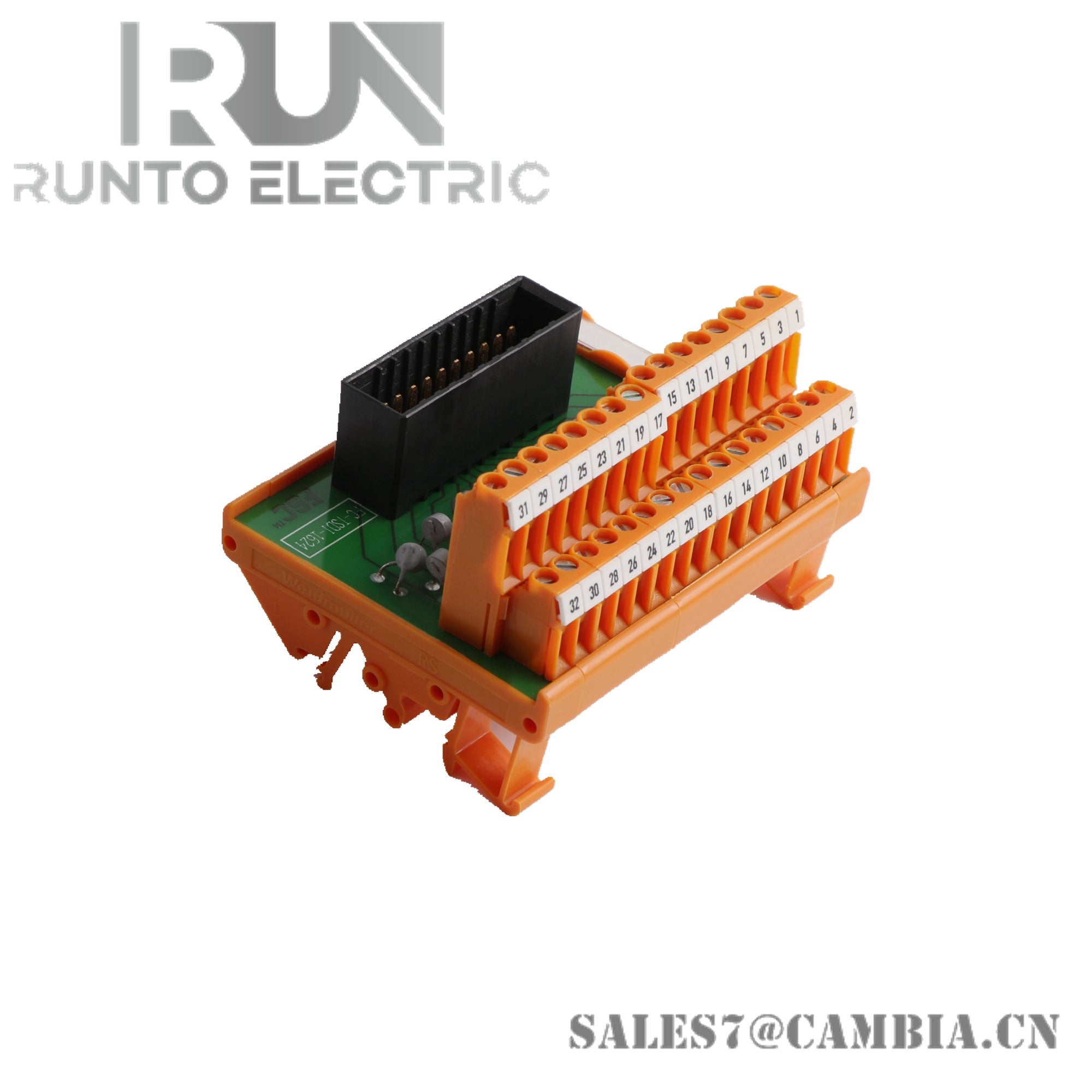

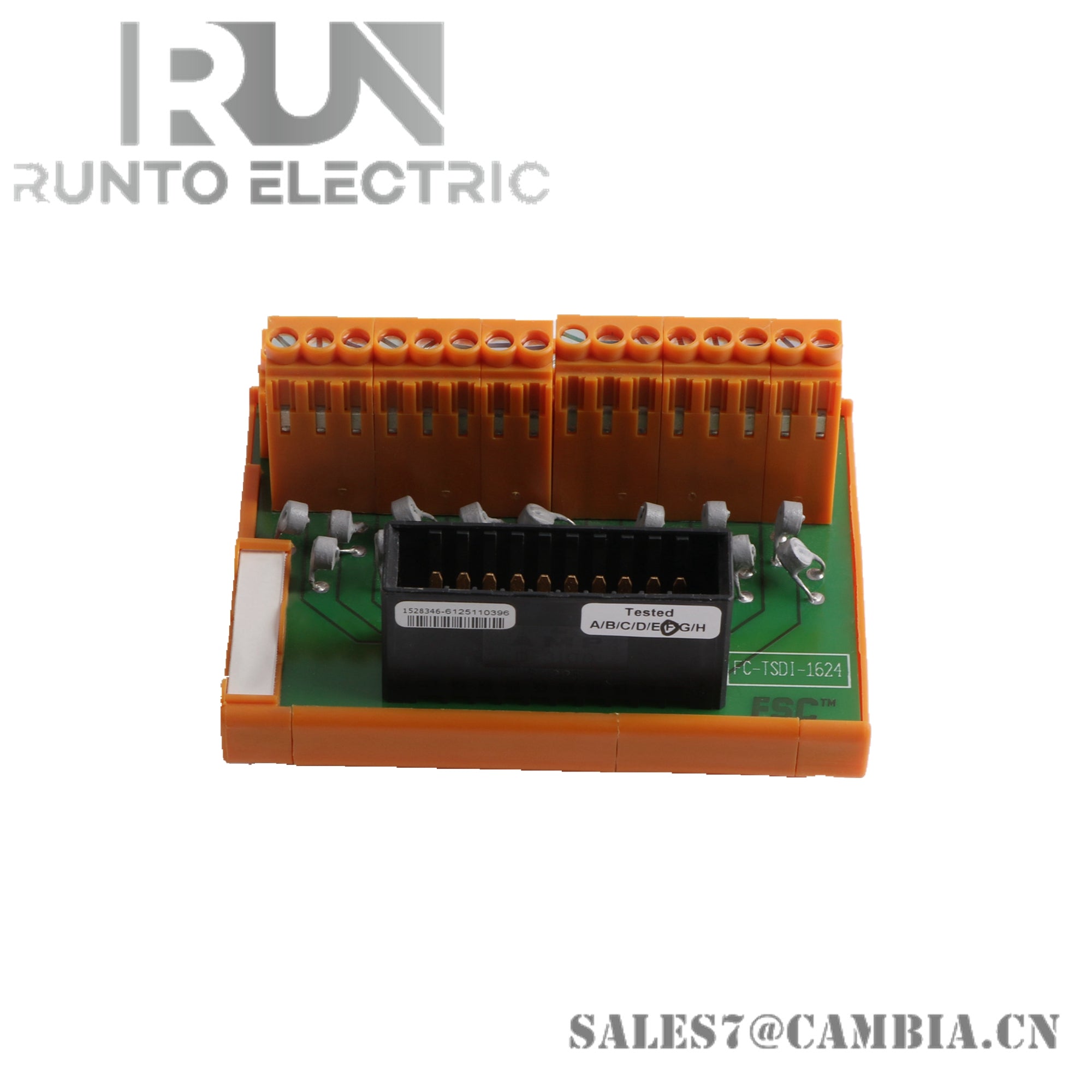

FC-TSDI-1624 | Honeywell | Digital Input Field Termination Assembly

Description

The Honeywell FC-TSDI-1624 module is designed to interface with digital input signals from Class I, Division 2 Hazardous Locations, ensuring safe and reliable operation in demanding industrial environments.

Specifications

• Number of Input Channels: 16
• Input Voltage: 24 VDC, -15% to +30%
• Input Current: ≤ 15 mA at 24 VDC
• Operating Temperature Range: -40°C to 70°C
• Dimensions: 90 mm x 70 mm x 58 mm
• Weight: 0.3 kg
• Approvals: CE, TUV, UL, CSA, FM
• Termination: Screw terminals, maximum wire diameter 2.5 mm² (AWG 14)

Features

• Dual Overvoltage Protection: Complies with DIN V 19250 and VDE V 0801 standards for enhanced protection.
• Undervoltage Alarm: Alerts when voltage drops below a set threshold, ensuring system integrity.
• Redundant Parallel Operation: Improves system reliability by enabling parallel operation.
• Serial Operation: Capable of creating a 48 VDC output.
• Optimum Protection: Safeguards against continuous overloads and short-circuiting.
• Convection Cooling: Features natural cooling without the need for forced ventilation.
• Mounting Flexibility: Can be mounted vertically or horizontally, offering installation flexibility.
