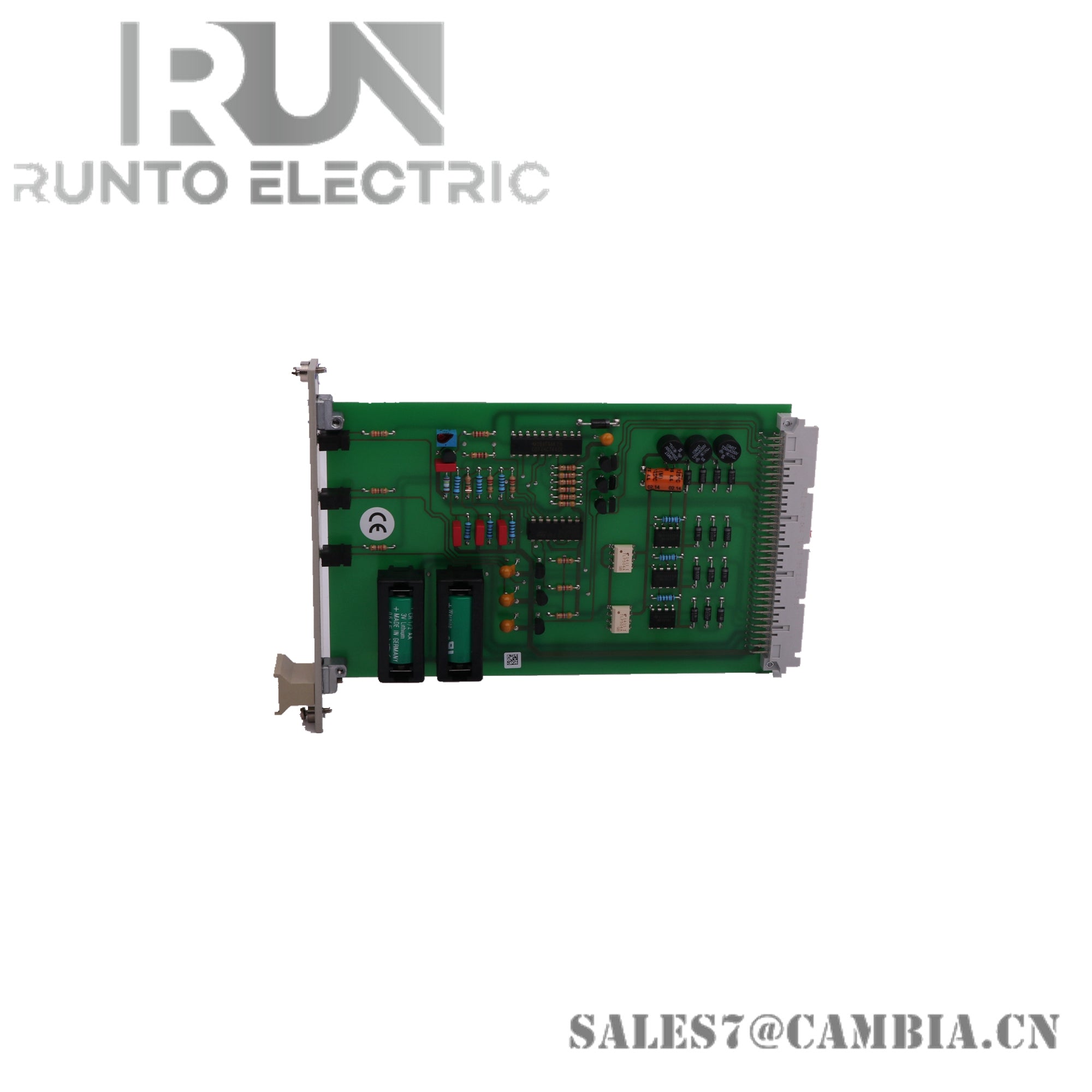

F7131 | HIMA | Power Supply Monitoring

Description:

The HIMA F7131 is a specialized power supply monitoring module designed for use with the PES H51q system. This module is essential for ensuring the reliability and safety of power supplies by monitoring the system voltage and providing necessary diagnostics.

Specifications:

• Functionality: Monitors the system voltage (5 V) generated by up to three power supplies.
• LED Displays: Features three LED displays on the front of the module for real-time status indication.
• Test Bits: Includes three test bits for use with central modules (F 8650 or F 8651) for diagnostic displays and operation within user programs.
• Additional Monitoring: Supports monitoring functions for additional power supplies through the use of an assembly kit (B 9361), with the capability to monitor the status of power supply modules via three 24 V outputs (PS1 to PS3).
• Shipping Weight: 5 kg
