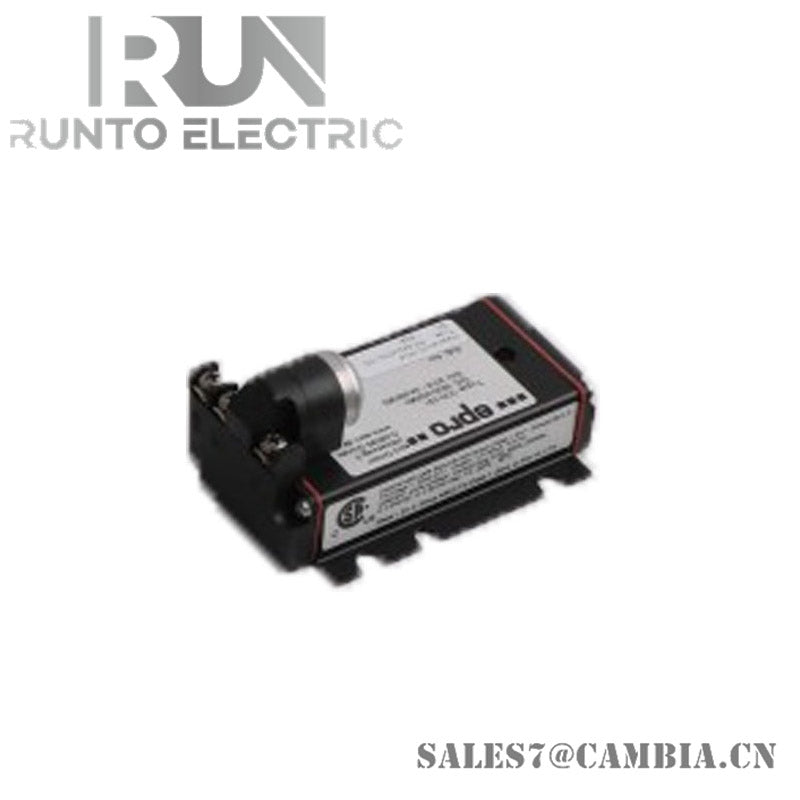

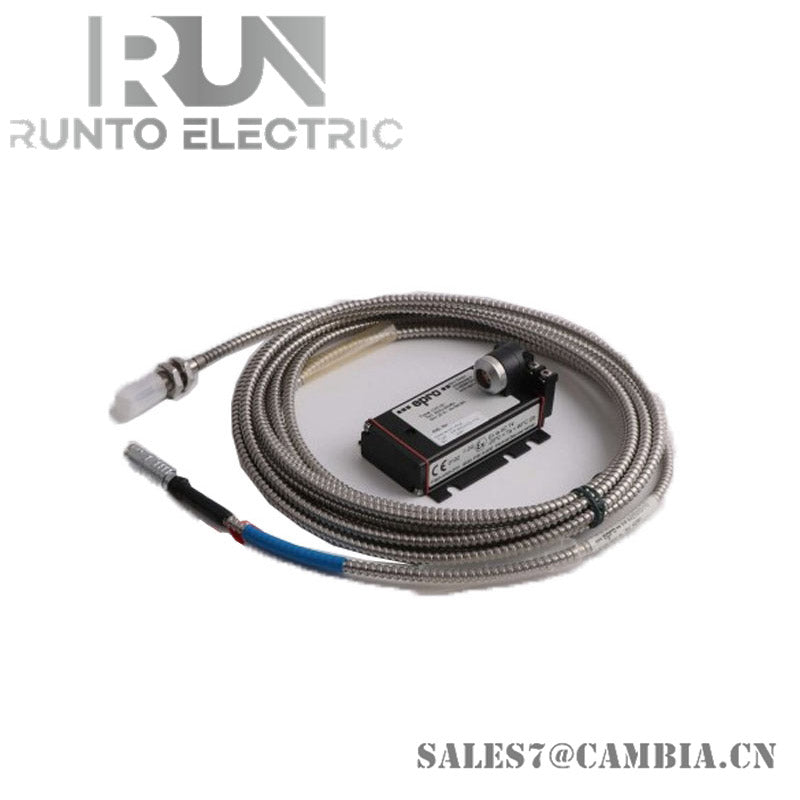

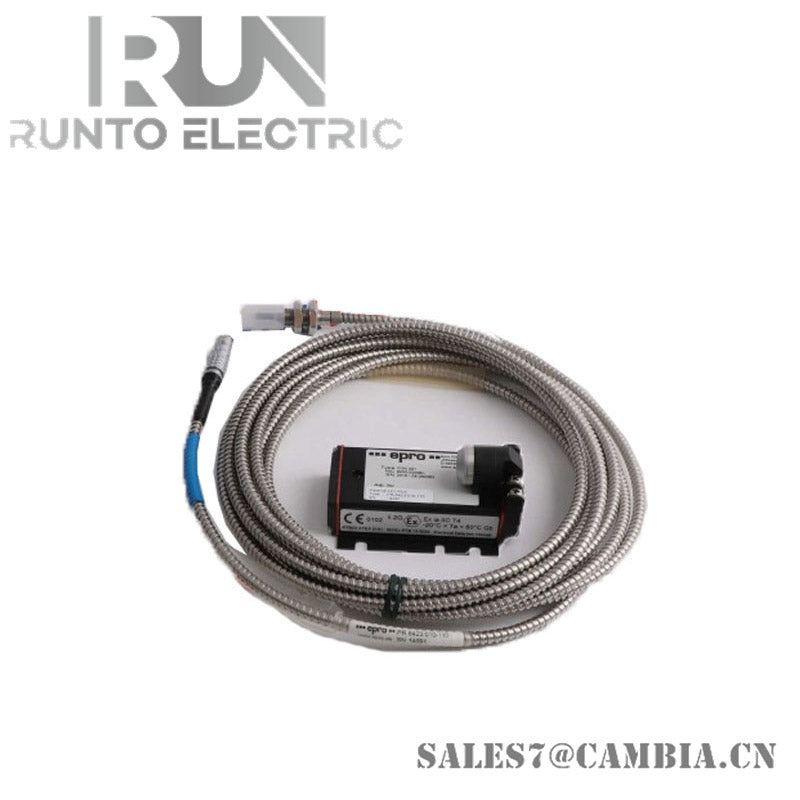

EPRO PR9268/617-100-N Electrodynamic Velocity Sensor

Sensor Specifications:

• Sensor Type: Electrodynamic velocity sensor
• Measuring Range: 0 to 1000 mm/s
• Accuracy: ±0.5% of reading
• Repeatability: ±0.2% of reading
• Frequency Range: 0.1 Hz to 10 kHz
• Insulation Class: IP65
• Weight: 1.8 kg

Additional Specifications:

• Sensitivity (±5%) @ 80 Hz/20°C/100 kOhm: 28.5 mV/mm/s (723.9 mV/in/s)
• Measurement Range: ±1,500µm (59,055 µin)
• Frequency Range (±3dB): 4 to 1,000 Hz (240 to 60,000 cpm)
• Operating Temperature: -20 to 100°C (-4 to 180°F)
• Humidity: 0 to 100% Non-Condensing
