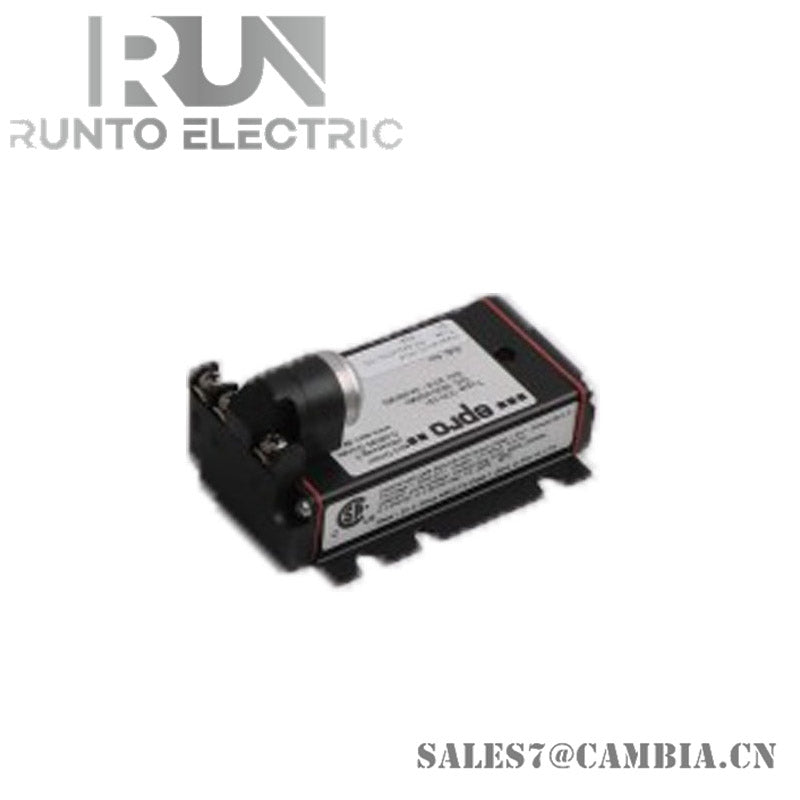

EPRO PR6480/061-030+CON021 Eddy Current Signal Converter

Features:

• Designed for critical turbo machinery applications such as steam, gas, and hydro turbines, compressors, pumps, and fans.
• Measures radial and axial shaft displacement, position, eccentricity, and speed/key.

Specifications:

• Dynamic Performance: Frequency Range (-3 dB) is 0 to 20000 Hz with a Rise Time of <15 μs.
• Operating Temperature Range: -30 to 100°C (-22 to 212°F).
• Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F).
• Protection Class: IP20.
• Supply Voltage Range: -23V to -32V (Output Range -4V to -20V), -21V to -32V (Output Range -2V to -18V).
• Housing Material: LMgSi 0.5 F22.
• Weight: ~120 grams (4.24 oz).
• Mounting: 4 Screws M5x20 (Included in Delivery).
• Connections: Transducer - Self-Locking Lemo-Plug, Supply/Output - Screw Terminal Type (max. 1.5mm² wire).

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone enquire from us, pls click this sales7@cambia.cn.
