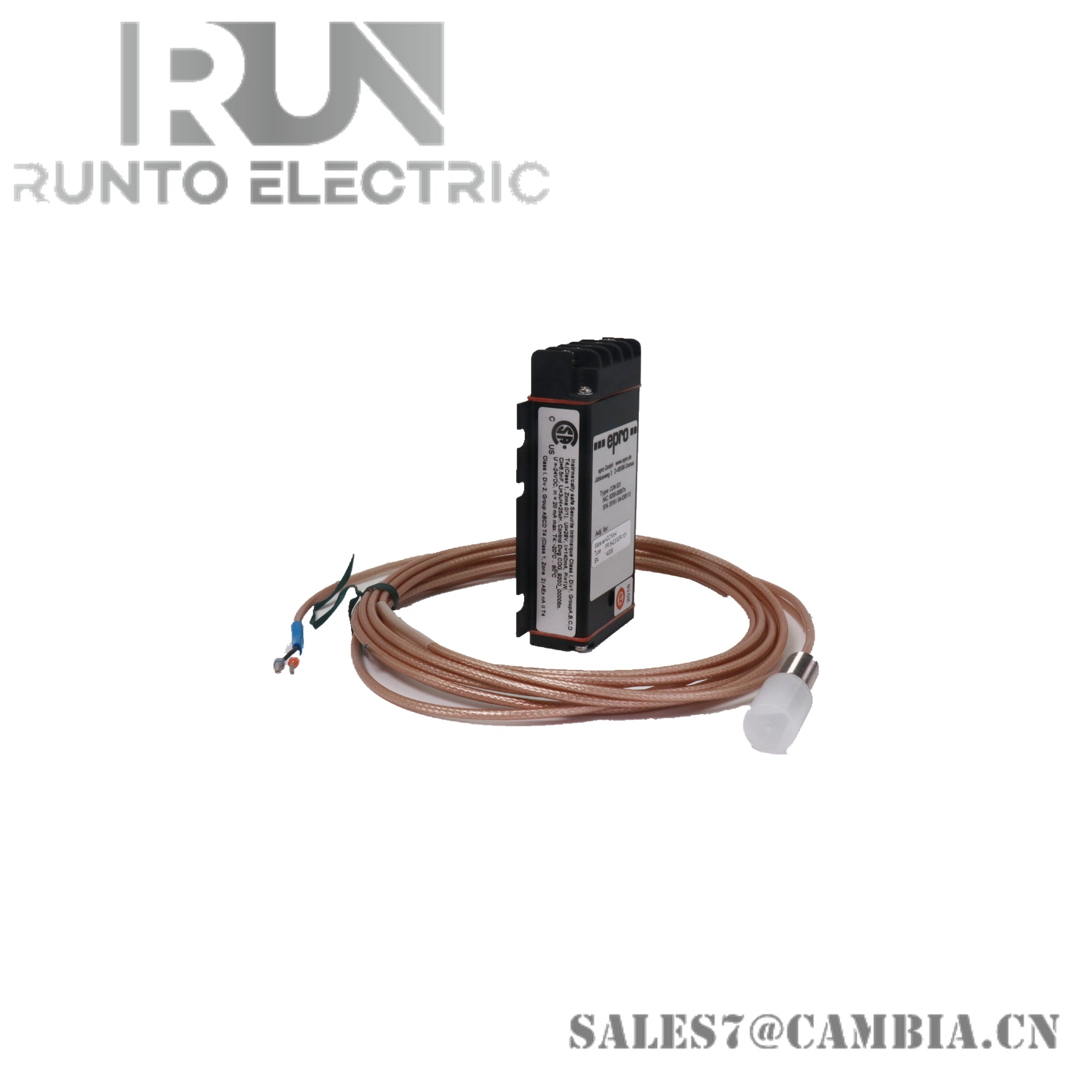

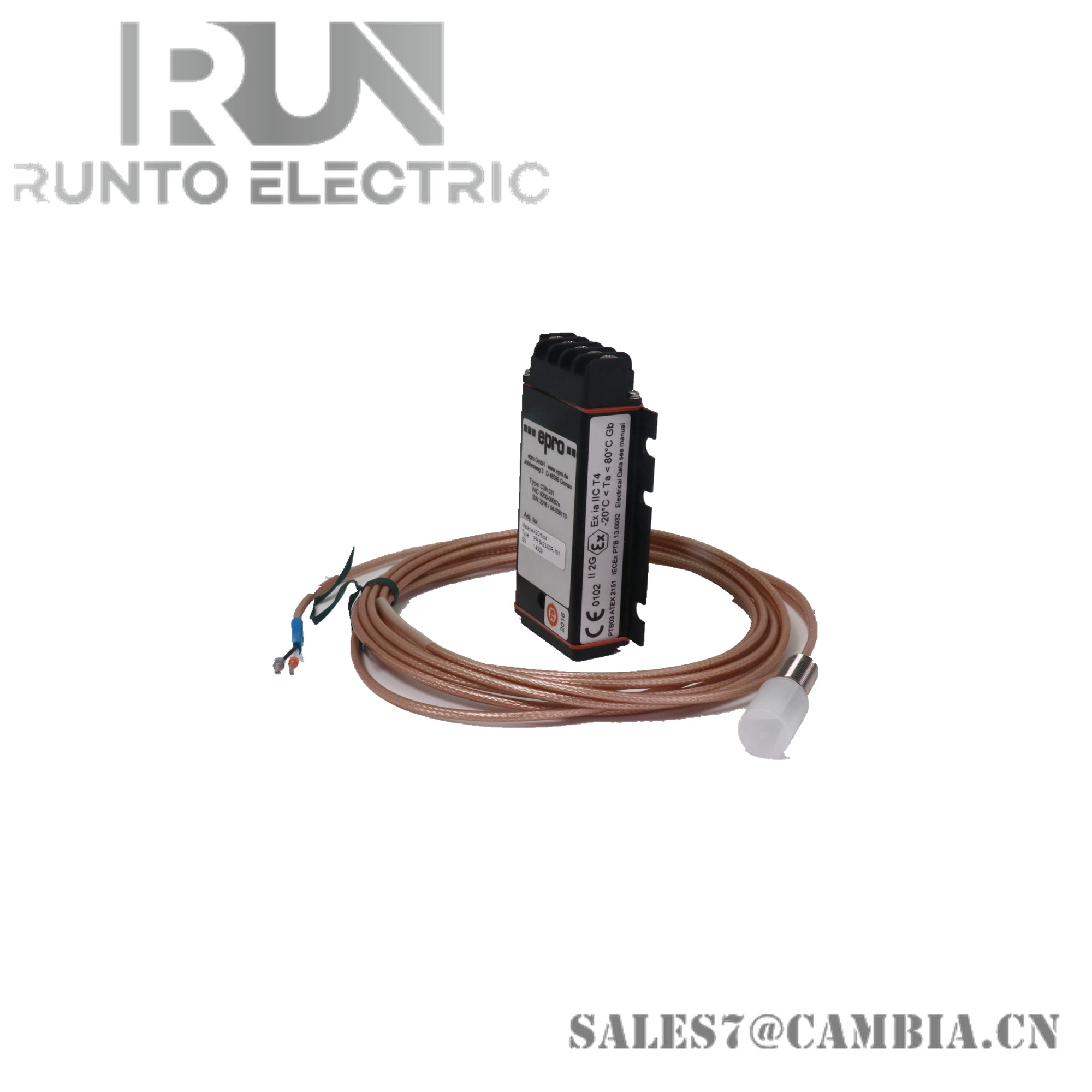

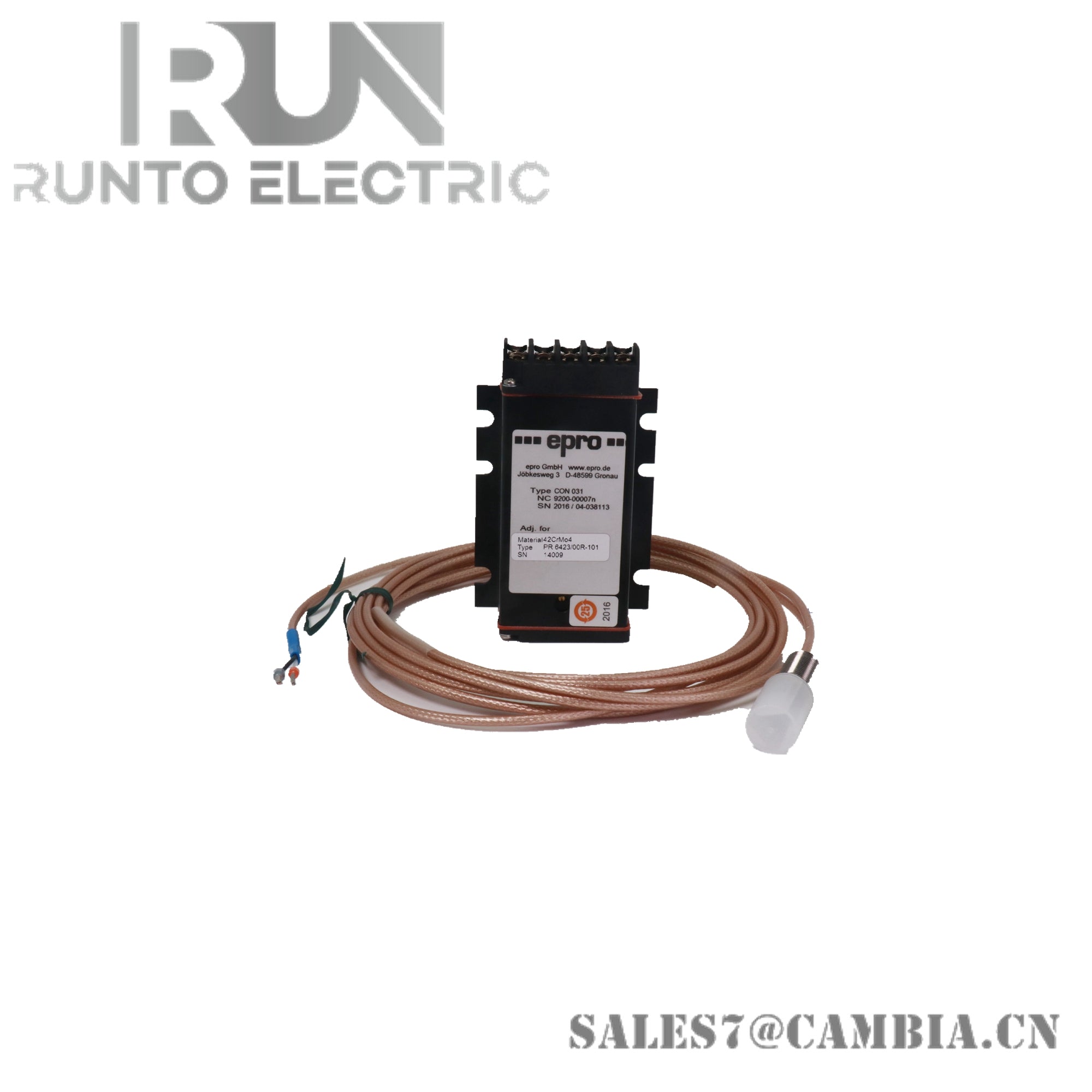

Epro PR6424/006-030 16mm Eddy Current Sensor

Description

The Epro PR6424/006-030 module is used to measure radial and axial shaft dynamic displacement, position, eccentricity, and speed in critical turbomachinery such as steam, gas, and hydro turbines, compressors, pumps, and fans.

Specifications

• Type: Eddy Current Sensor
• Measurement Range: 0 to 1,000 µm (0 to 0.039 inches)
• Sensitivity/Linearity: 4 V/mm (101.6 mV/mil) ± 1.5%
• Air Gap (Center): Approx. 2.7 mm (0.11 inches)
• Shaft Diameter: ≥80 mm (3.15 inches)
• Operating Temperature Range: -35 to 150°C (-31 to 302°F)
• Weight: 200 grams (7.05 ounces) with 1-meter cable (no armor)
• Protection Class: IP66, IEC 60529
• Shock and Vibration: 5g @ 60 Hz @ 25°C (77°F)
• Target Material: Ferromagnetic Steel (42 Cr Mo4 Standard)
• Maximum Surface Speed: 2,500 m/s (98,425 ips)

Features

• High Sensitivity: Capable of detecting minute vibrations for early fault detection.
• Wide Operating Temperature Range: Suitable for various industrial environments.
• Robust Design: Built to withstand tough industrial conditions.
• Modbus RTU Communication: Ensures compatibility with various control systems.
• 4-20 mA Output: Standard output for easy integration with control systems.
