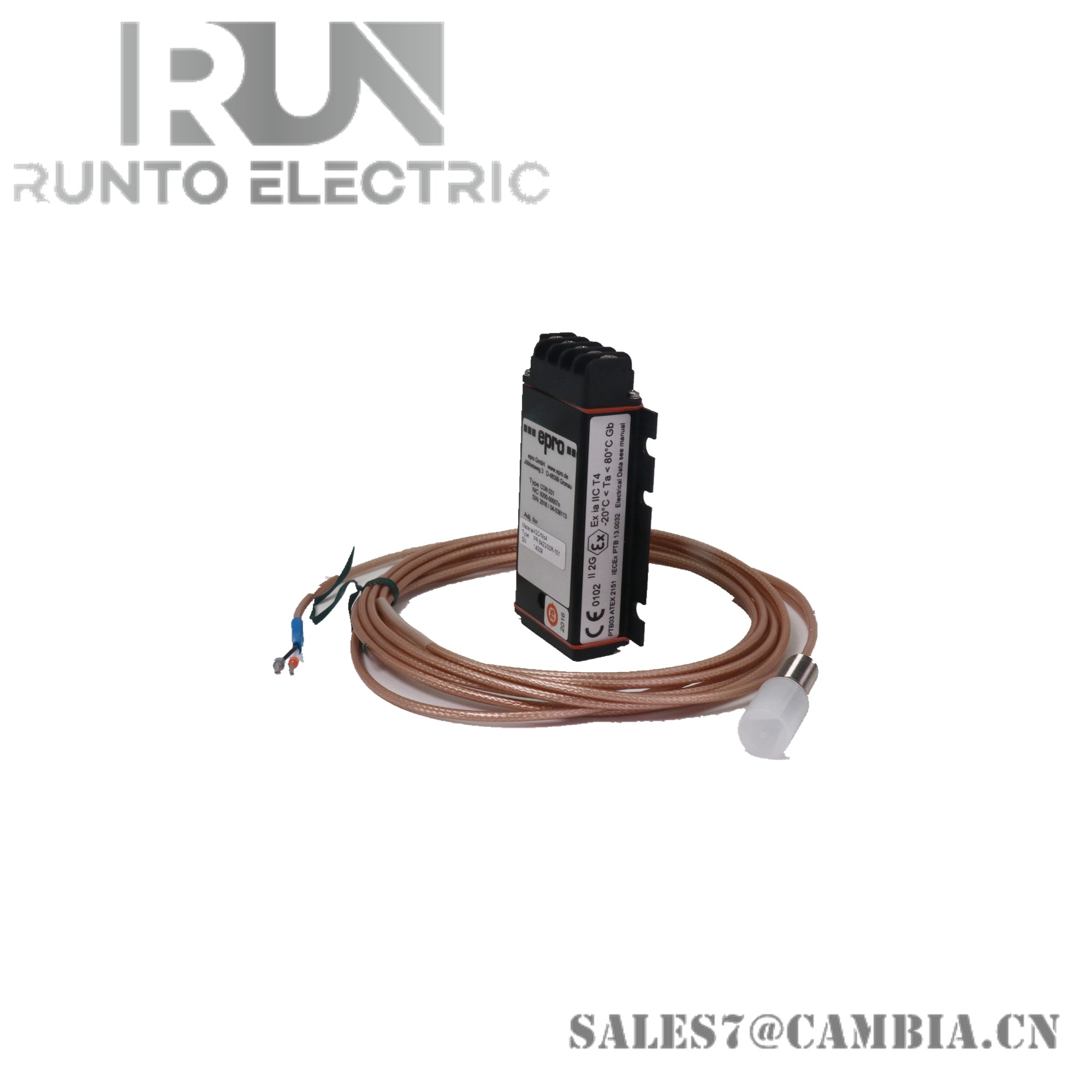

EPRO PR6423/10R-030 CON021 Eddy Current Sensor

PR6423/10R-030 Sensor Specifications:

• Linear Measurement Range: 2 mm (80 mils)
• Initial Air Gap: 0.5 mm (20 mils)
• Incremental Scale Factor (ISF): 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F)
• Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)
• Minimum Shaft Diameter: 25 mm (0.79”)
• Operating Temperature Range:
  • Sensor incl. 1m Cable: -35 to +200°C (-31 to 392°F)
  • Cable & Connector: -35 to +150°C (-31 to 302°F)
• Weight (Sensor with 1m Cable): Approx. 100 grams (3.53 oz)

CON021 Signal Converter Specifications:

• Frequency Range (-3 dB): 0 to 20000 Hz
• Rise Time: <15 μs
• Operating Temperature Range: -30 to 100°C (-22 to 212°F)
• Supply Voltage Range:
  • For Output Range -4V to -20V: -23V to -32V
  • For Output Range -2V to -18V: -21V to -32V
• Weight: 120 grams (4.24 oz)

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY
