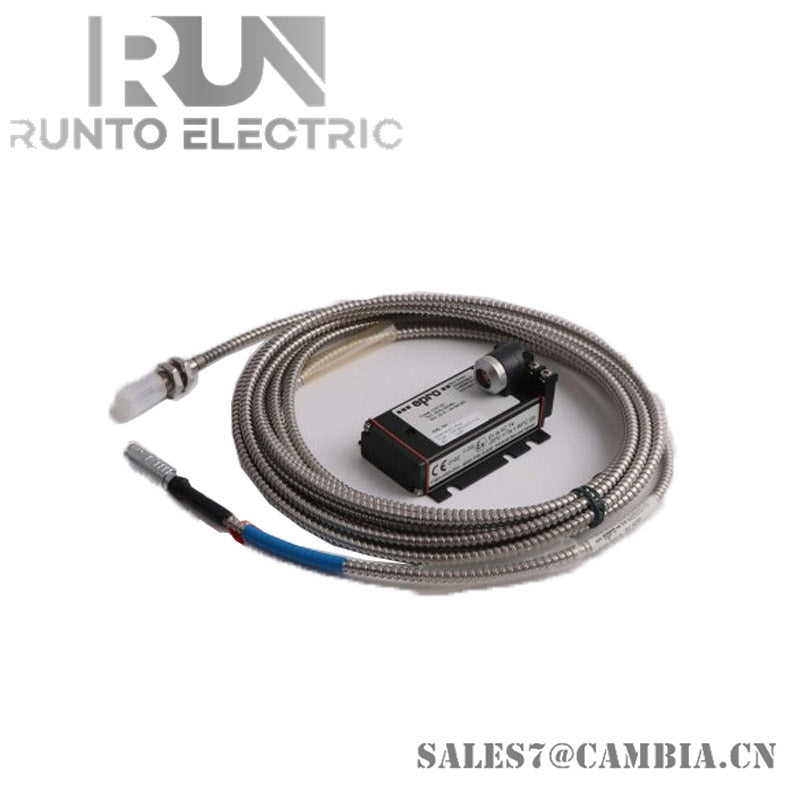

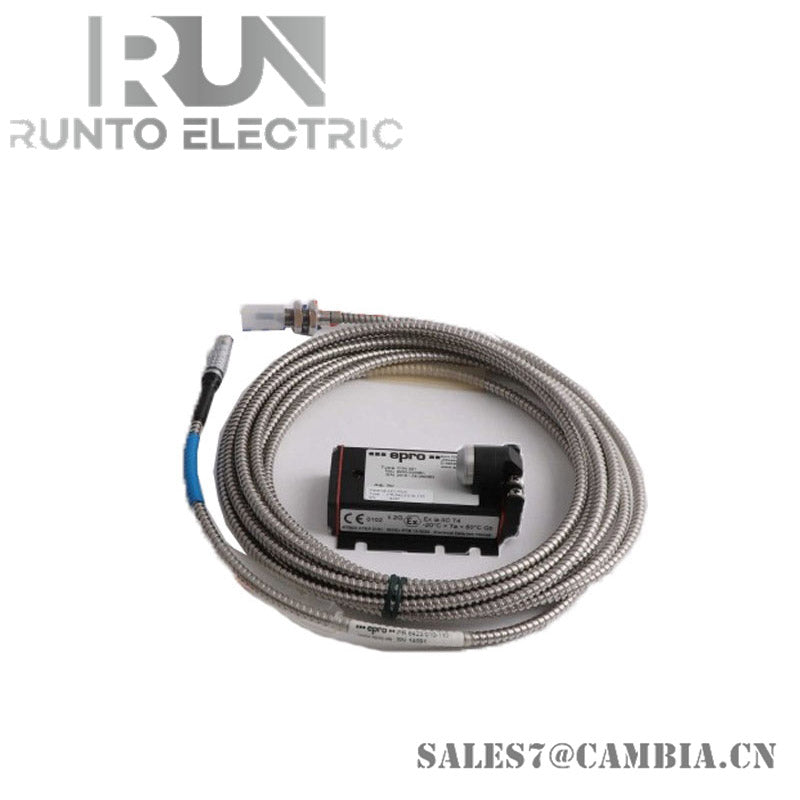

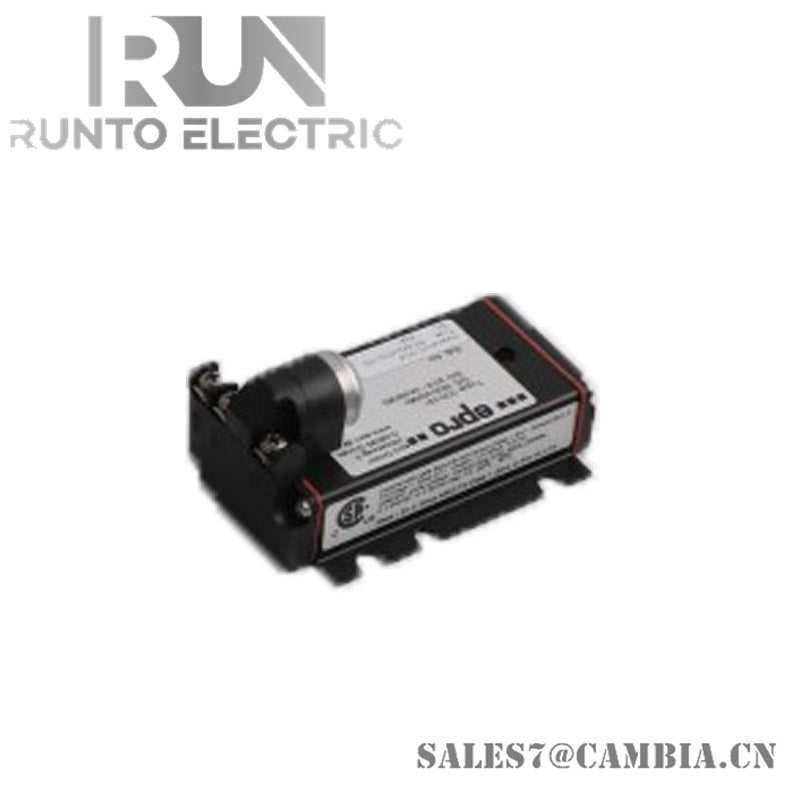

Epro PR6423/003-010-CN+CON021 Eddy Current Sensor

Performance:

• Linear Measurement Range: 2 mm (80 mils)
• Initial Air Gap: 0.5 mm (20 mils)
• Incremental Scale Factor (ISF) ISO: 8 V/mm (203.2 mV/mil) ± 5% @ temperature range 0 to 45°C (+32 to +113°F)
• Deviation from Best Fit Straight Line (DSL): ± 0.025 mm (± 1 mil) @ temperature range 0 to 45°C (+32 to +113°F)

Measuring Target:

• Minimum Shaft Diameter: 25 mm (0.79”)
• Target Material (Ferromagnetic Steel): 42CrMo4 (AISI/SAE 4140) Standard (Other materials available on request)

Environmental, General:

• Protection Class: IP66, IEC 60529
• Operating Temperature Range:
  • Sensor incl. 1m Cable: -35 to +200°C (-31 to 392°F)
  • Cable & Connector: -35 to +150°C (-31 to 302°F)
• Material:
  • Sensor Tip: PEEK (Polyether Ether Ketone)
  • Case: Stainless Steel
  • Cable: PTFE (Polytetrafluoroethylene)
  • Connector: Brass, nickel-plated
• Weight (Sensor with 1m Cable): Approx. 100 grams (3.53 oz)

NEW AND ORIGINAL ITEM IN STOCK

WITH ONE YEAR WARRANTY

For inquiries, please contact: sales7@cambia.cn
